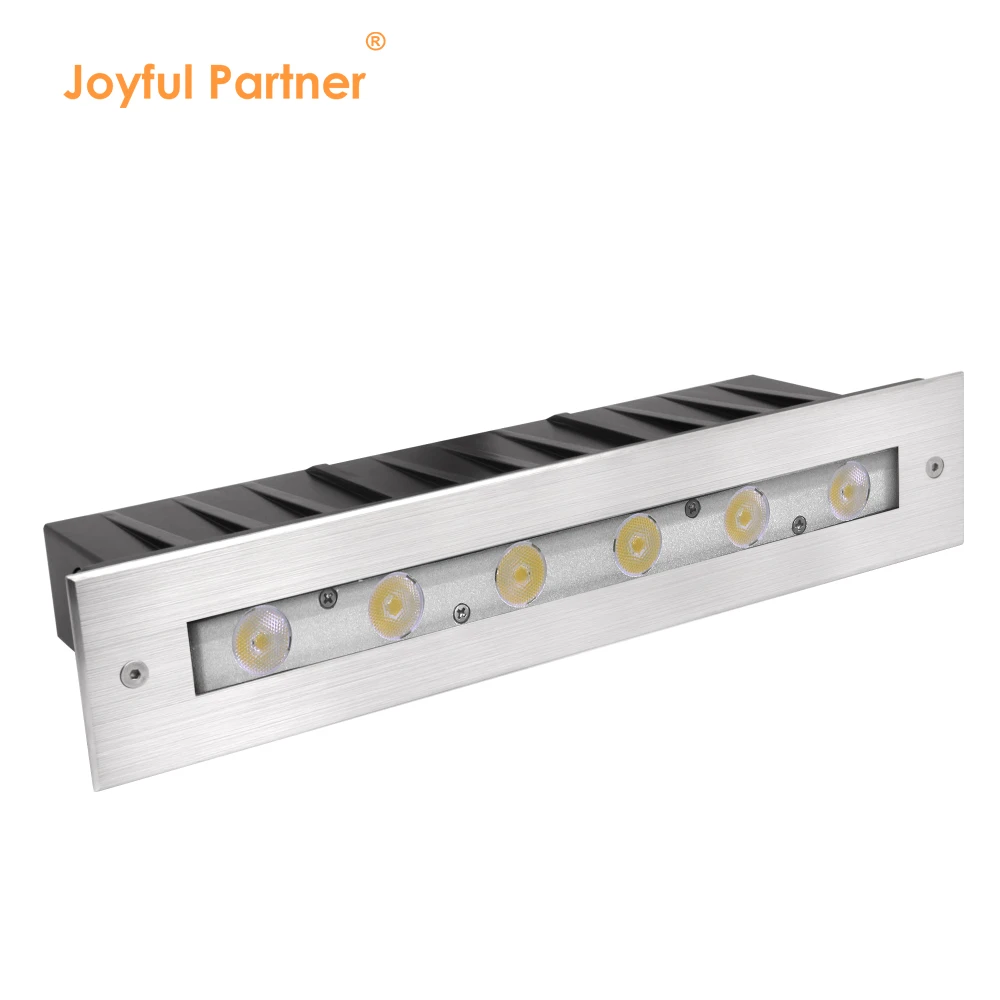

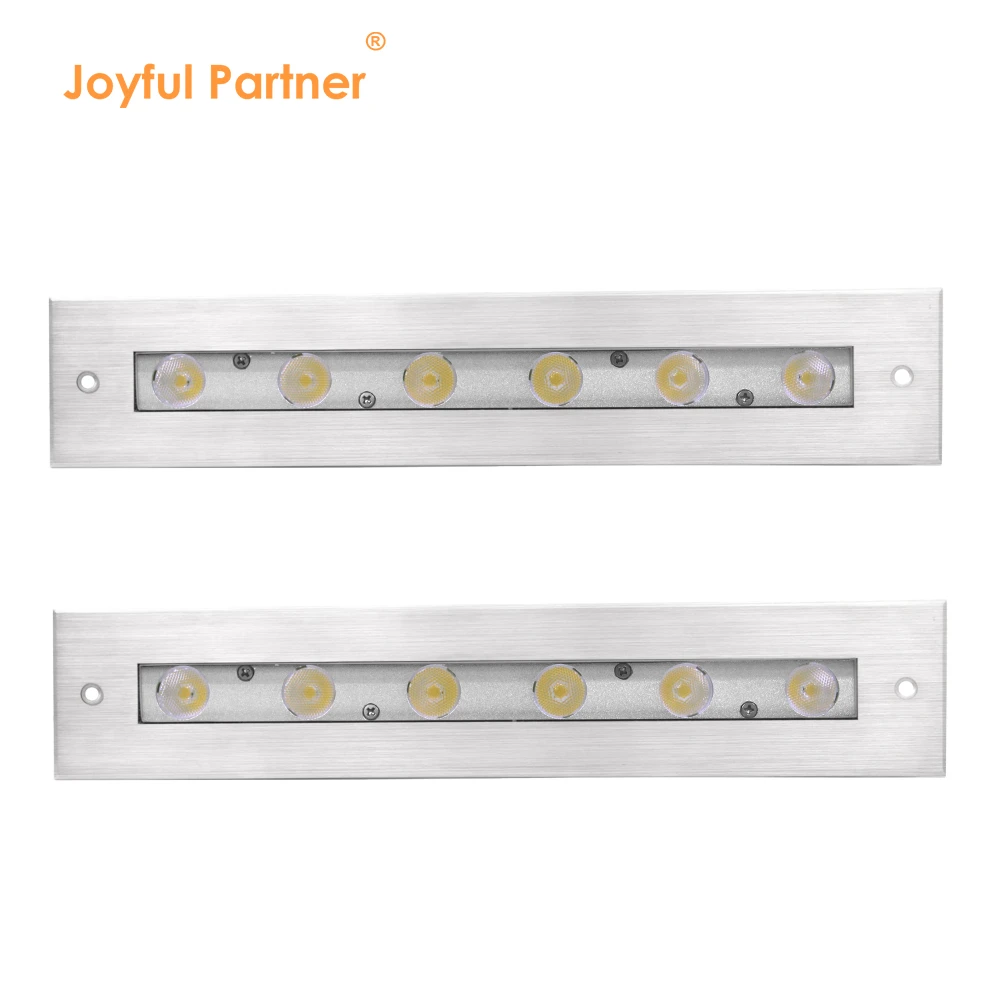

Underwater Linear Light 316 Stainless Steel DMX 512 RGB 12W DC24V Asymmetrical Lens RGB3IN1 Wall Recessed Underwater LED Linear Light/Underwater Linear Inground Light
Waterproof Rating: IP68
Material: Molding shaped 304# or 316L* stainless steel
Model: 92046X Series
Certification: IP68, RoHS, CE

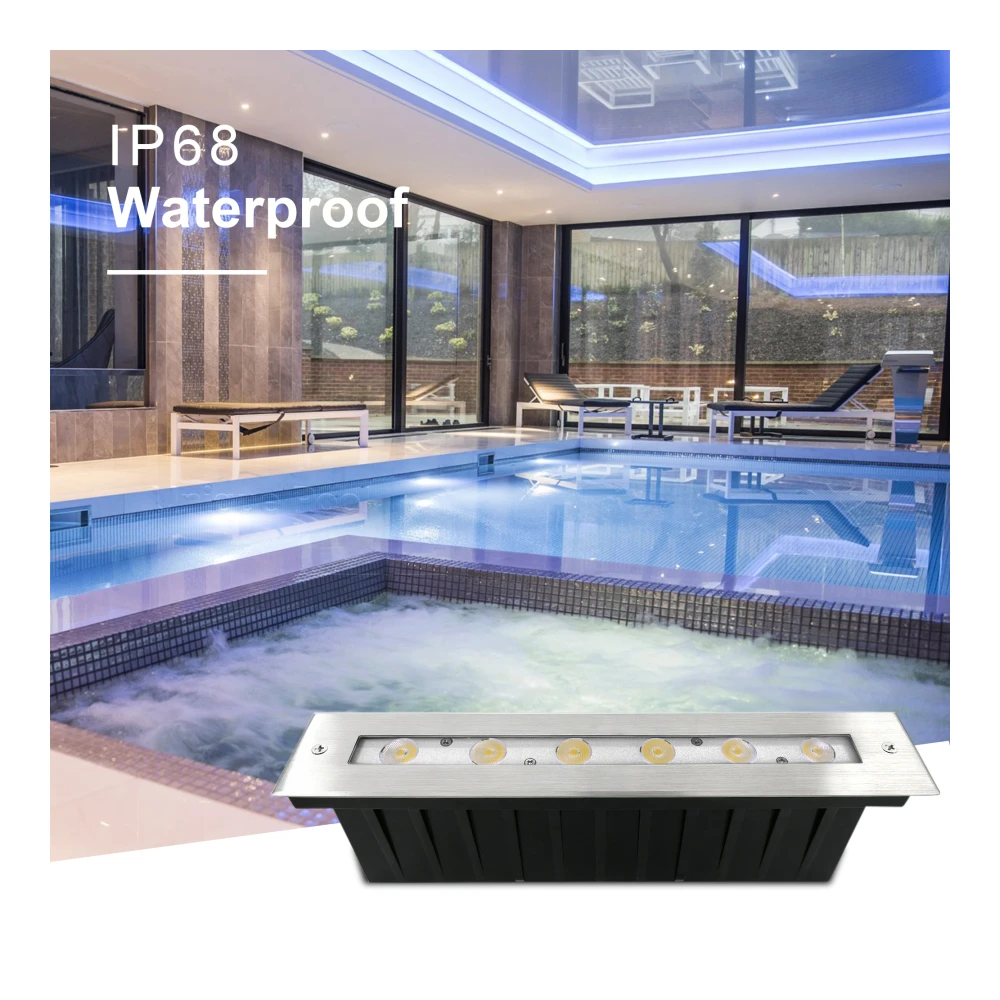

Professional wall-recessed underwater linear light designed for high-end architectural pool and water feature illumination.
Constructed with superior 304# or 316L* stainless steel for maximum corrosion protection in submerged environments.
Features 8mm thick step tempered glass with a strong loading capacity of up to 1840kgs for structural safety.
Offers precise beam control with high-efficiency optical lenses (≥85%), available in both symmetrical and asymmetrical versions.
Engineered with IP68 submersible protection and durable silicone seals for reliable operation up to 1.0m depth.
Powerful linear lighting output from 6W to 18W, supporting single color and dynamic RGB 3in1 lighting effects.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
920461(AS) |
6*1W LED |
8°/15°/20°/30°/60° |
6.6W |
DC24V |
08 |
|
920462(AS) |
6*2W LED |
8°/15°/20°/30°/45°/60° |
12.5W |
DC24V |
08 |
|
920466(AS) |
6*3W RGB3in1 |
25°/30°/45°/60° |
18.2W |
DC24V |
08 |

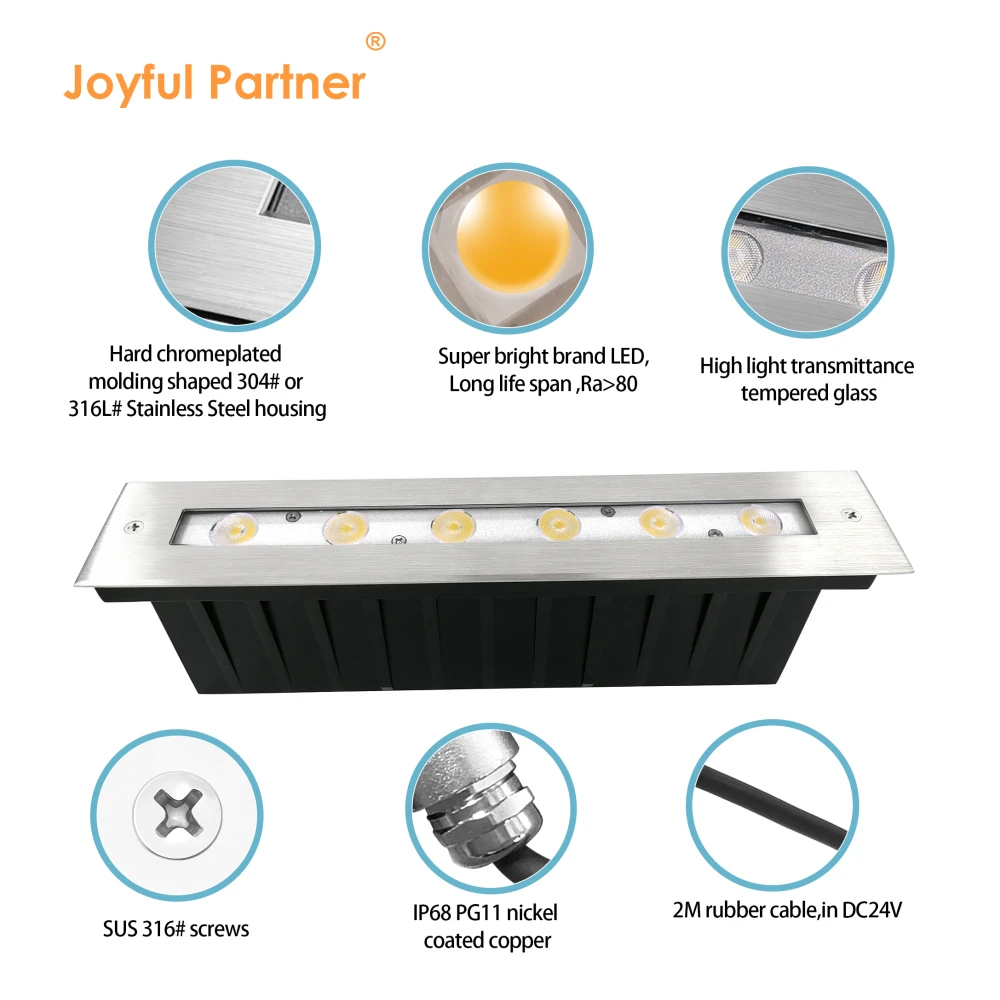

Material Specifications Table
|
Item |
Description |
|
Front cover&Housing |
Molding shaped 304# or 316L* stainless steel |
|
Glass |
Step tempered glass T=8mm |
|
Lens |
High quality optical lens, efficiency≥85% |
|
Cable gland |
IP-68 PG-11 copper and nickel coated |
|
MCPCB |
Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
|
Loading Capacity |
Exert force area of ø10=660kgs, ø30=1840kgs |
|
Driver |
Constant current output. Single color LED=1-circuit output. RGB 3in1 LED=3-circuits output. |
|
Application environment |
Temperature of water between -20℃ ~ 40℃ less than 1.0 meter depth. |
|
Power cable |
H05RN-F 2x0.75mm² L=2m(for Single color) / H05RN-F 4x0.75mm² L=2m(for RGB) |
|

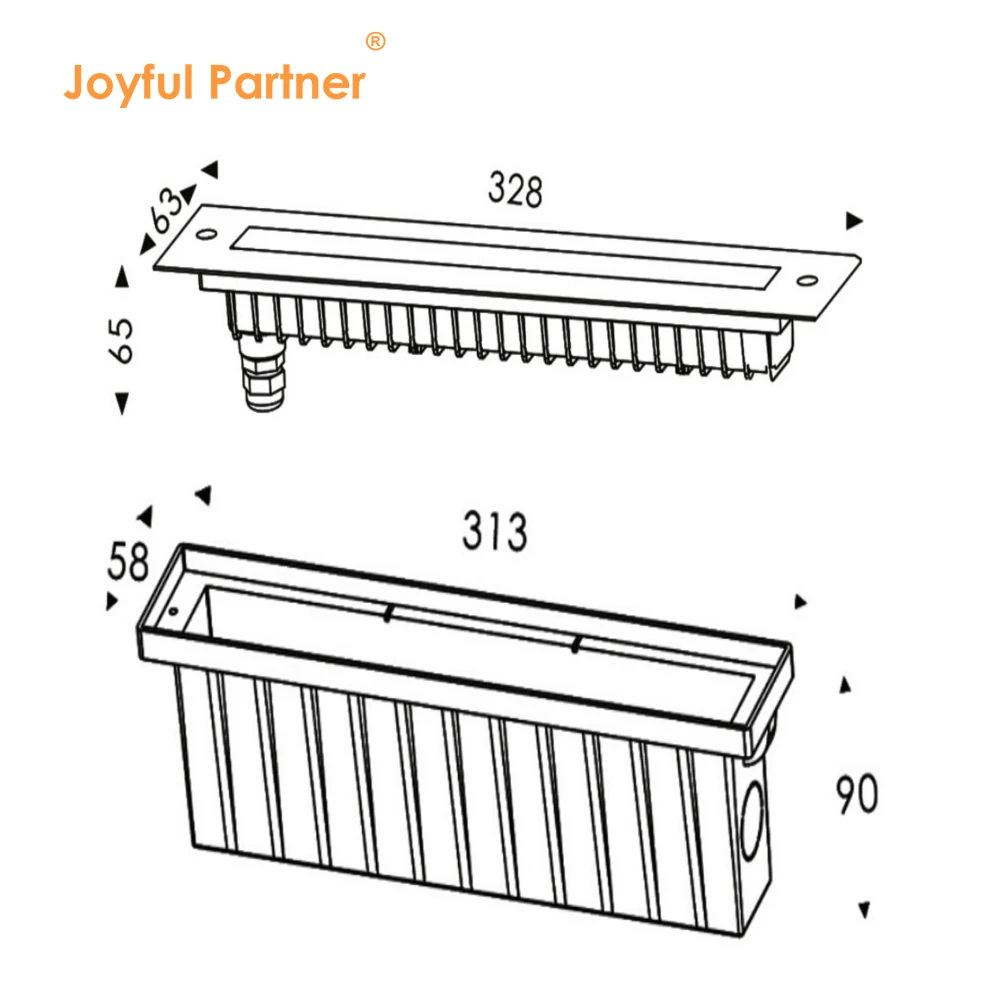

Mounting sleeve |
Plastic |
