Square Tree LED Garden Spot Light Waterproof IP65 Aluminum Outdoor Lawn Lamp

12 pieces
MOQ
$18.99/pieces
Price
Square Tree LED Garden Spot Light Waterproof IP65 Aluminum Outdoor Lawn Lamp
Features Gallery Product Description Request A Quote
Features
Specifications
Lifespan (hours): 50000
Working Time (hours): 50000
Item Type: Led Garden Spot Light
Optional Accessory: Spike Or Base

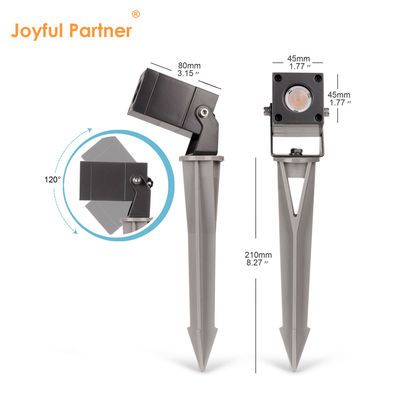

Lamp Size: 45mm*45mm*112mm
Light Source: 1*1W
Highlight:

Square LED Garden Spot Light

,

Tree LED Garden Spot Light

,

IP65 Outdoor Lawn Lamp

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Joyful Partner
Certification: CE,ROHS
Model Number: S83311
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 Piece/Pieces per Month
Product Description
Aluminum Square Garden  IP65 Outdoor Lawn  Waterproof Tree Spot Light

Item No.
Light source
Lens beam angle(°)
Consumption(watt)
Input Voltage(V)
Ik rate
S83311
1*1W
8°/15°/20°/30°/45°/60°
1
DC12V/DC24V
2
S83311H
1*1W
8°/15°/20°/30°/45°/60°
1.3
AC100-240V
2
S83312
1*3W
8°/15°/20°/30°/45°/60°
3
DC12V/DC24V
2
S83312H
1*3W
8°/15°/20°/30°/45°/60°
3.5
AC100-240V
2
S83316
1*3W RGB3in1
30°/45°/60°
3.2
DC12V/DC24V
2
S83305COB
1*5W
15°/30°/45°
5
DC24V/100-240V
2

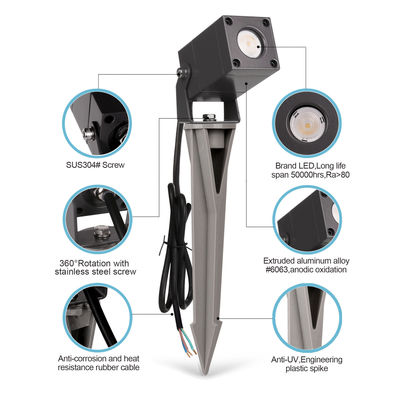

Material specifications

Housing&Front cover
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
Glass
Tempered glass.T=3mm
Lens
Optical lens,effciency≥85%
Cable gland
IP68,PG9 nickel coated copper
Gasket
Tooling shaped seal
LED
Epistar or CREE,Ra>80
PCB
Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk
Driver
Constant current output
single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
Operating temperature
(-20℃~40℃)
Power cable
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage)
H05RN-F4*0.75mm²L=1m(for RGB)
Spike
PVC
Optional accessory
Honeycomb

Antiglare hood(Aluminum)
1. Brand LED high lumen, energy saving, soft light,
2. Anti-oxidation all-aluminum housing,
3. IP65/IP66 Waterproof,
4. PWM/0-10V/DALI/TRIAC dimmable,

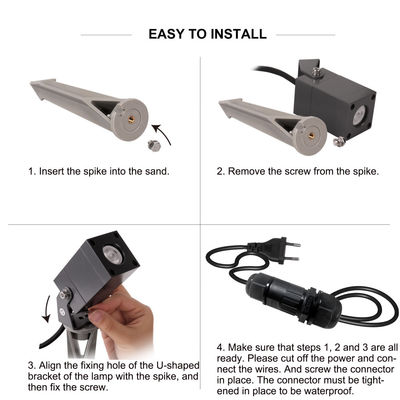

5. Base Mounting,U-style bracket or with spike,
6. Easy to install and operate.
