Product Details:
|
Working Time (hours): | 50000 | Product Weight(kg): | 0.9 |
---|---|---|---|
Item Type: | LED Garden Spot Light | Consumption: | 10 Watt |
Front Cover: | Aluminum And Tempered Glass | Port: | Any Port |
Highlight: | Adjustable LED Garden Spot Light,LED Garden Spot Light 10 Watt,IP65 Outdoor Garden Spike Light |
Item No.
|
Light Source
|
Lens Beam Angle(°)
|
Consumption (watt)
|
Input Voltage(V)
|
IK Rate
|
B83310COB B83510COB
|
1*10W CREE
|

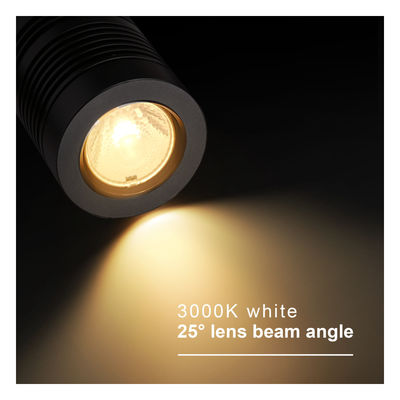

15°/25°/38°/60°
|
10
|
DC12V/DC24V
|
4
|
B83310COB B83510COB
|
1*10W CREE
|
15°/25°/38°/60°
|
11
|
AC100-240V
|
4
|

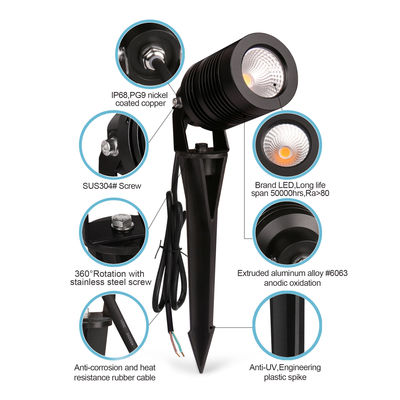

Material specifications
|
|
|
Housing
|
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
|
|
Glass
|
Tempered glass.T=3mm
|
|
Lens
|
Optical lens,effciency≥85%
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
Gasket
|
Tooling shaped seal
|
|
LED
|
CREE COB LED,Ra>80
|
|
Driver
|
Constant current output
|
|
Spike
|
PVC(grey or black)
|
|
Mounting base
|
anodic oxidation or outdoor powder painting
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) |
|
Optional accessory
|
Honeycomb
|
|
Antiglare hood
|
1. PWM/0-10V/DALI/TRIAC dimmable,

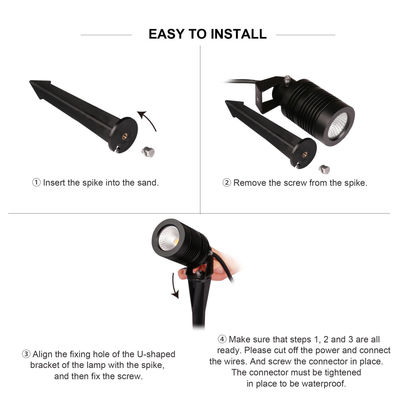

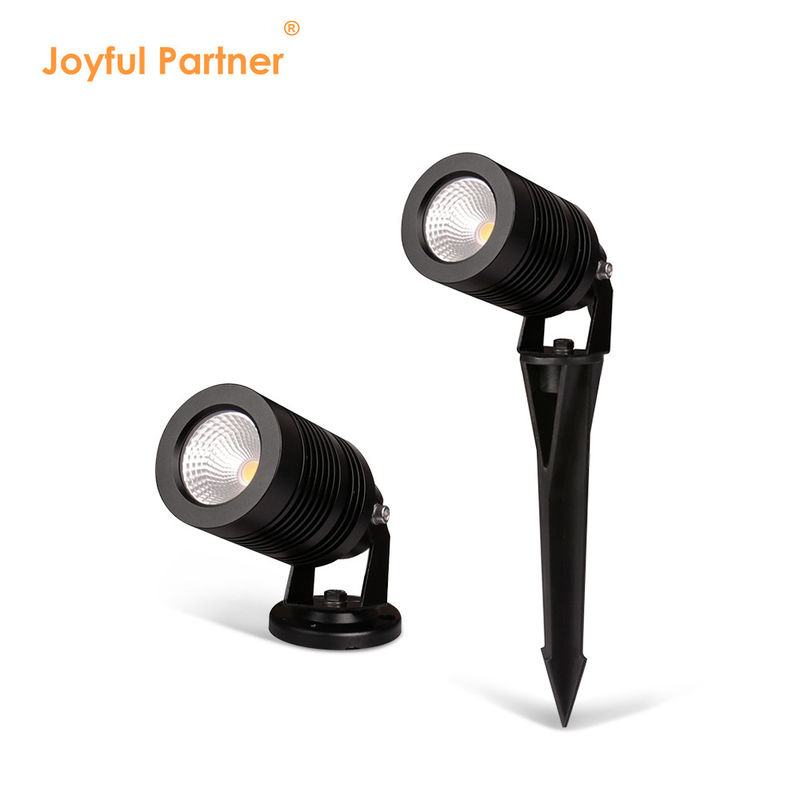

2. Installed easily by mounting base,U-style bracket or spike.
3. Housing color customizable.
