Product Details:
|
Light Color: | Single Color | Lens: | Optical Lens,effciency≥85% |
---|---|---|---|
Usage: | Outoors Patio Pathway Landscape Garden | Material: | Extruded Aluminum Alloy #6063 |
Highlight: | IP66 LED Garden Spot Light,ROHS LED Garden Spot Light,Outdoor LED Ball Lamp |
Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
B83306COB
B83506COB |
1*6W CREE
|
15°/25°/38°/60°
|
6
|
DC12V/DC24V
|
4
|
B83306COB
B83506COB |
1*6W CREE
|
15°/25°/38°/60°
|
6.5
|
AC100-240V
|
4
|

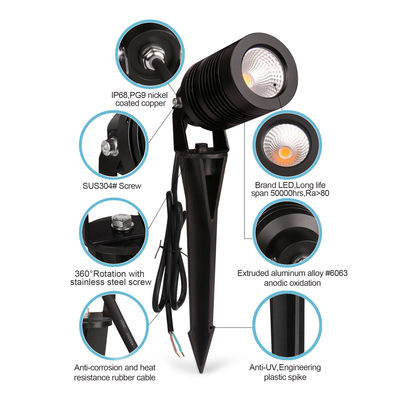

Material specifications
|
|
|
Housing
|
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
|
|
Glass
|
Tempered glass.T=3mm
|
|
Lens
|
Optical lens,effciency≥85%
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
Gasket
|
Tooling shaped seal
|
|
LED
|
CREE COB LED,Ra>80
|
|
Driver
|
Constant current output
|
|
Spike
|
PVC(grey or black)
|
|
Mounting base
|
Anodic oxidation or outdoor powder painting
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) |
|
Honeycomb
|
Optional Parts
|
|
Antiglare hood
|
Optional Parts
|
