Item No.
|
Light source
|

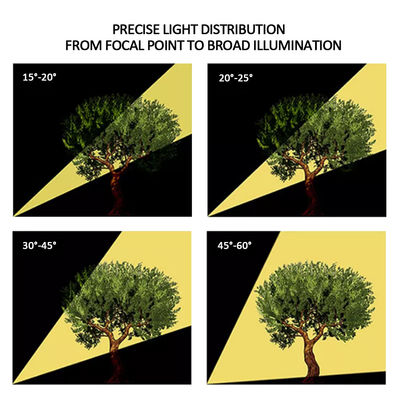

Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
S83311
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1
|
DC12V/DC24V
|
2
|
|
S83311H
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1.3
|
AC100-240V
|
2
|
|
S83312
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3
|
DC12V/DC24V
|
2
|
|
S83312H
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3.5
|
AC100-240V
|
2
|
|
S83316
|
1*3W RGB3in1
|
30°/45°/60°
|
3.2
|
DC12V/DC24V
|
2
|
|
S83305COB
|
1*5W
|
15°/30°/45°
|
5
|
DC24V/100-240V
|
2
|
|
Material specifications
|
|
|
|
Housing&Front cover
|
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
|
|
|
Glass
|
Tempered glass.T=3mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
|
Gasket
|
Tooling shaped seal
|
|
|
LED
|
Epistar or CREE,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk |
|
|
Driver
|
Constant current output
single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) H05RN-F4*0.75mm²L=1m(for RGB) |
|
|
Spike
|
PVC
|
|
|
Antiglare hood
|
aluminum (Optional)
|
|
|
Honeycomb
|
Optional
|
|
