Product Details:
|
| Beam Angle(°): | 8°/15°/25° /30° /45°/60° /90° | CRI (Ra>): | 80 |
|---|---|---|---|
| Lifespan (hours): | 50000 | Item Type: | LED Garden Spot Light |
| Front Cover: | Aluminum And Tempered Glass | Port: | Guangzhou/Shenzhen |
| Highlight: | Modern LED Garden Spot Light,LED Garden Spot Light Aluminum,Ip65 LED Spike Light |
||
|
Item No.
|
Light Source
|
Lens Beam Angle(°)
|
Consumption |
Input Voltage
|
IK Rate
|
|
83311
83511
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1
|
DC12V/DC24V
|
2
|
|
83311H
83511H
|
1*1W
|
8°/15°/20°/30°/45°/60°
|
1.3
|
AC100-240V
|
2
|
|
83312
83512
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3
|
DC12V/DC24V
|
2
|
|
83312H
83512H
|
1*3W
|
8°/15°/20°/30°/45°/60°
|
3.2
|
AC100-240V
|
2
|
|
83316
83516
|
1*3W RGB3in1
|
30°/45°/60°
|
3.2
|
DC12V/DC24V
|
2
|
|

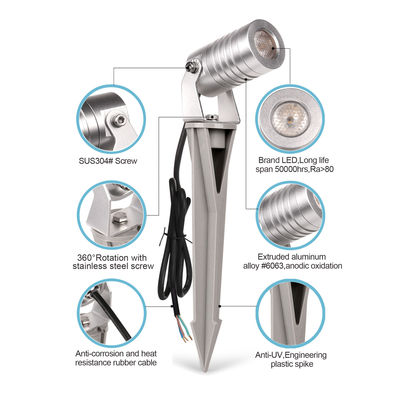

Material specifications
|
|
|
|
Housing
|
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
|
|
|
Glass
|
Tempered glass.T=3mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
|
Gasket
|
Tooling shaped seal
|
|
|
LED
|
Epistar or CREE,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk
|
|
|
Driver
|
Constant current output
single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Spike
|
PVC(grey or black)
|
|
|
Mounting base
|
anodic oxidation or outdoor powder painting aluminum
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage)
H05RN-F4*0.75mm²L=1m(for RGB)
|
|
|
Optional accessory
|
Honeycomb
|
|
|
Antiglare hood
|
||
