Product Details:
|

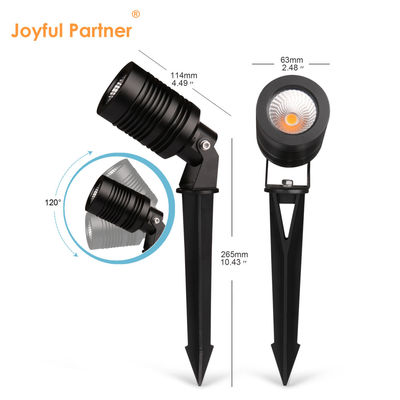

| Application: | Garden | Light Size: | Dia. 63mm*L114mm |
|---|---|---|---|
| Treatment: | Outdoor Powder Coating | Working Temperature: | -20℃~40℃ |
| Light Color: | Single Color(2700-6500K) | Front Cover: | Aluminum And Tempered Glass |
| Highlight: | 10W Outdoor Garden Spot Lights,Warm White Outdoor Garden Spot Lights,Pathway Outdoor Spike Lights |
||
|
Item No.
|
Light Source
|
Lens Beam Angle(°)
|
Consumption (watt)
|
Input Voltage(V)
|
IK Rate
|
|
B83310COB B83510COB
|
1*10W CREE
|
15°/25°/38°/60°
|
10
|
DC12V/DC24V
|
4
|
|
B83310COB B83510COB
|
1*10W CREE
|
15°/25°/38°/60°
|
11
|
AC100-240V
|
4
|
|
Material specifications
|
|
|
|
Housing
|
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
|
|
|
Glass
|
Tempered glass.T=3mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
|
Gasket
|
Tooling shaped seal
|
|
|
LED
|
CREE COB LED,Ra>80
|
|
|
Driver
|
Constant current output
|
|
|
Spike
|
PVC(grey or black)
|
|
|
Mounting base
|
anodic oxidation or outdoor powder painting
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) |
|
|
Optional accessory
|
Honeycomb
|
|
|
|
Antiglare hood
|
|
![]()
