LED Garden Spot Light
>
|
|
| Place of Origin | Guangdong, China |
| Brand Name | Joyful Partner |
| Certification | CE, RoHS, EMC, LVD |
| Model Number | 83836 |
|
Item No.
|
Light source
|

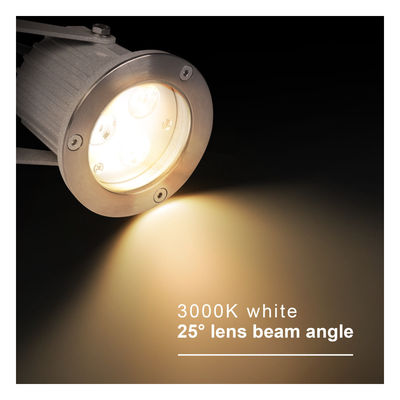

Lens beam angle(°)
|
Consumption(watt)
|
Input voltage(V)
|
Ik rate
|
|
83831
83031 |
3*1W
|
8°/15°/20°/30°/45°/60°
|
3.2
|
DC12V/DC24V
|
4
|
|
83831H
83031H |
3*1W
|
8°/15°/20°/30°/45°/60°
|
3.2
|
AC120V/240V
|
4
|
|
83832
83032 |
3*3W
|
8°/15°/20°/30°/45°/60°
|
9
|
DC12V/DC24V
|
4
|
|
83832H
83032H |
3*3W
|
8°/15°/20°/30°/45°/60°
|
9.5
|
AC120V/240V
|
4
|
|
83836
83036 |
3*3W RGB3in1
|
30°/45°/60°
|
9
|
DC12V/DC24V
|
4
|
|

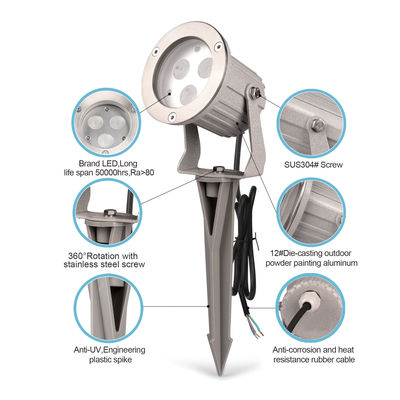

Material specifications
|
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B |
|
|
Froncover
|
Stainless steel SUS304 or 316
|
|
|
Bracket
|
Powder coated aluminum
|
|
|
Glass
|
Tempered glass.T=4mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP67 PG9 PA66
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) H05RN-F4*0.75mm²L=1m(for RGB) |
|
|
Spike
|
PVC(grey or black)
|
|
|
Mounting base
|
Powder painting die-casting aluninum
|
|
|
Optional accessory
|
Honeycomb
|
|
