Product Details:
|
Product Weight(kg): | 1.8 | Item Type: | LED Garden Spot Light |
---|---|---|---|
Consumption: | 5 Watt | Front Cover: | Aluminum And Tempered Glass |
Port: | Any Port In China | Material: | Aluminum Housing+tempered Glass |
Highlight: | LED Garden Spot Light 10W,LED Garden Spot Light 5W,15W Low Voltage LED Spot Lights |
Item No.
|
Light Source
|

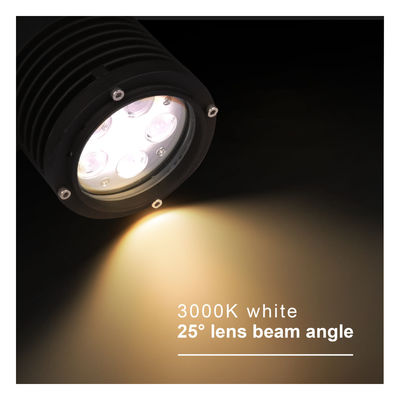

Lens Beam Angle(°)
|
Consumption
(watt)
|
Input Voltage(V)
|
IK Rate
|
83551 83551B
|
5*1W
|
8°/15°/20°/30°/45°/60°
|
5
|
DC24V
|
5
|
83551H 83551BH
|
5*1W
|
8°/15°/20°/30°/45°/60°
|
6.1
|
AC100-240V
|
5
|
83552 83552B
|
5*3W
|
8°/15°/20°/30°/45°/60°
|
15
|
DC24V
|
5
|
83552H 83552BH
|
5*3W
|
8°/15°/20°/30°/45°/60°
|
15.5
|
AC100-240V
|
5
|
83556 83556B
|
5*3W RGB3in1
|
30°/45°/60°
|
15.1
|
DC24V
|
5
|

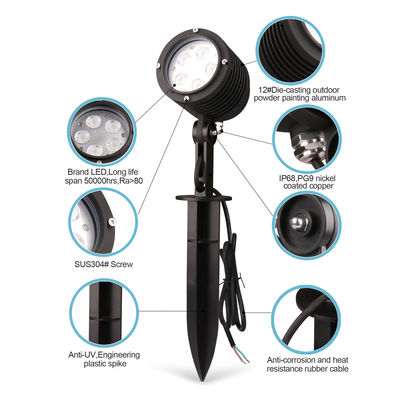

Material specifications
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B
|
|
Glass
|
Tempered glass.T=4mm
|
|
Lens
|
Optical lens,effciency≥85%
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
Gasket
|
Molding shaped silicone double seal
|
|
LED
|
Epistar or CREE,Ra>80
|
|
PCB
|
Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk
|
|
Driver
|
Constant current output
single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
|
Operating temperature
|
(-20℃~40℃)
|
|
Spike
|
PVC
|
|
Mounting base
|
Powder coated die-casting aluninum
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage)
H05RN-F4*0.75mm²L=1m(for RGB)
|
|
Optional accessory
|
Honeycomb
|
|
|
Antiglare hood
|
