Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
8205121
|
12*1W LED
|
8°/15°/25°/30°/45°/60°
|
12
|
DC24V/AC100-240V
|
8
|
|
8205122
|
12*2W LED
|
8°/15°/25°/30°/45°/60°
|
24
|
DC24V/AC100-240V
|
8
|
|
|
|
|
|
|
|
|
8210121
|
24*1W LED
|
8°/15°/25°/30°/45°/60°
|
24
|
DC24V/AC100-240V
|
8
|
|
8210122
|
24*2W LED
|
8°/15°/25°/30°/45°/60°
|
48
|
DC24V/AC100-240V
|
8
|
|

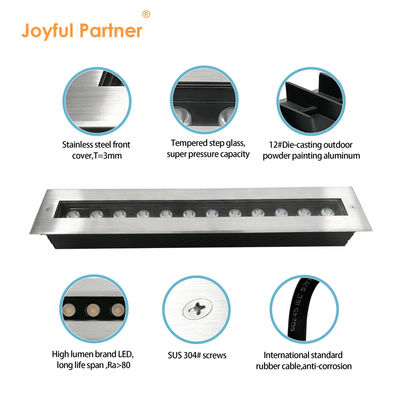

Material specifications
|
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B |
|
|
Front cover
|
304# or 316#Stainless Steel
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Glass
|
Tempered glass.T=10mm
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage) |
|
|

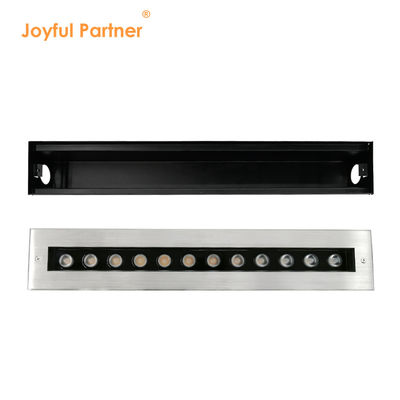

Mounting sleeve
|
ABS
|
|
|
Optional accessory
|
Honeycomb
|
|
