Product Details:
|
| Color Temperature(CCT): | 2700k-6500k | Lamp Luminous Efficiency(lm/w): | 100 |
|---|---|---|---|
| Color Rendering Index(Ra): | 85 | Support Dimmer: | Yes |
| Lighting Solutions Service: | Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 1.5 |
| Warranty(Year): | 2-Year | Input Voltage(V): | DC24V 12V/AC100-240V |
| Lamp Luminous Flux(lm): | 400 | CRI (Ra>): | 85 |
| Working Temperature(℃): | -20 - 40 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Stainless Steel | IP Rating: | IP67, IP67 Waterproof |
| Application: | Step,stair,Deck,Boat,Humid Environment | Light Source: | LED |
| Item Type: | LED Linear Underground Light | Glass: | 8mm Tempered Step Glass |
| Shape: | Linear | OEM&ODM: | Available |
| Lens Effciency: | ≥85% | Keyword: | Step Light Deck Light Stair Light |
| Control Mode: | DMX512/ Customized (0-10V/ Triac/ Dali) | Usage: | Outdoor Garden Landscaping Decorative |
| Port: | Guangzhou/Shenzhen | ||
| Highlight: | Adjustable Outdoor LED Floor Lights,Underground Outdoor LED Floor Lights,Adjustable Outdoor Landscape Lighting |
||

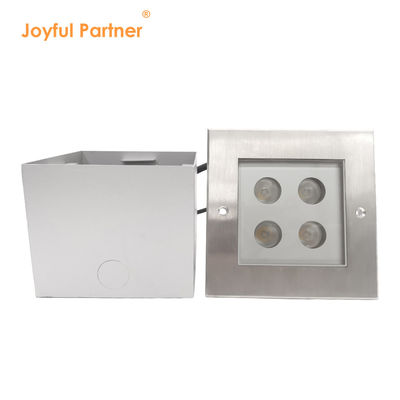

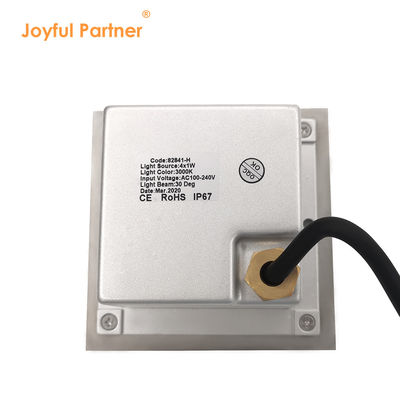

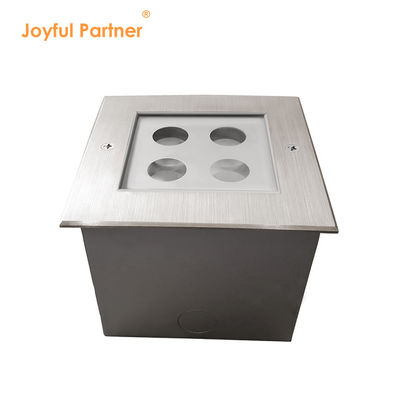

IP67 Adjustable Underground Buried Step Light Outdoor Floor Inground Lamp For Driveway Landscape Pathway
|
Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
82841(AS/H)
|
4*1W LED
|
8°/15°/25°/30°/45°/60°
|
4
|
DC24V/AC100-240V
|
9
|
|
82842(AS/H)
|
4*3W LED
|
8°/15°/25°/30°/45°/60°
|
12
|
DC24V/AC100-240V
|
9
|
|
82829
|
2*6W RGBW 4in1 LED
|
8°/15°/25°/30°/45°/60°
|
12
|
DC12V/DC24V
|
9
|
|
82828
|
2*6W COB LED
|
15°/25°/36°/60°
|
12.1
|
DC24V/AC100-240V
|
9
|
|

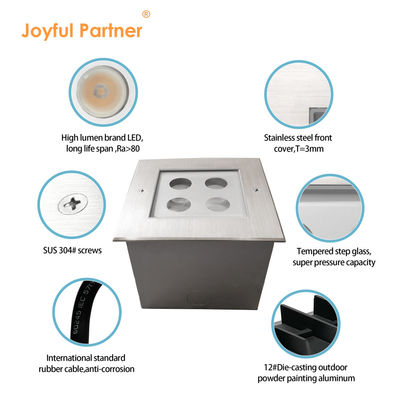

Material specifications
|
|
|
|
Housing
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B |
|
|
Front cover
|
304# or 316#Stainless Steel
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Glass
|
Tempered glass.T=8mm
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage) H05RN-F4*0.75mm²L=0.5m(for RGB) |
|
|
Mounting sleeve
|
Powder coated iron T=1.5mm
|
|
|
Optional accessory
|
Honeycomb
|
|
