DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
  • DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67

DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67

Place of Origin Guangdong, China
Brand Name Joyful Partner
Model Number 80011
Product Details
Color Temperature(CCT):
2700k-6500k
Lamp Luminous Efficiency(lm/w):
100
Color Rendering Index(Ra):
80
Support Dimmer:
Yes
Lighting Solutions Service:
Project Installation
Lifespan (hours):
50000
Working Time (hours):
50000
Product Weight（kg）:
0.075
Warranty(Year):
2-Year
Input Voltage(V):
DC 24V
Lamp Luminous Flux(lm):
100
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
50000
Lamp Body Material:
Stainless Steel
IP Rating:
IP67, IP67 Waterproof
Application:
Step,stair,Deck,Boat,Humid Environment
Light Source:
LED
Item Type:
LED Underground Light
Voltage:
DC12V/DC24V
Material:
Stainless Steel(304/316#)+Aluminum
Light Color:
White Green Red Yellow Blue
Beam Angle:
15°/30°/60°
Wattage:
1W
Keyword:
Step Light Deck Light Stair Light
Usage:
Garden Villa Park Lighting
Control Method:
Internal/IR/RF/DMX512/PLC Control
Highlight:

DC 24V Mini LED Step Light

,

Underground Mini LED Step Light

,

Dimmable LED Deck Lights

Payment & Shipping Terms
Minimum Order Quantity
12 pieces
Price
Negotiable
Packaging Details
Shockproof Carton Box
Supply Ability
500000 Carton/Cartons per Month
Product Description
Mini LED Step Light DC24V LED Inground Light Buried LED Underground Lamp Dimmable IP67 SUS316 LED Deck Light
Products Description
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 0

Mini LED Step Light DC24V LED Inground Light Buried LED Underground Lamp Dimmable IP67 SUS316 LED Deck Light

Item No.
Light source
Lens beam angle(°)
Consumption(watt)
Input Voltage(V)
Ik rate
80011
1*1W LED
15°/30°/45°/60°
1.1
DC12V/DC24V
10
80017
1*0.5W LED
120°
0.5
DC12V/DC24V
10
                                                                   Material specifications

Housing
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
Front cover
304# or 316#Stainless Steel
Lens
Optical lens,effciency≥85%
Glass
Tempered glass.T=7mm
Gasket
Molding shaped silicone double seal
Operating temperature
(-20℃~40℃)
Power cable
H05RN-F2*0.5mm²L=0.5m(low voltage)
Mounting sleeve
Aluminum
Optional accessory
Honeycomb

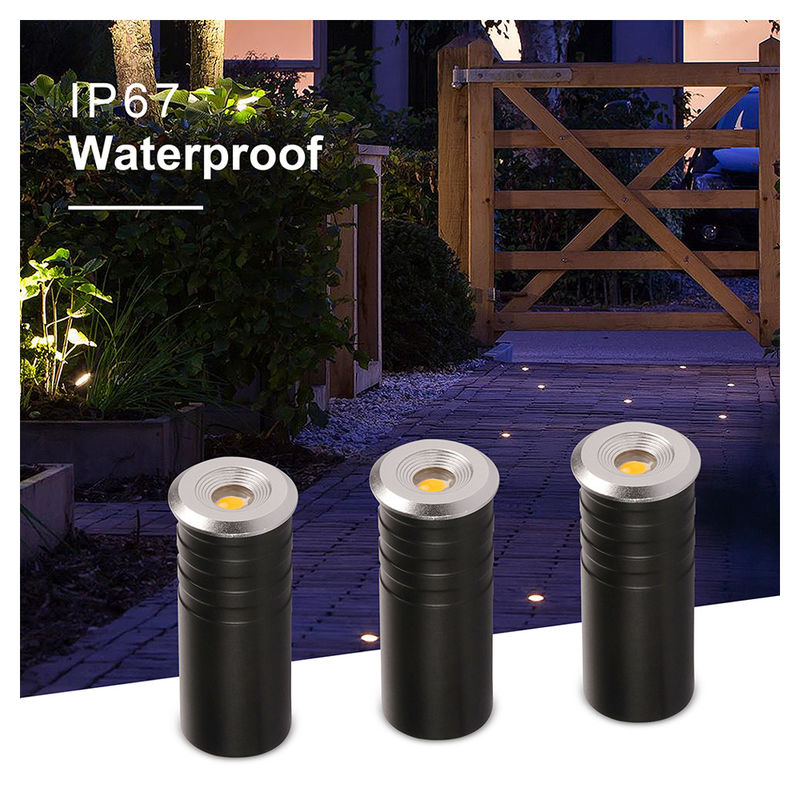

1.IP67 waterproof Mini LED Inground light for outdoor garden/ Step/ Stair /walk lighting use;
2.Buried,recessed, floor recessed, ceiling recessed installation optional.
3.Stainless steel SUS304#/SUS316# front cover;
4.Clear, frosted, diffused glass optional.
5.Heat resistance international standard rubber cable.
6.Using high-quality and high-precision material and structural waterproof, easy to maintain.

DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 1
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 2
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 3
Click Here For More Information And The Best Price!!!
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 4
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 5
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 6
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 7
Company Profile
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 8

DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 9
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 10
DC 24V Mini LED Step Light Buried Underground Dimmable LED Deck Lights IP67 11
