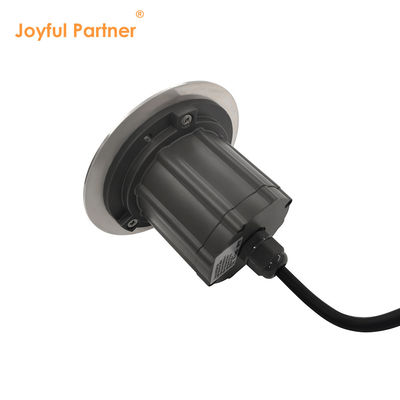

6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light

2 pieces
MOQ
$24.80/pieces 2-99 pieces
Price
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light
Features Gallery Product Description Request A Quote
Features
Specifications
Color Temperature(CCT): 2700k-6500k
Lamp Luminous Efficiency(lm/w): 100
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting Solutions Service: Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Product Weight(kg): 1.13
Warranty(Year): 2-Year
Input Voltage(V): DC 24v,12v
Lamp Luminous Flux(lm): 1000
CRI (Ra>): 80
Working Temperature(℃): -20 - 40
Working Lifetime(Hour): 50000
Lamp Body Material: Stainless Steel
IP Rating: IP67, IP67 Waterproof
Application: Step,stair,Deck,Boat,Humid Environment
Light Source: LED
Item Type: LED Underground Light
Shape: Round
Lamp Size: Dia.108mm*H.90mm
Glass: 8mm Tempered Step Glass
OEM&ODM: Available
Power: 6 Wattage
Certificate: CE,RoHS,EMC
Lens Effciency: ≥85%
Transport Package: Shockproof Carton Box
Port: Guangzhou/Shenzhen
Highlight:

LED Underground Light IP67

,

LED Underground Light 12V DC

,

6W Low Voltage Inground Light

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Joyful Partner
Model Number: A2CD0126
Payment & Shipping Terms
Packaging Details: Shockproof Carton Box
Supply Ability: 500000 Carton/Cartons per Month
Product Description
6W Outdoor Underground Light LED Deck Lighting IP67 Low Voltage 12V DC Die Cast Aluminum Housing Inground Light For Land
Products Description
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 0

COB 6W Outdoor Underground Light LED Deck Lighting IP67 Low Voltage 12v DC Die Cast Aluminum Housing Inground Light For Landscape

Item No.
Light source
Lens beam angle(°)
Consumption(watt)
Input Voltage(V)
Ik rate

A2CD0120
1*10W
RGBW 4in1
20°/25°/40°/
10°x65°/
20°x65°

10

DC12V/DC24V

8
A2CD0126
1*6W COB LED
15°/24°/36°/60°
6.2
DC12V/DC24V
8
A2CD0126H
1*6W COB LED
15°/24°/36°/60°
6.2
AC100-240V
8
Material specifications

Housing
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B
Front cover
304# or 316#Stainless Steel
Lens
Optical lens,effciency≥85%
Glass
Tempered glass.T=8mm
Gasket
Molding shaped silicone double seal
Operating temperature
(-20℃~40℃)
Power cable
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage)
H05RN-F5*0.5mm²L=0.5m(for RGBW)
Mounting sleeve
ABS
Optional accessory
Honeycomb
(1)12#Die-casting outdoor powder painting aluminum
(2)Stainless steel front cover,T=3mm.
(3)Tempered step glass,super pressure capacity.
(4)High lumen brand LED, long life span ,Ra>80
(5)SUS 304# screws

(6)Anti-corrosion rubber cable,H05RN-F
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 1
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 2
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 3
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 4
Click Here For More Information And The Best Price!!!

6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 5
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 6
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 7
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light 8
