Product Details:
|

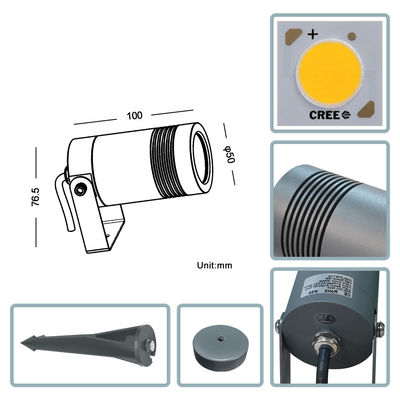

Light Size: | Dia. 50mm*L100mm | Power Source: | 12VDC/24VDC/220VAC |
---|---|---|---|
Keyword: | Garden Light Tree Spot Light | Consumption: | 6 Watt |
Light Source: | 6W | Lumens: | 500lm |
Optional Accessory: | Spike Or Base | Material: | Aluminum |
Ip Grade: | IP65 | Beam Angle: | 15°/25° /38°/60° |
Ip Rated: | IP65 Waterproof | Glass: | Tempered Glass.T=3mm |
Cable Length: | 1 Meters | Light Color: | Single Color(2700-6500K) |
Highlight: | 6W COB Ground Lighting,Up Down COB Ground Lighting,IP65 COB Ground Lighting |
Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
JPS51006 |
1*6W CREE
|
15°/25°/38°/60°
|
6
|
DC12V/DC24V
|
4
|
JPS51006
|
1*6W CREE
|
15°/25°/38°/60°
|
6.5
|
AC100-240V
|
4
|
Material specifications
|
|
Housing
|
Extruded aluminum alloy #6063,anodic oxidation or outdoor powder painting
|
Glass
|
Tempered glass.T=3mm
|
Lens
|
Optical lens,effciency≥85%
|
Cable gland
|
IP68,PG9 nickel coated copper
|
Gasket
|
Tooling shaped seal
|
LED
|
CREE COB LED,Ra>80
|
Driver
|
Constant current output
|
Spike
|
PVC(grey or black)
|
Mounting base
|
Anodic oxidation or outdoor powder painting
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) |
Honeycomb
|
Optional Parts
|
Antiglare hood
|
Optional Parts
|
