Product Details:
|
Color Temperature(cct): | Warm White,Pure White,Cool White,RGB,Multicolor | Application: | Shopping Mall,Swimming Pool,Fountain / Pond / Landscape/ Garden,outdoor,park Fountain Or Hotel Fountain |
---|---|---|---|
Base Type: | Led Underwater Light | Beam Angle: | 45 Degrees |
Installation: | Bracket | Ip Rate: | IP68 |
Item Name: | IP68 LED Underwater Spotlight | Materials: | 316# Stainless Steel |
Mounting Type: | Mounting Base | Voltage: | 24VDC /12VDC |
Highlight: | IP68 LED Under Water Lights,Waterproof LED Under Water Lights |

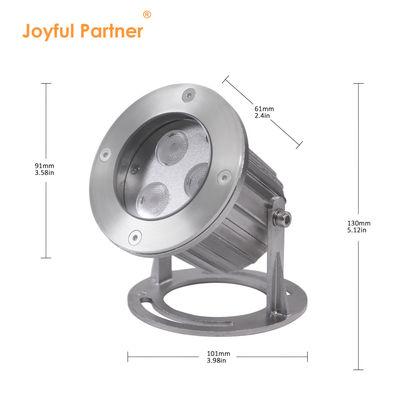

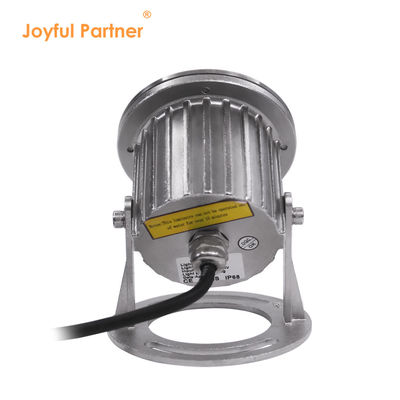

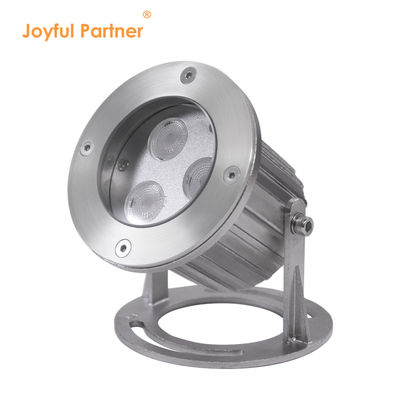

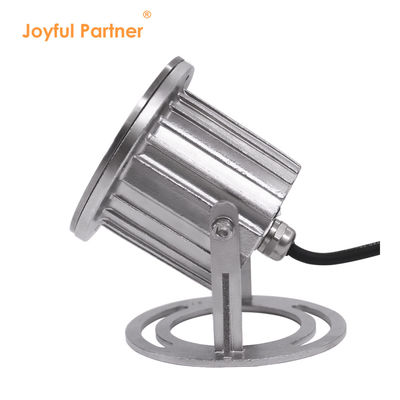

IP68 Waterproof Stainless Steel 316 3x2W LED Under Water Lights For Pond With Mounting Base
Item No. | Lighting Source | Lens Beam Angle (°) | Consumption(Watt) | Input Voltage(V) |
JP-90031 | 3X1W | 8°/15°/25°/ 30°/45°/ 60°/90° | 3 | DC12/24V |
JP-90032 | 3X2W | 8°/15°/25°/ 30°/45°/ 60°/90° | 6 | DC12/24V |
JP-90033 | 3x1W RGB LED | 8°/15°/25°/ 30°/45°/ 60°/90° | 3 | DC12/24V |
JP-90034 | 3x2W RGB LED | 8°/15°/25°/ 30°/45°/ 60°/90° | 6 | DC12/24V |
JP-90036 | 3x3W RGB3in1 | 25°/ 30°/45°/60°/90° | 9 | DC12/24V |
JP-90039 | 3x4W RGB3in1 | 25°/ 30°/45°/60°/90° | 12 | DC12/24V |

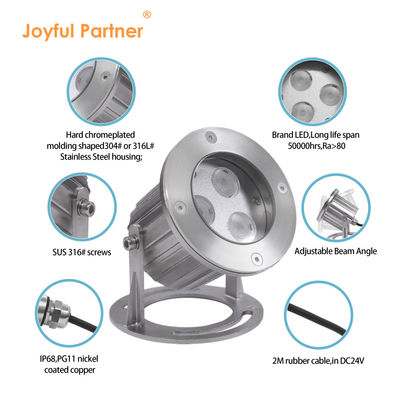

Material: stainless steel 316#S.S or 304#S.S
Lens: Optical lens, efficiency ≥85%
Glass: Tempered glass T=8mm
Cable gland: IP-68 PG-11 copper and nickel coated
Light Color: Single color/ RGB/RGB3 in 1
Working temperature: -20℃ to 40℃
PCB: Excellent heat conductivity Aluminum, coefficient of heat conductivity≥2.0w/mk
Gasket: Molding shaped silicone seal
Power cable: H05RN-F 2x0.75mm2 L=2m (for Single color)
H05RN-F 4x0.75mm2 L=2m (for RGB)
