Product Details:
|
| Color Temperature(CCT): | 2700k-6500k | Lighting Solutions Service: | Project Installation |
|---|---|---|---|
| Lifespan (hours): | 50000 | Working Time (hours): | 50000 |
| Warranty(Year): | 2-Year | Input Voltage(V): | DC 24v,12v,AC100-240v |
| Working Temperature(℃): | -20 - 40 | Working Lifetime(Hour): | 50000 |
| Front Cover: | Stainless Steel | IP Rating: | IP67 Waterproof |
| Application: | Step,stair,Deck,Boat,Humid Environment | Item Type: | LED Underground Light |
| Shape: | Round | Glass: | 8mm Tempered Step Glass |
| OEM&ODM: | Available | Power: | 6 Wattage |
| Certificate: | CE,RoHS,EMC | Lens Effciency: | ≥85% |
| Transport Package: | Shockproof Carton Box | Port: | Guangzhou/Shenzhen |
| Highlight: | IP67 Waterproof COB 6W Underwater Lights,Aluminum Recessed COB 6W Underwater Lights,Outdoor Yard COB 6W Underwater Lights |
||
| Item No. | Light source | Lens beam angle(°) | Consumption(watt) | Input Voltage(V) | Ik rate |
| 82578R | 1*6W COB LED | 12°/24°/38° | 6.5W | DC12V/DC24V/AC100V-240V | 8 |
| 82578S | 1*6W COB LED | 12°/24°/38° | 6.5W | DC12V/DC24V/AC100V-240V | 8 |
| Material specifications | |
| Housing | Aluminum anodized or outdoor powder coated finish housing.T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B |
| Front cover | 304# or 316#Stainless Steel |
| Lens | Optical lens,effciency≥85% |
| Glass | Tempered glass.T=7mm |
| Gass pressure capacity: | Ful area =760kgs |
| Gasket | Molding shaped silicone seal |
| Operating temperature | (-20°~40°) |
| Power cable | H05RN-F2*0.75mm²L=0.5m(low voltage) H05RN-F3*0.75mm²L=0.5m(for single color/high voltage) |
| Mounting sleeve | Aluminum |

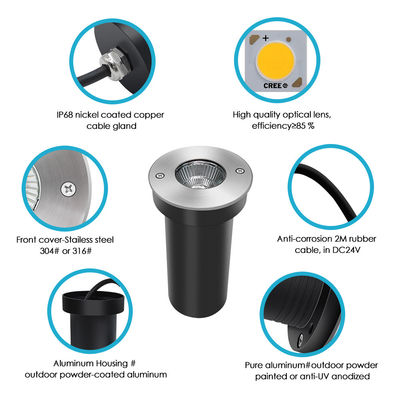

(1)12#Die-casting outdoor powder painting aluminum
(2)Stainless steel front cover,T=3mm.
(3)Tempered step glass.
(4)High lumen brand LED, long life span ,Ra>80
(5)Anti-corrosion rubber cable,H05RN
![]()
