Product Details:
|
| Color Temperature(CCT): | 2700K-6500K | Lifespan (hours): | 50000 |
|---|---|---|---|
| CRI (Ra>): | 80 | Working Temperature(℃): | -20℃ ~ 40℃ |
| Material: | Aluminum Body+stainless Steel | Light Source: | CREE COB LED/OSRAM SMD |
| Highlight: | inground walk over lighting 6W,low voltage garden pavement lights,CREE COB warm white drive over light |
||

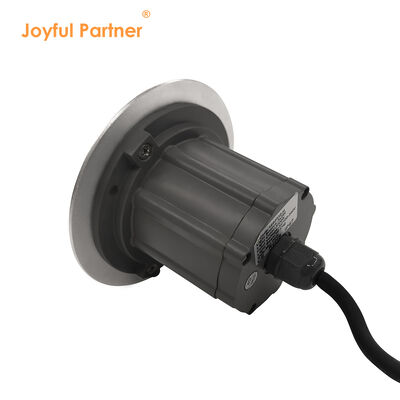

Side Output Drive Over LED Lights SMD 4-Way Output 316 stainless steel front Cover With ABS Mounting Sleeve
| Item No. | Light source | Consumption(watt) | Input Voltage(V) | Ik rate |
| 1E82567 2E82567 4E82567 |
1*6W CREE COB LED | 6.5 | DC12V DC24V AC100-240V |
10 |
| 1E825157 2E825157 4E825157 |
18*SMD2835 LED | 5 | DC12V DC24V AC100-240V |
10 |
| 1E82536 2E82536 4E82536 |
3*3W RGB3in1 LED | 9.1 | DC12V DC24V |
10 |

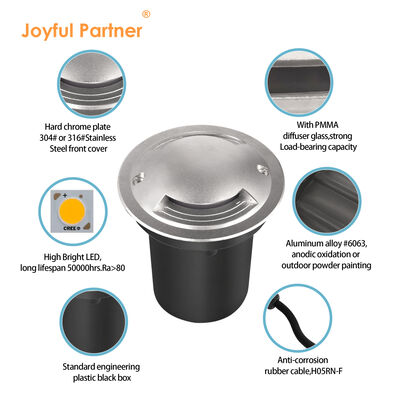

Features and Benefits:
▪ 1-way, 2-way and 4-way side light output for options.
▪ SUS 316 stainless steel front cover with strong load bearing capacity.
▪ Milky PC shade for soft light output.
▪ Input Voltage 24VDC or 110/240VAC.
▪ 316 stainless steel front ring and aluminum lamp housing.
▪ Full area glass pressure capacity>2000KGs.
▪ TRIAC, PWM, 0/1-10V, DALI dimming support optional(Inquire separately).

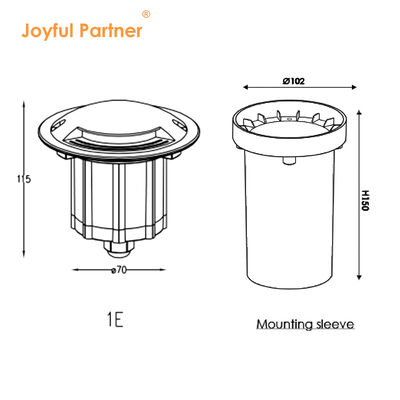

▪ ABS mounting sleeve is included.
▪ IP classification IP67 for outdoor use.
▪ 2 Years warranty available.

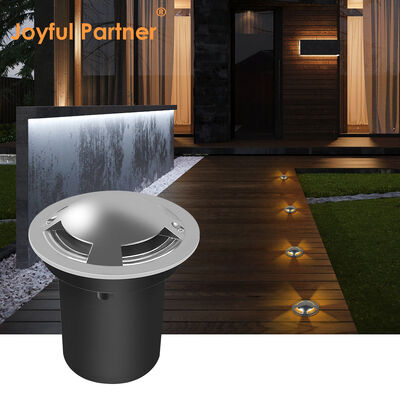

Recessed led inground light can be widely used for underground, inground, floor, deck place, or corridors, pathways and staircases, and wherever dangerous areas have to be marked.

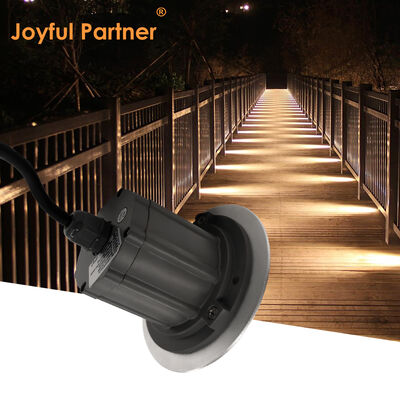

Luminaries with directed light mainly illuminate the traffic areas in front of the installation surface, thus providing for safety along pathways, even in the dark.
