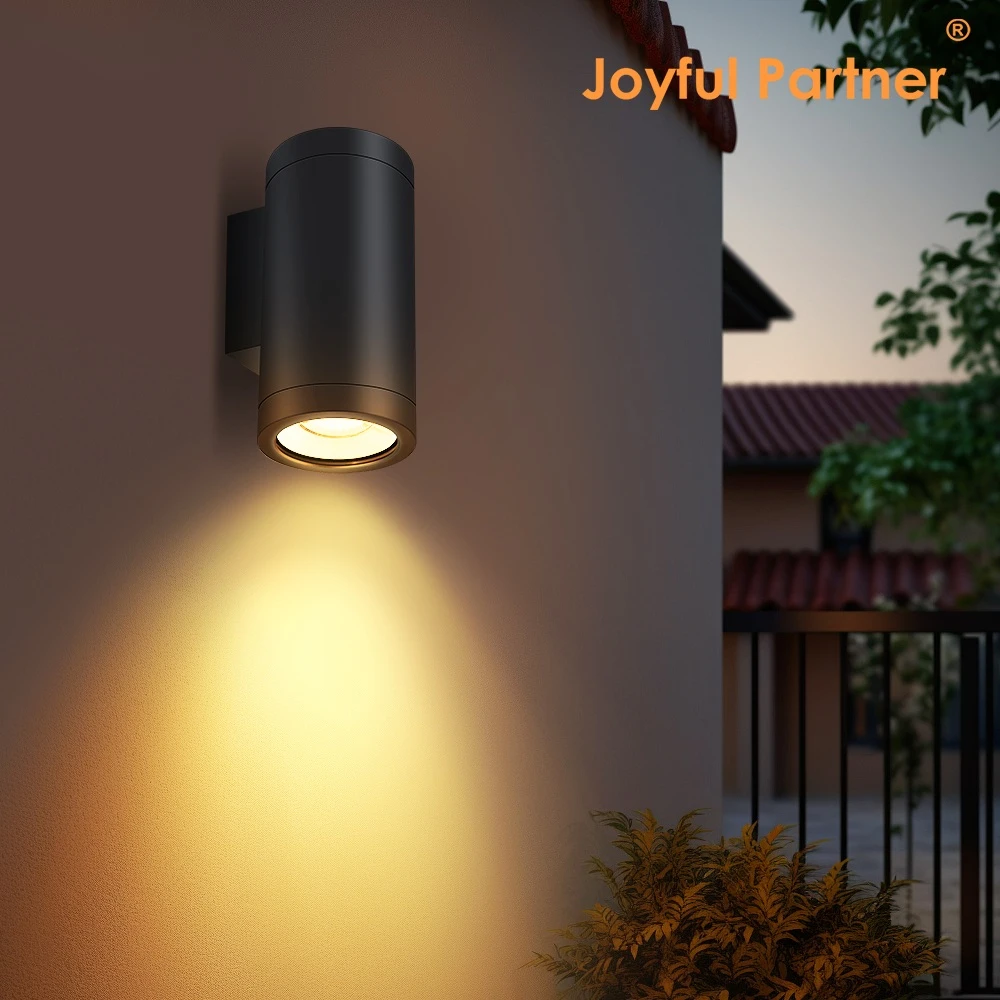

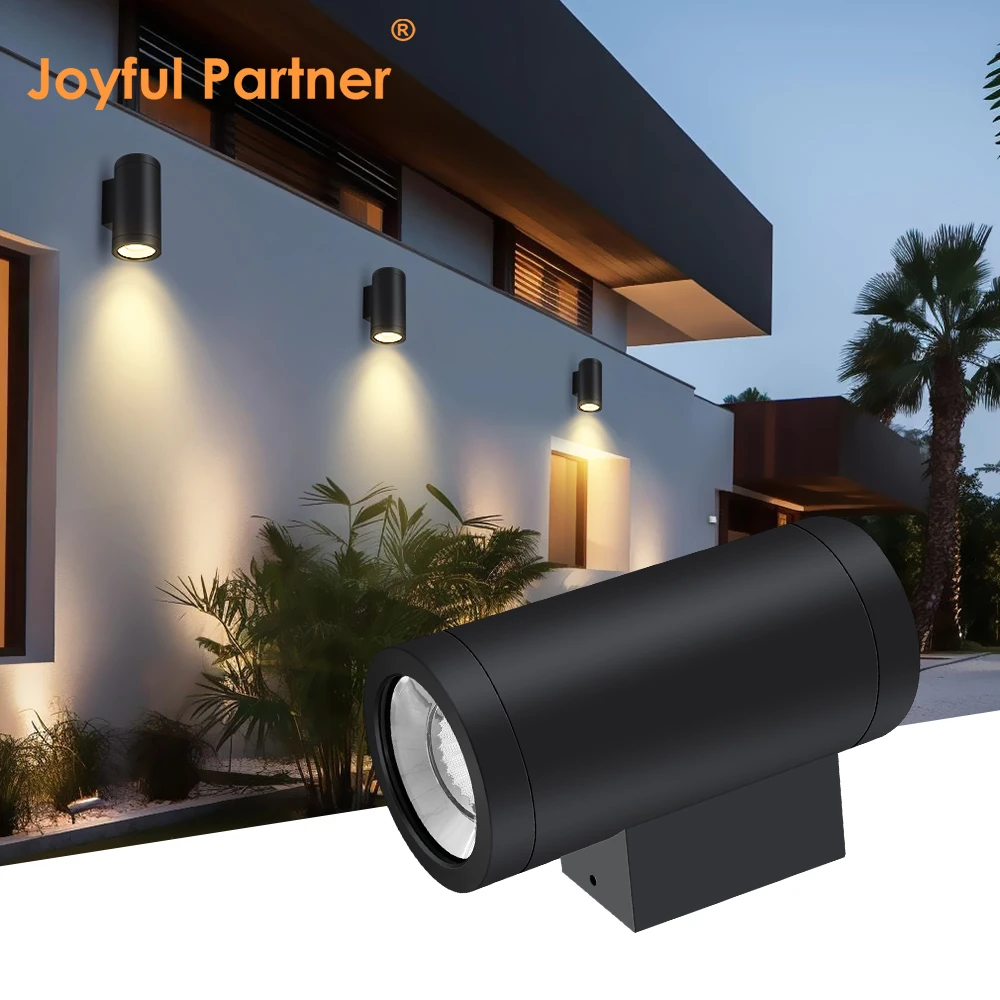

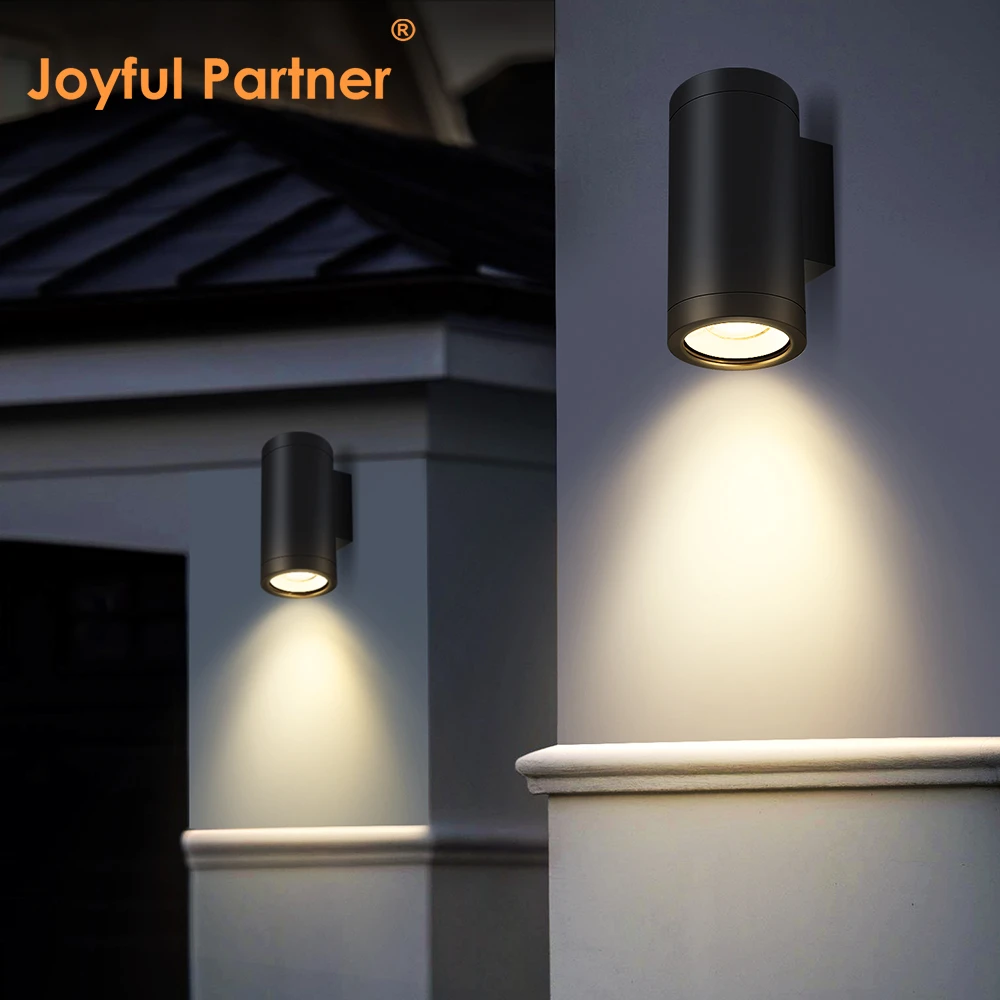

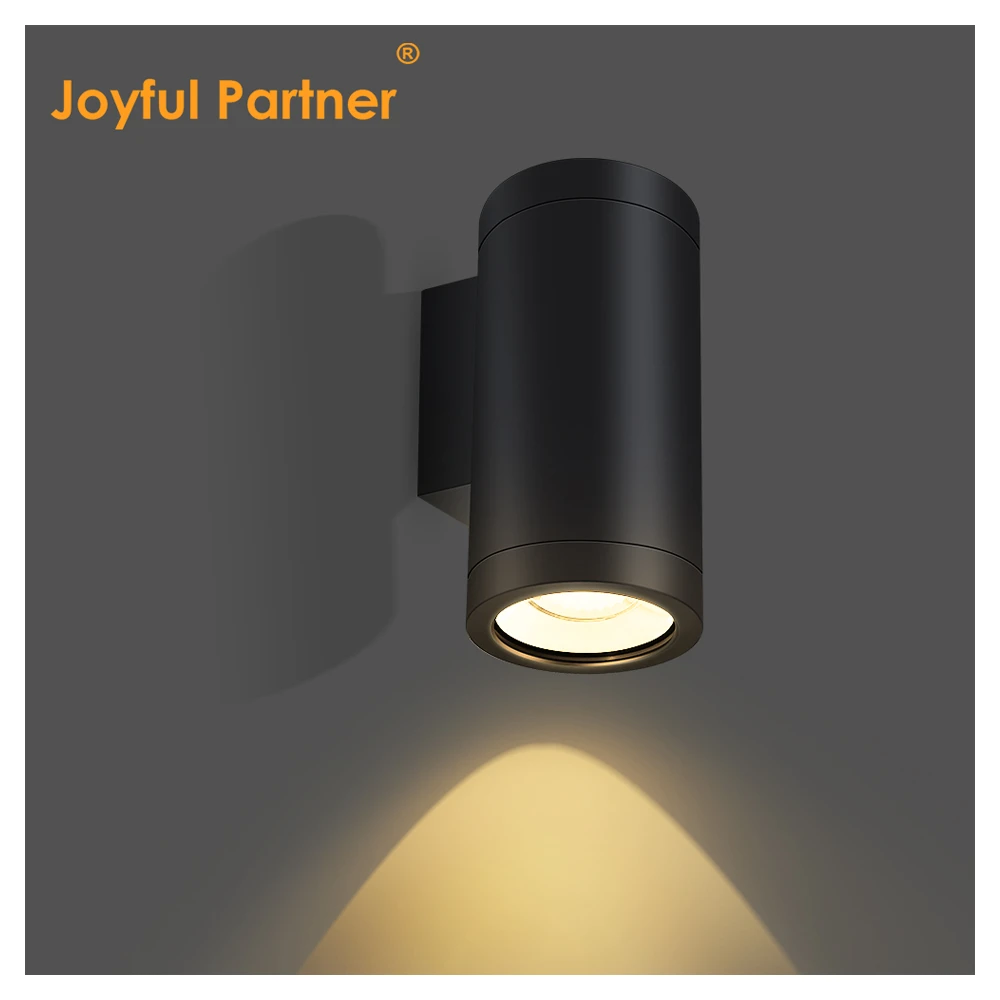

IP65 LED Wall Mounted and Up/Down Wall Washer Light Extruded Aluminum 10W-16W CREE COB LED Single Color for Commercial Building Wall mounted wall washer/Up/Down wall washer
Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model: WL801X Series
Certification: IP65, RoHS, CE
High-performance architectural wall washer light available in both wall-mounted and bi-directional up/down versions.
Constructed with premium extruded aluminum alloy housing for superior heat dissipation and long-lasting outdoor use.
Features high-efficiency CREE COB LEDs ensuring consistent light quality and powerful illumination for facades.
Integrated optical lens with ≥85% efficiency provides 15°, 24°, 30°, or 60° beam angles for precise architectural accenting.

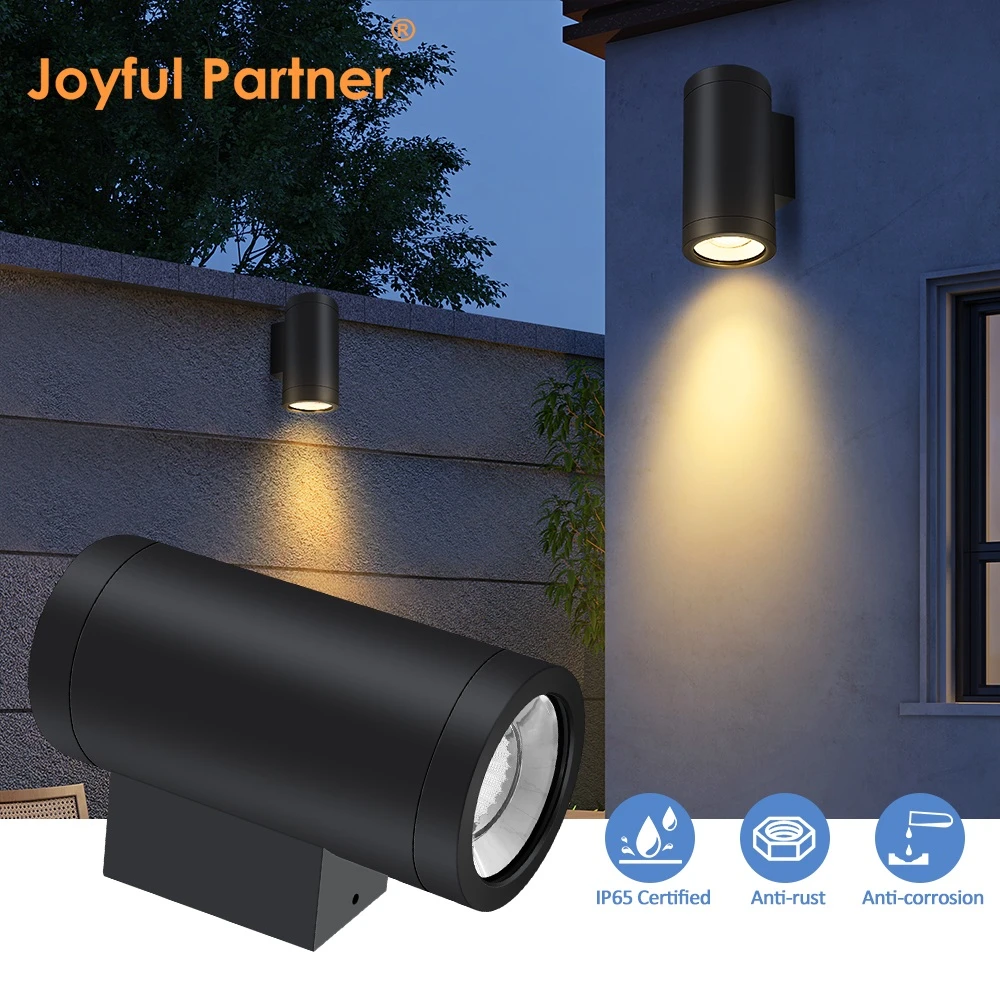

Fully IP65 waterproof rated and IK05 impact resistant, engineered to withstand various environmental conditions.
Housing color options including RAL9005 Matt Black, RAL9003 Signal White, RAL9007 Grey, and RAL7012 Dark Grey.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
WL80108 |
1*10W CREE COB |
15°/24°/30°/60° |
10W |
DC12V/DC24V AC220V/AC240V |
05 |
|
WL80168 |
2*8W CREE COB |
15°/24°/30°/60° |
16W |
DC12V/DC24V AC220V/AC240V |
05 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Extruded aluminum alloy |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (high voltage) |
