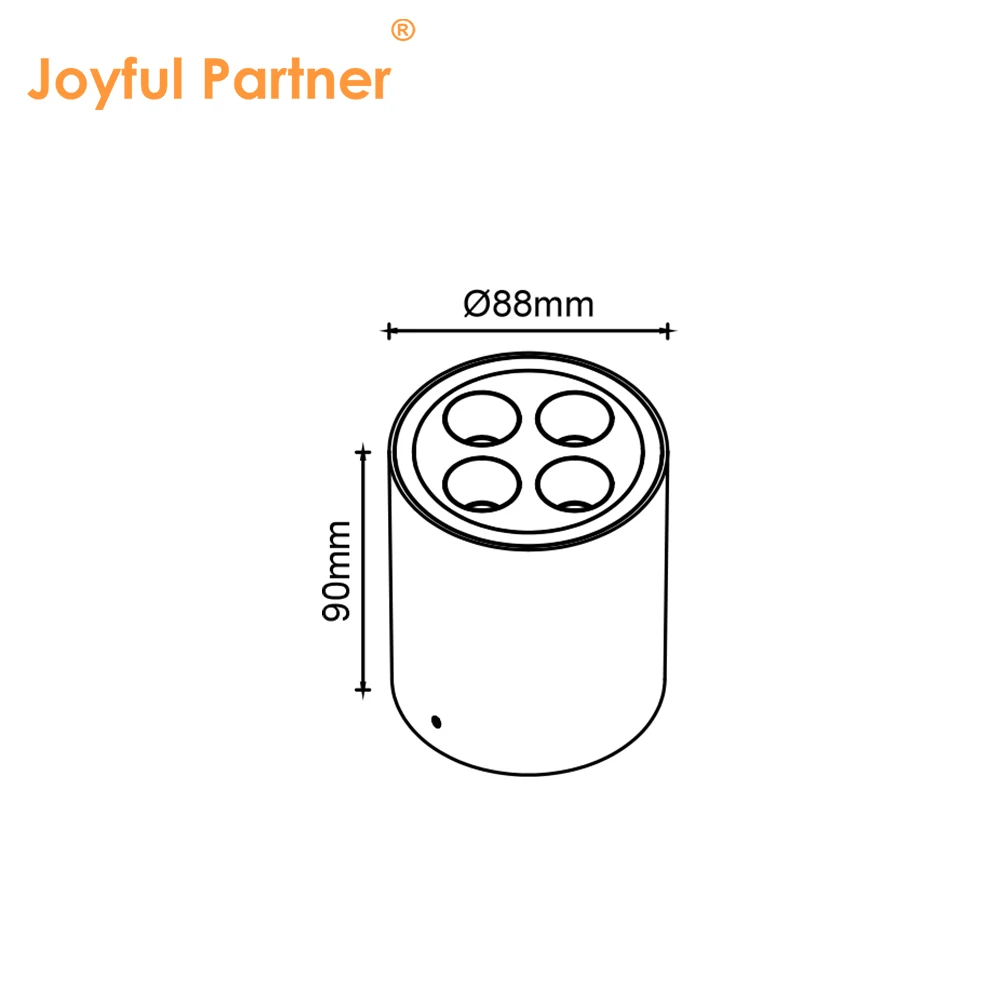

CLR88042（Ø 88mm）
Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model:CLR8804X Series
Certification: IP65, RoHS, CE

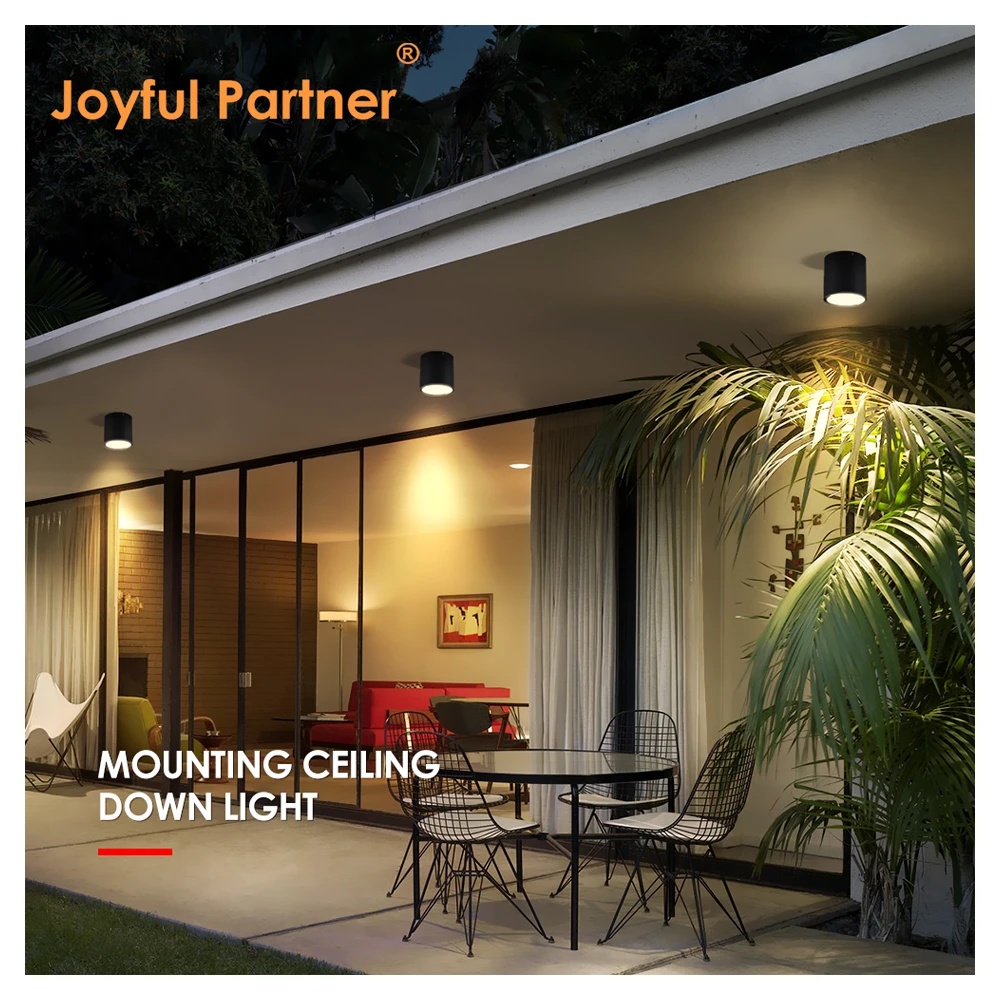

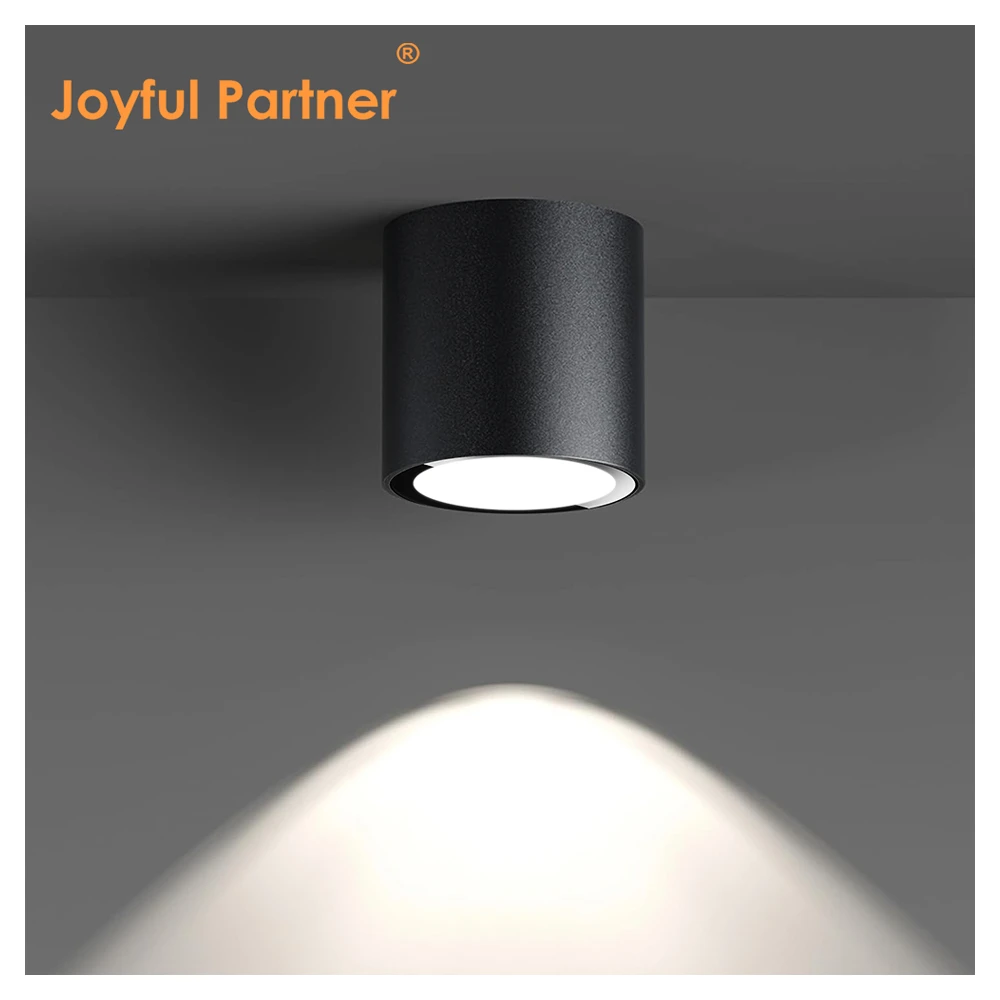

Professional-grade architectural lighting available in ceiling recessed and surface wall-mounted configurations.
Constructed with durable casting aluminum housing and 3mm tempered glass for superior weather resistance.
Equipped with high-performance SMD LEDs and precision optical lenses (efficiency ≥85%) for uniform light output.

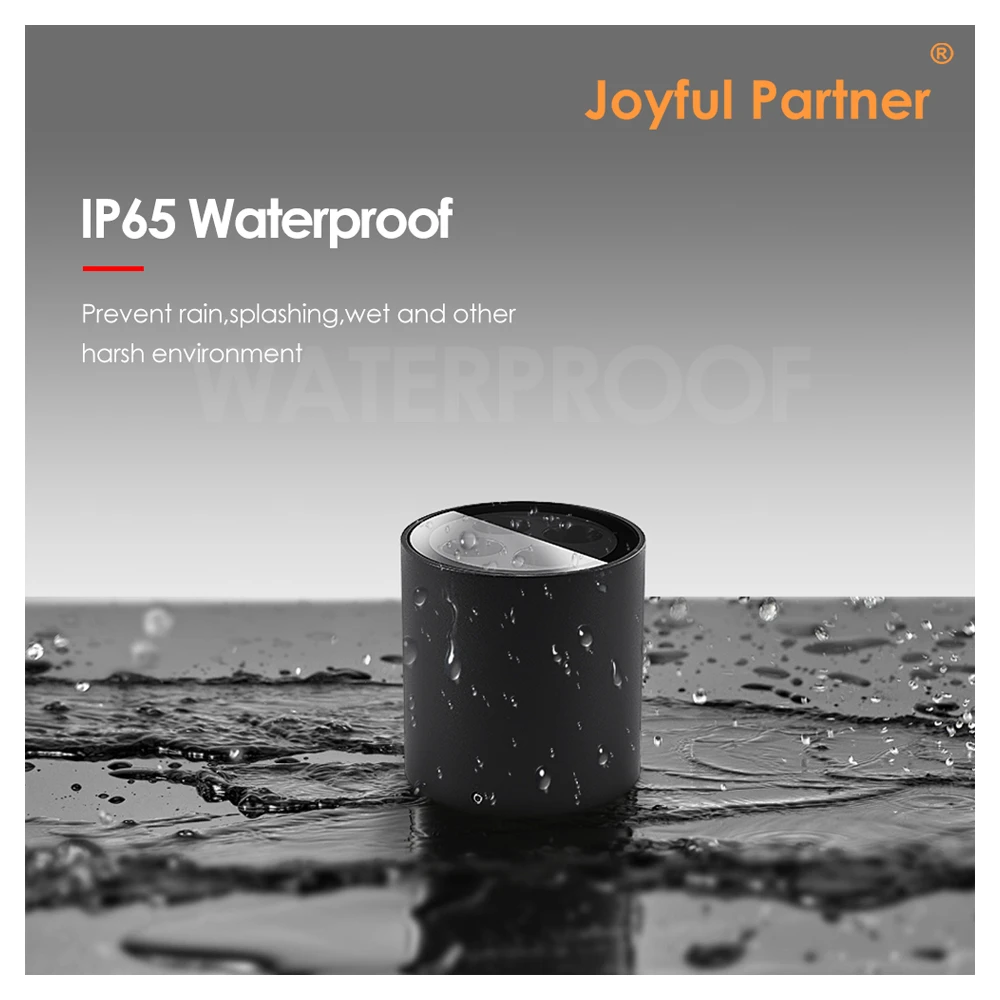

Features an IP65 waterproof rating and IK06 impact resistance, specifically engineered for demanding outdoor environments.
Versatile lighting solutions with beam angle options of 15°, 24°, or 36° to suit various architectural highlighting needs.
Available in multiple powder-coated finishes including Matt Black, Signal White, and Grey to complement modern facades.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
CLR88041 |
4*1W LED |
15°/24°/36° |
4W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLR88041 |
4*1W LED |
15°/24°/36° |
4W |
DC12V/DC24V AC220V/AC240V |
06 |
|
CLR88042 |
4*2W LED |
15°/24°/36° |
8W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLR88042 |
4*2W LED |
15°/24°/36° |
8W |
DC12V/DC24V AC220V/AC240V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Extruded aluminum alloy |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.3m (high voltage) |
