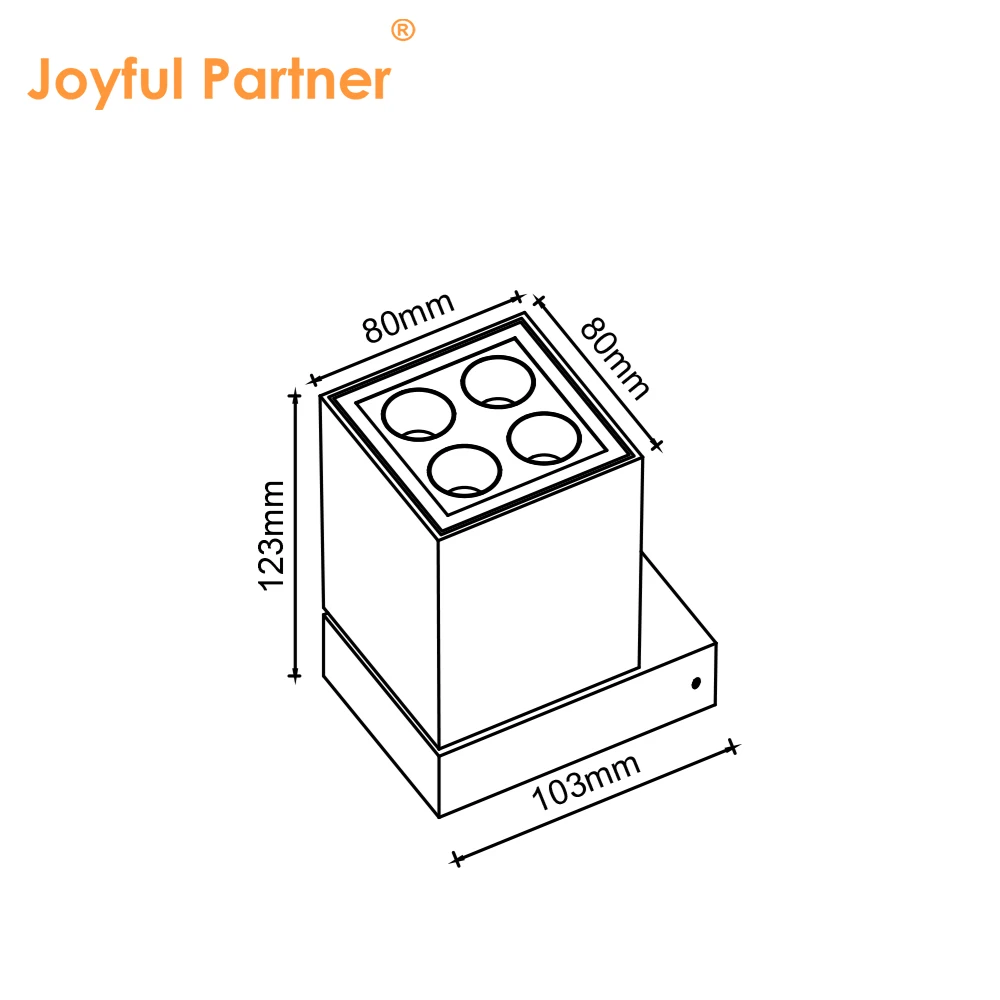

WLS80042（80*80mm）
Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model:WLS8004X Series
Certification: IP65, RoHS, CE

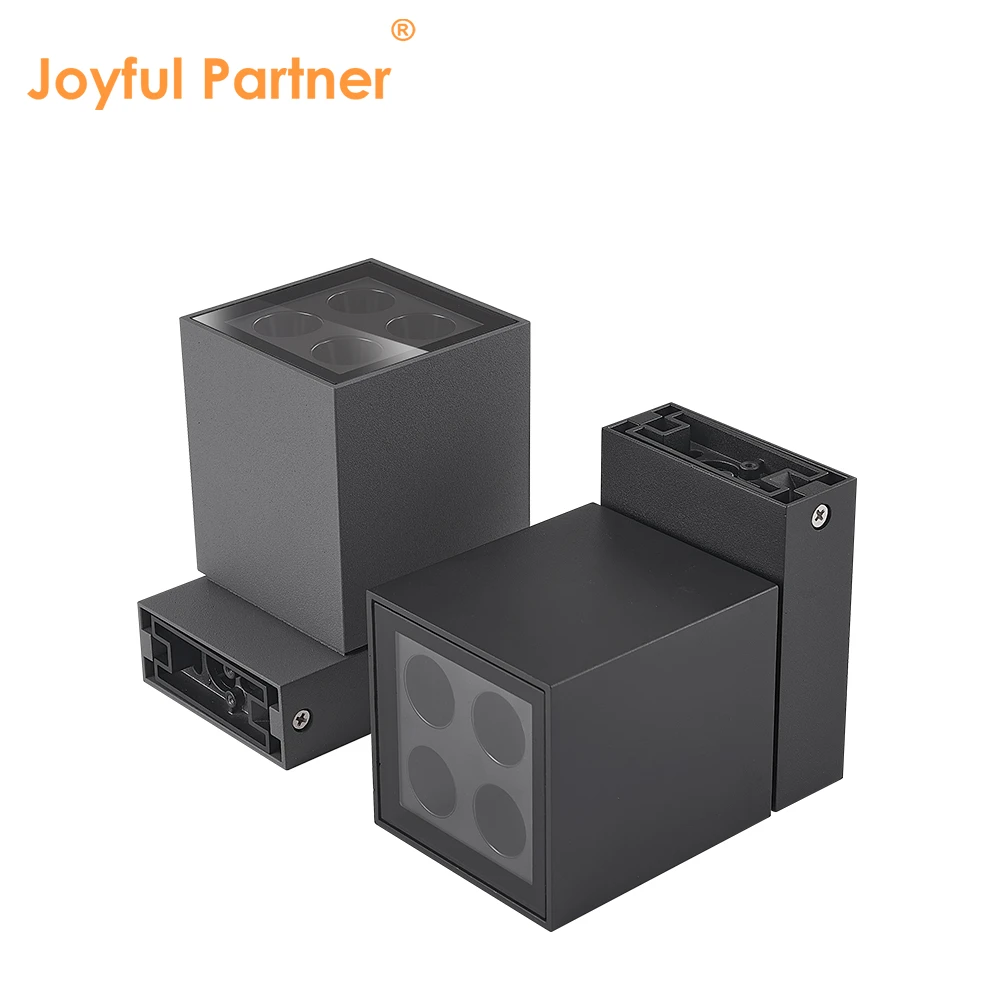

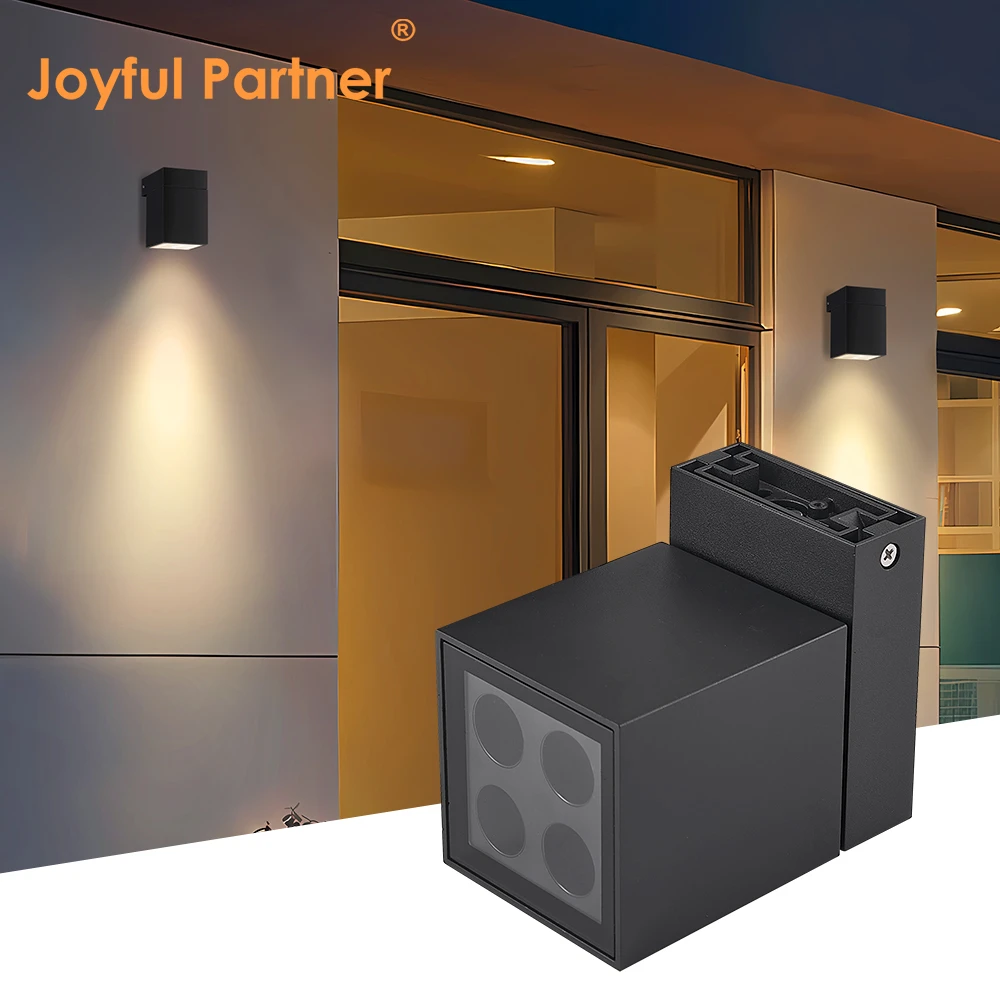

Professional-grade square architectural lighting available in both ceiling downlight and surface wall-mounted versions.
Constructed with high-strength casting aluminum housing and 3mm tempered glass for ultimate outdoor durability.
Equipped with high-performance SMD LEDs and precision optical lenses (efficiency ≥85%) for superior light control.

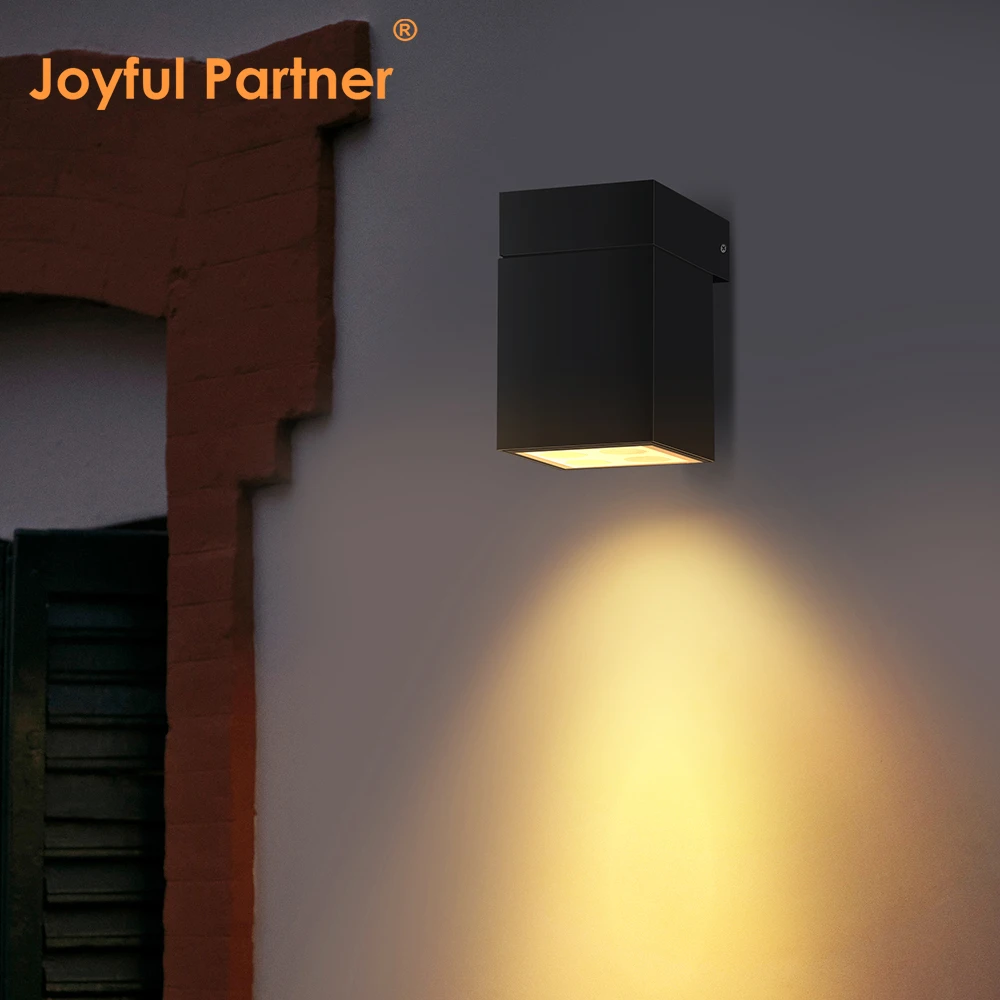

Features an IP65 waterproof rating and IK06 impact resistance, specifically engineered for vertical surface illumination.
Versatile beam angle options (15°, 24°, or 36°) allow for precise architectural accenting and modern facade highlights.
Offered in premium powder-coated finishes including Matt Black, Signal White, and Grey to match contemporary designs.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
CLS80041 |
4*1W LED |
15°/24°/36° |
4W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLS80041 |
4*1W LED |
15°/24°/36° |
4W |
DC12V/DC24V AC220V/AC240V |
06 |
|
CLS80042 |
4*2W LED |
15°/24°/36° |
8W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLS80042 |
4*2W LED |
15°/24°/36° |
8W |
DC12V/DC24V AC220V/AC240V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Casting aluminum |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (high voltage) |
