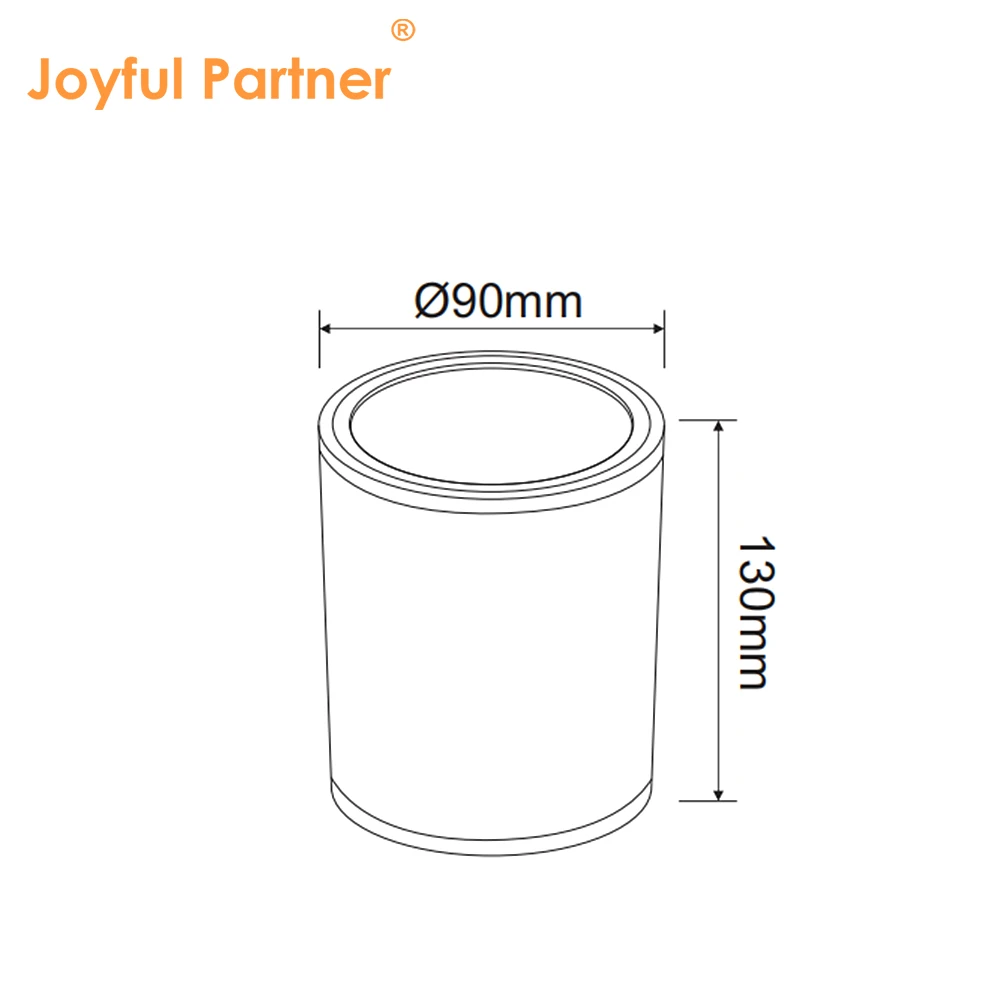

CLR90128（Ø 90mm）

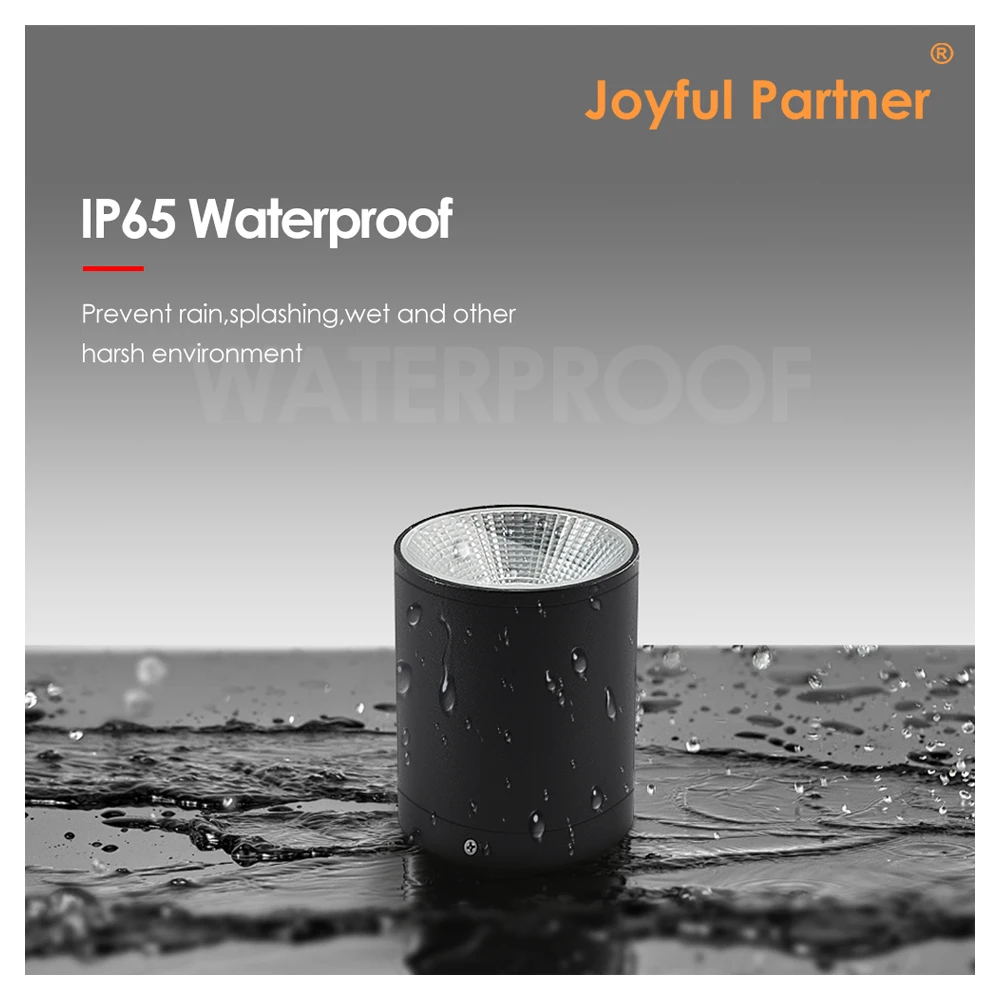

Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model:CLR90128 Series
Certification: IP65, RoHS, CE

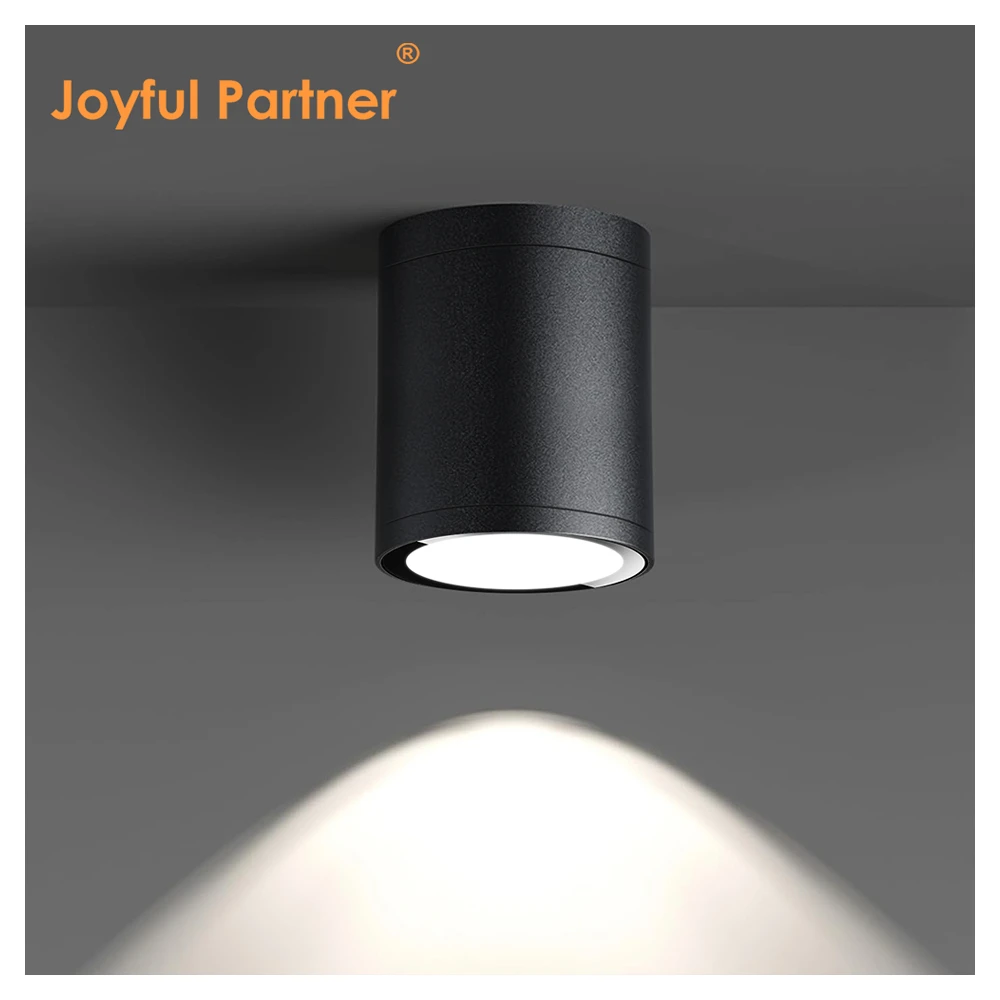

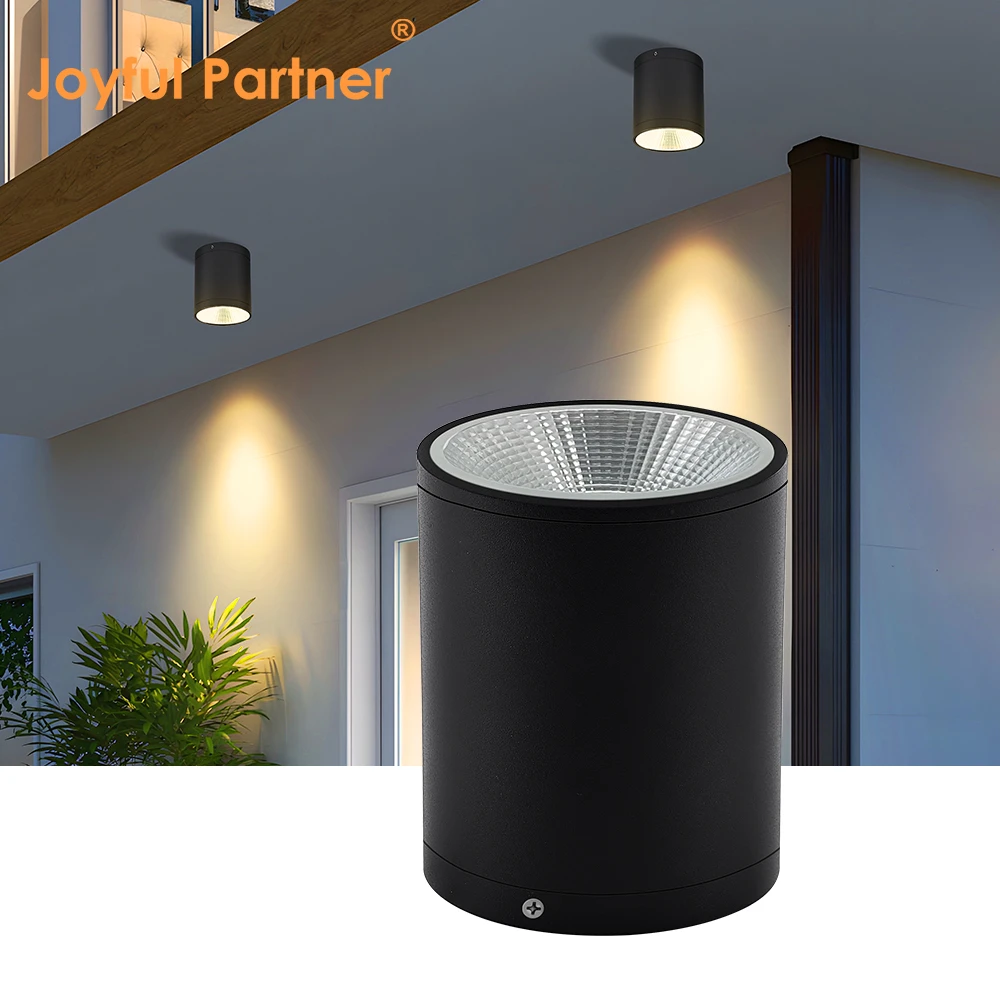

Designed as a versatile new-type waterproof wall light for ceiling mounting, covering both wall and ceiling applications in one fixture.
Constructed with an extruded aluminum body delivering a durable, long-lasting waterproof housing for dependable performance in outdoor and indoor environments.
Equipped with COB LEDs delivering soft, even light output, with dimming support for gently adjusting the brightness scene by scene.
Supports universal DC12V/24V and AC220V/240V input options, covering all the typical low-voltage and mains installations easily in one single fixture.
Available with logo and graphic customization.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
CLR90128 |
12W CREE COB |
38°/60° |
12W |
DC12V/DC24V AC220V/AC240V |
06 |
|
CLR110158 |
15W CREE COB |
38°/60° |
15W |
DC12V/DC24V AC220V/AC240V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing Material |
Extruded aluminum alloy |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (high voltage) |
