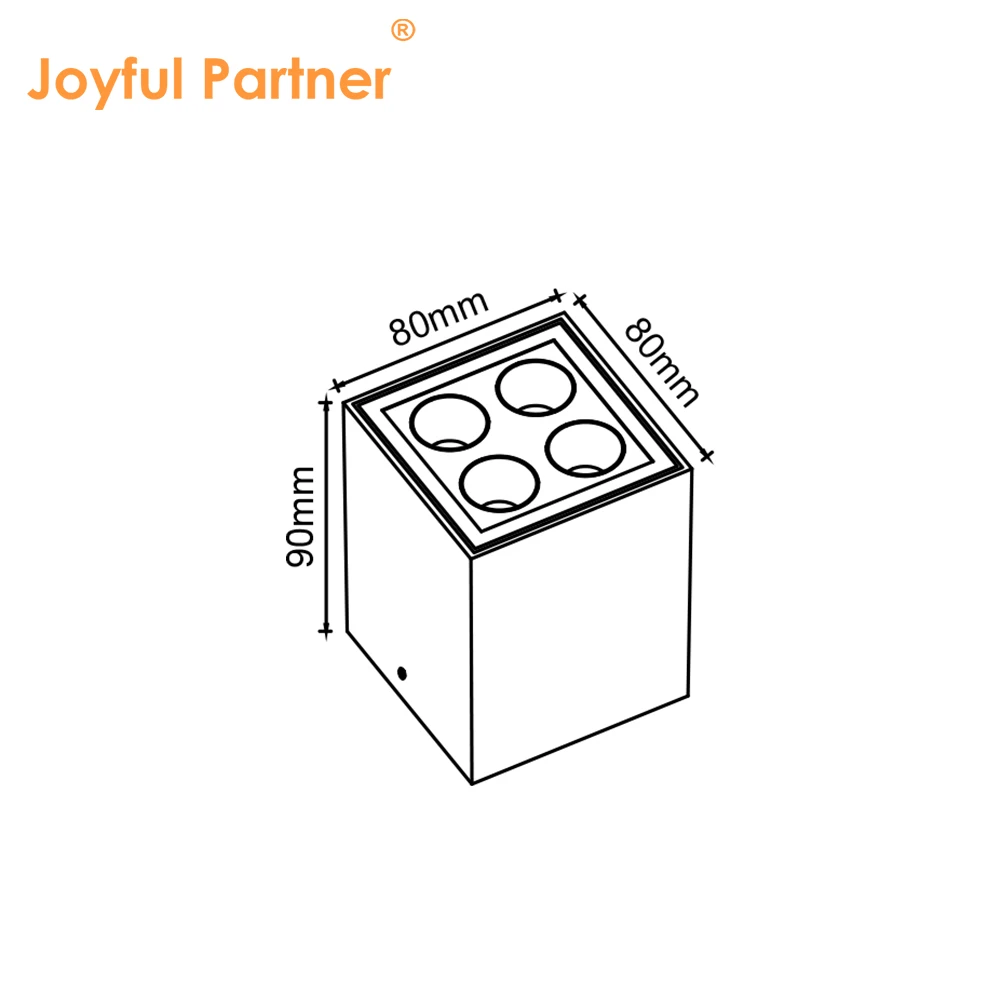

CLS80042（80*80mm）

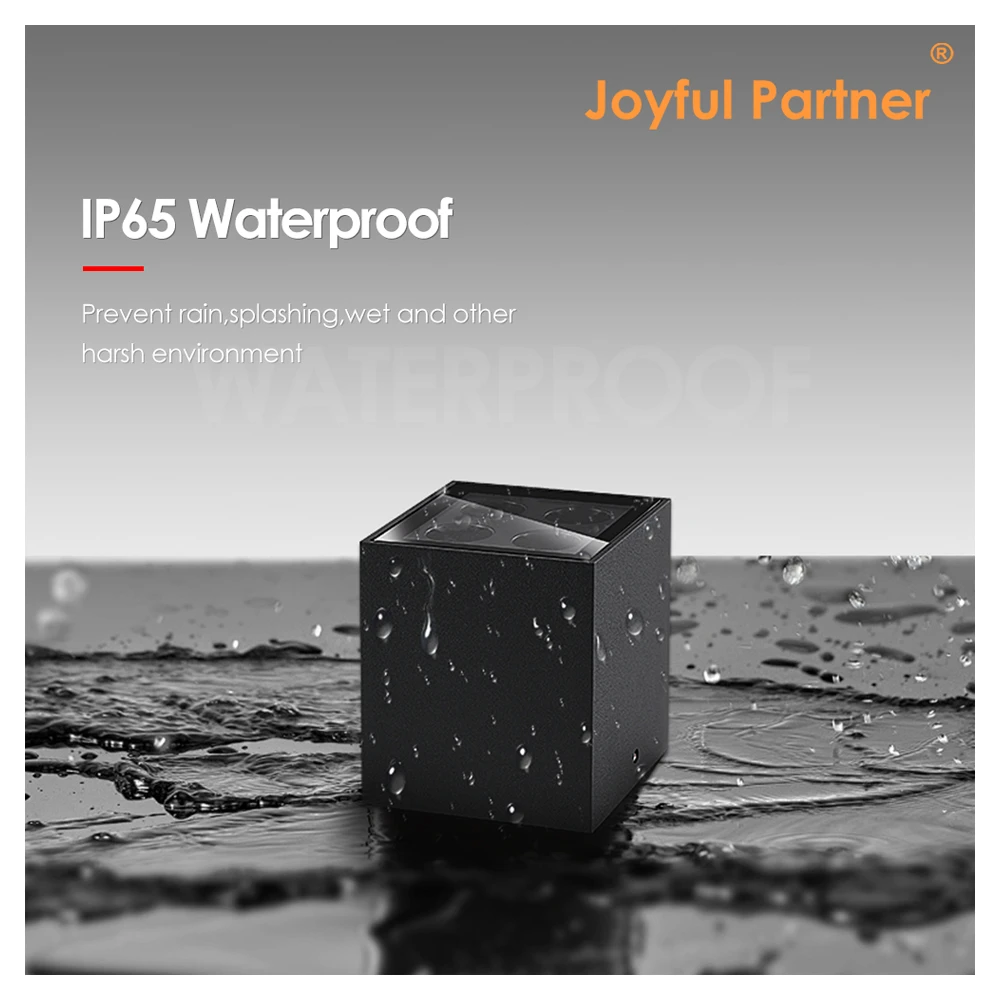

Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model:CLS8004X Series
Certification: IP65, RoHS, CE

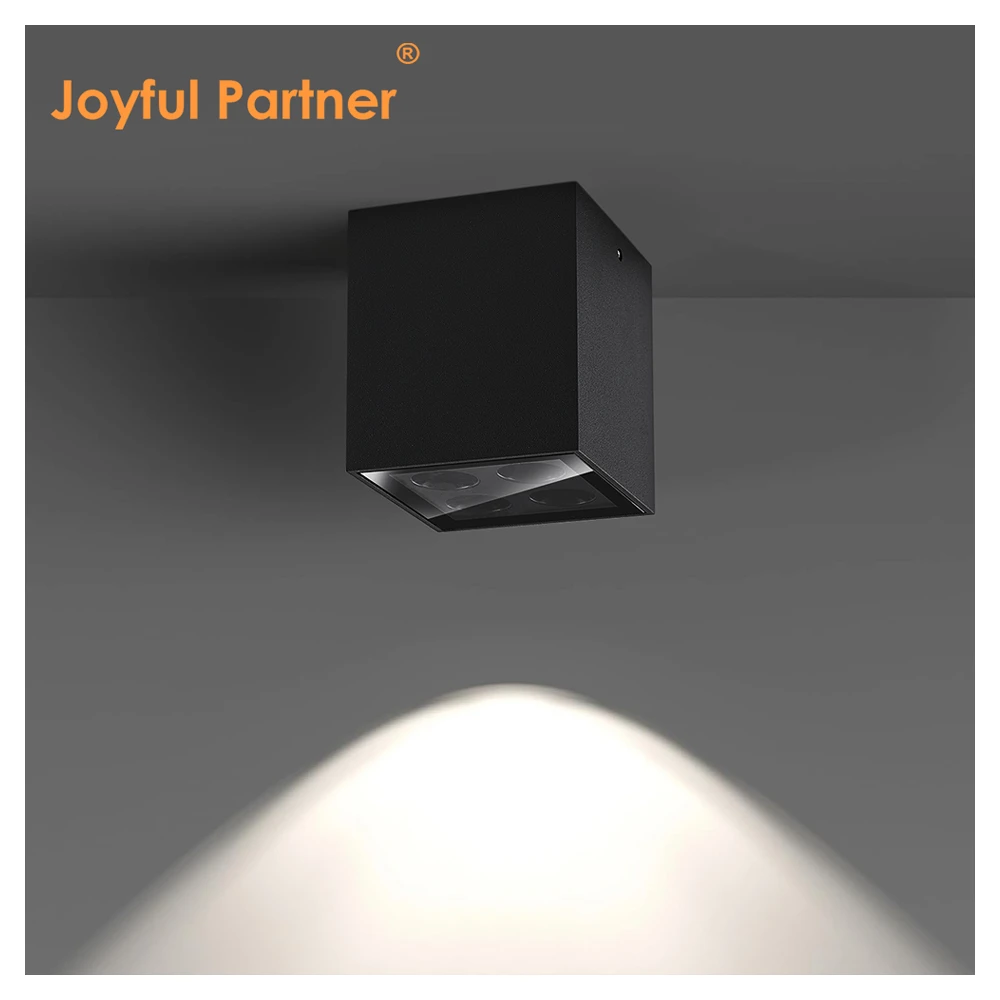

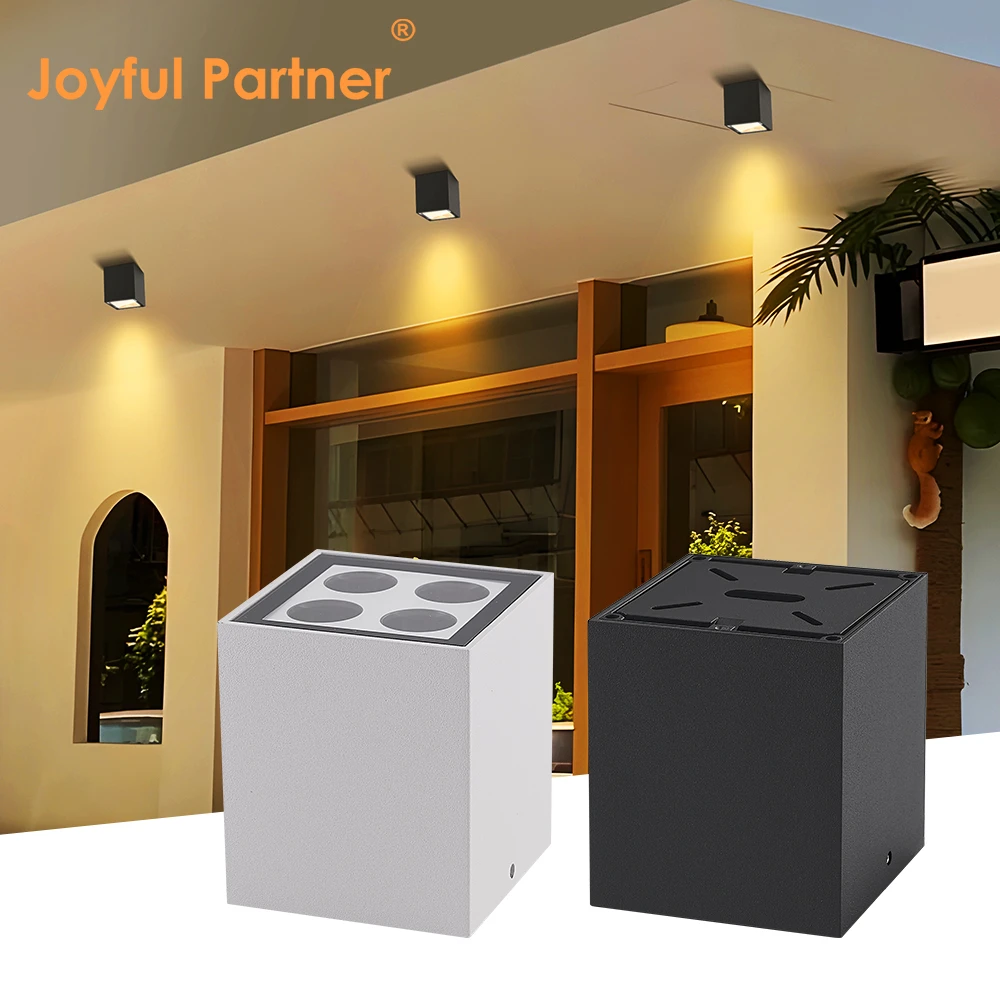

Glare-Free exterior wall light with narrow beam angles from 8° to 60°, delivering directional illumination for outdoor architectural facades at night.
Constructed with a cast aluminum body and 3mm tempered glass, optical lenses with efficiency above 85%, copper-nickel coated cable glands and mold-formed seals for IP65 protection.
Supports DC12V/24V and AC220V/240V voltage options with stabilization, powering 8W SMD LEDs at 85 lm/W with Ra85 in 3000K warm white or 6000K alert light.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
CLS80041 |
4*1W LED |
15°/24°/36° |
4W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLS80041 |
4*1W LED |
15°/24°/36° |
4W |
DC12V/DC24V AC220V/AC240V |
06 |
|
CLS80042 |
4*2W LED |
15°/24°/36° |
8W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLS80042 |
4*2W LED |
15°/24°/36° |
8W |
DC12V/DC24V AC220V/AC240V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Casting aluminum |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (high voltage) |
