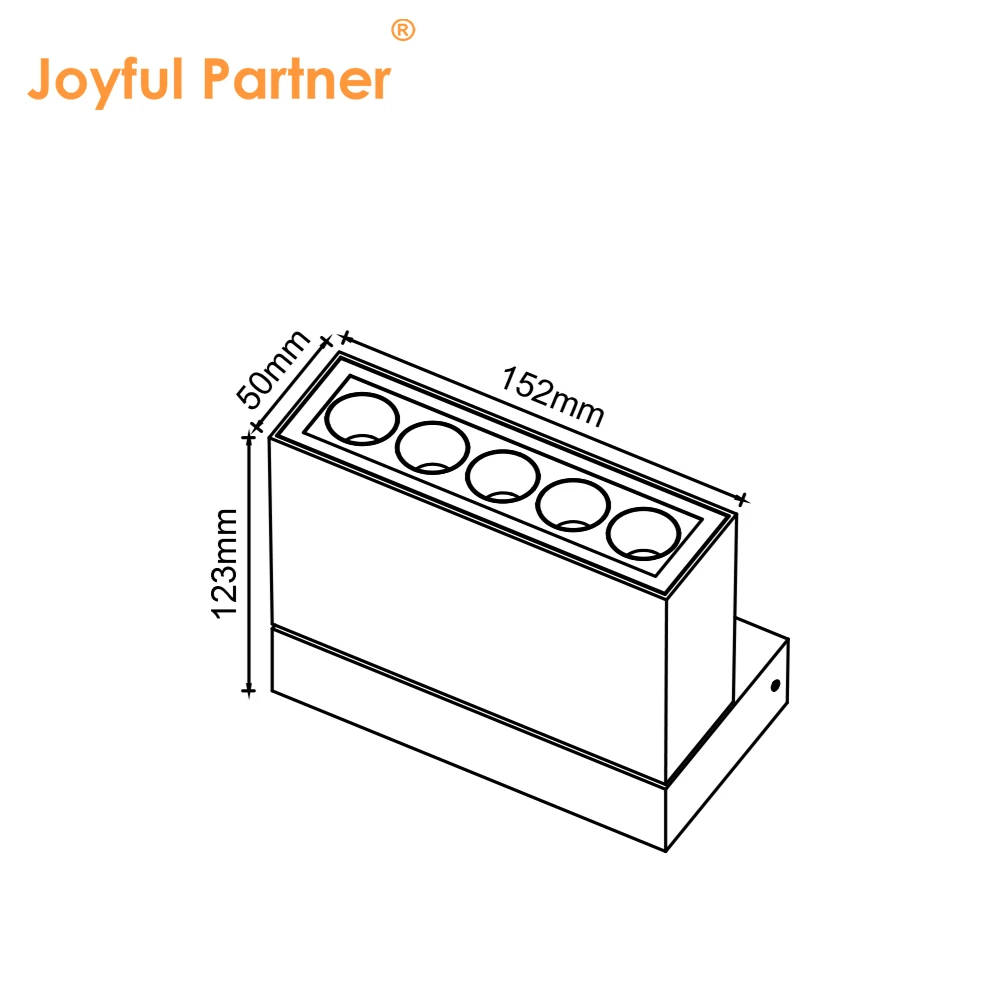

WLL152052（152*50mm）

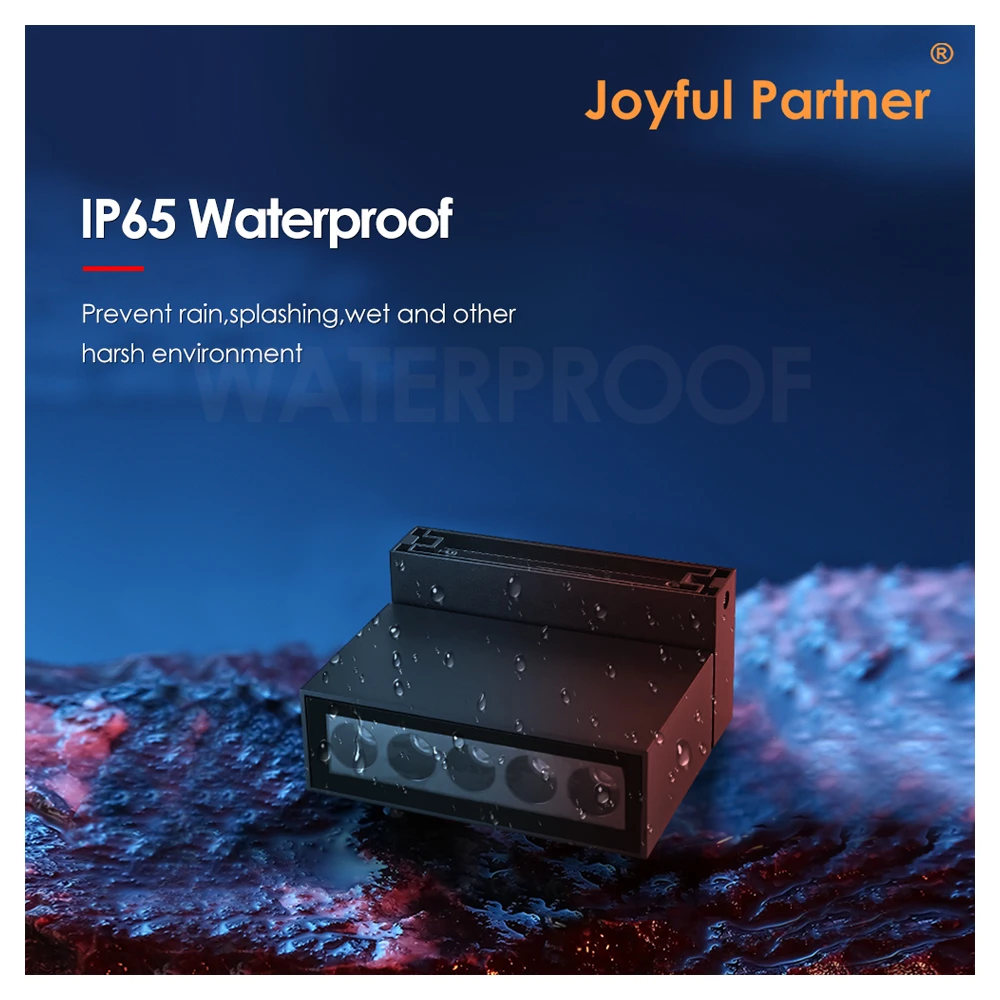

Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model:WLL152052 Series
Certification: IP65, RoHS, CE

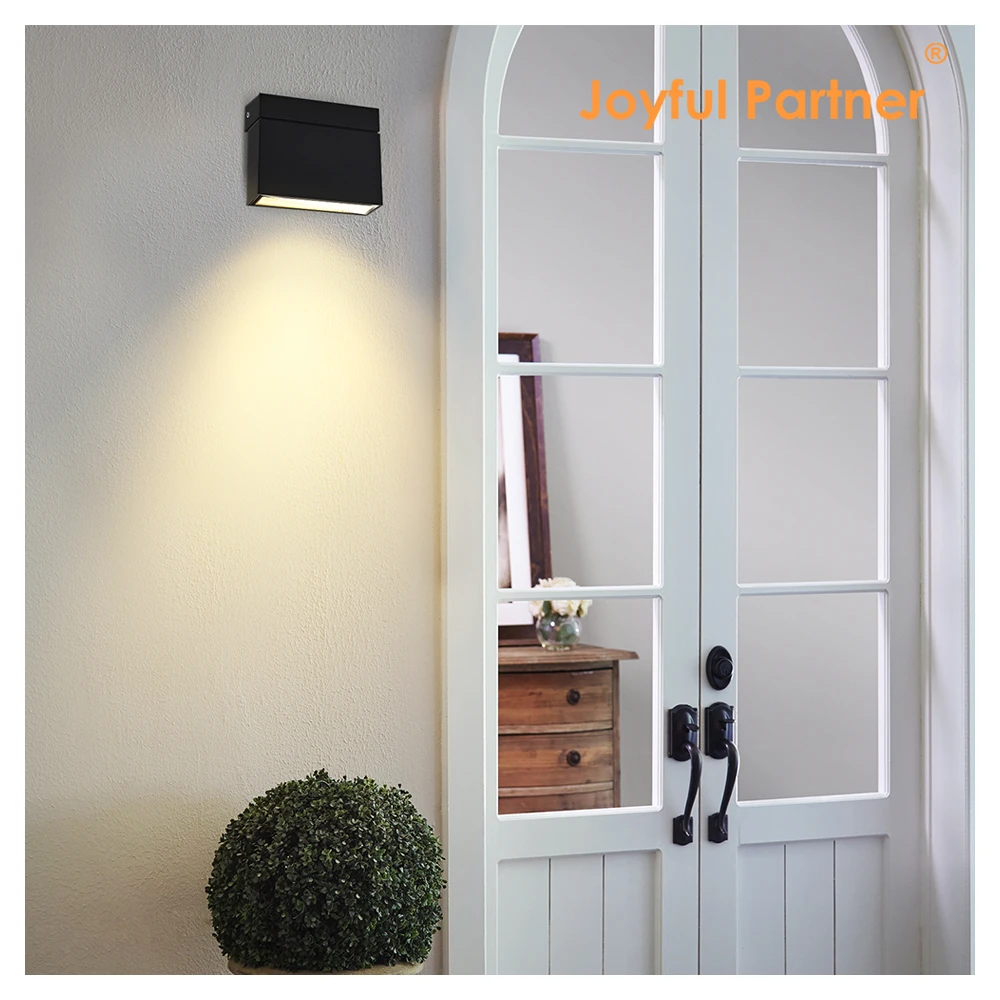

Designed for outdoor LED lighting, this square IP65 waterproof wall lamp delivers steady, even illumination to gardens and corridors alike.

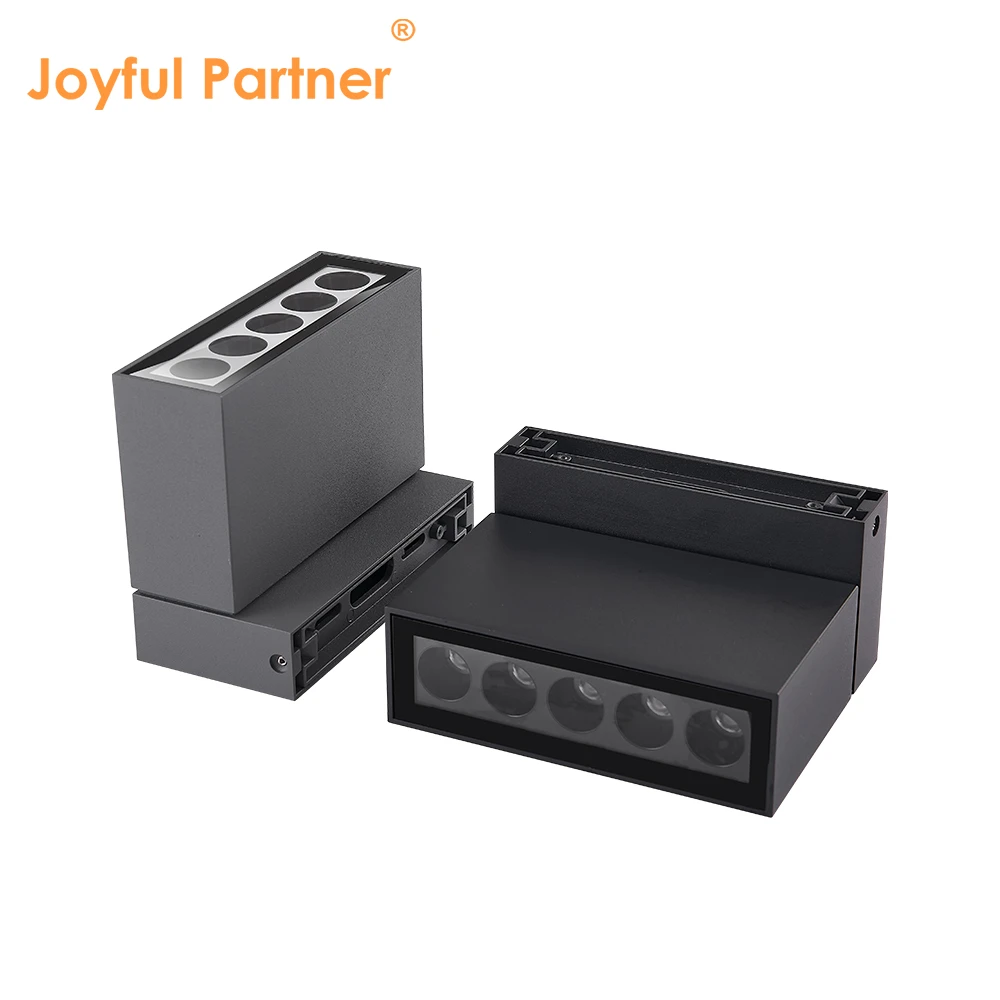

Constructed with an aluminum body and rated IP65, this square wall lamp stands up to outdoor weather with three finish colors.
Available in black, white and gray finishes, letting homeowners match the lamp to any garden or corridor facade and decor style.

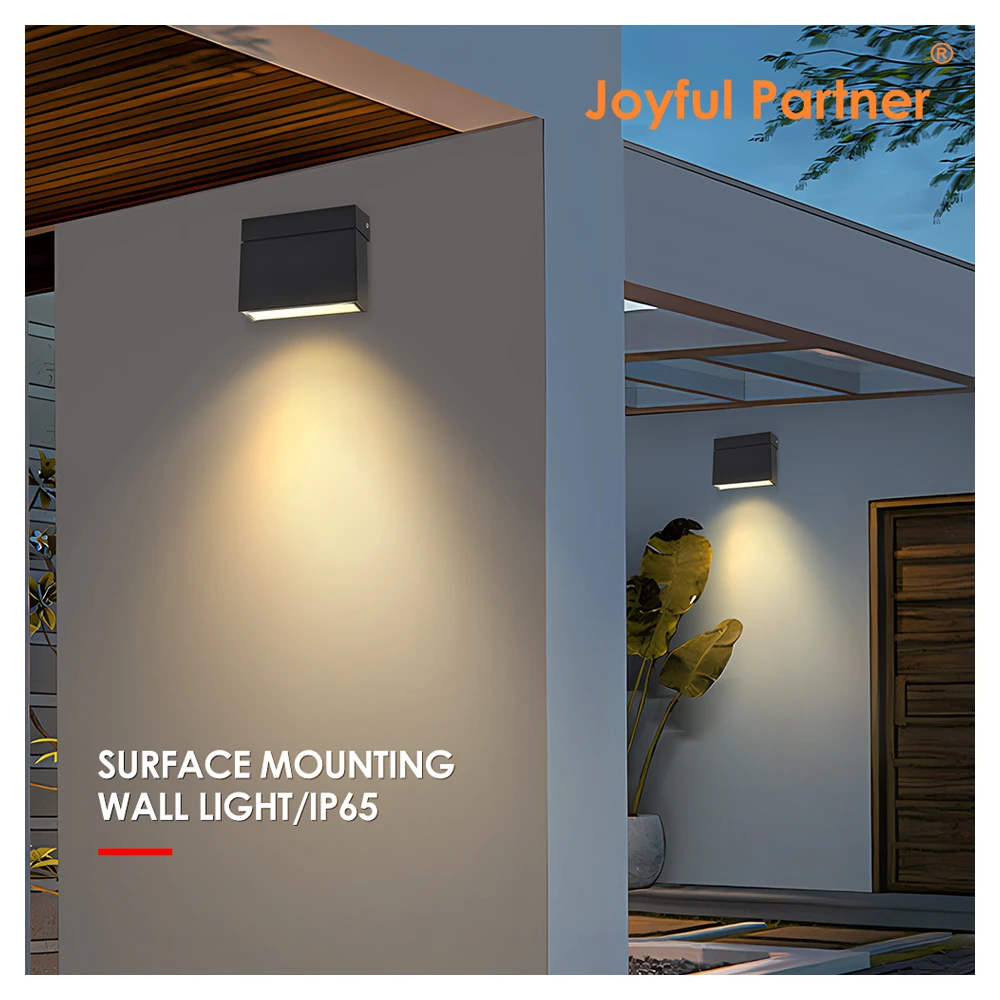

Ideal for outdoor use, this LED wall lamp combines square styling with waterproof protection for garden and corridor paths alike.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
CLL152051 |
5*1W LED |
15°/24°/36° |
5W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLL152051 |
5*1W LED |
15°/24°/36° |
5W |
DC12V/DC24V AC220V/AC240V |
06 |
|
CLL152052 |
5*2W LED |
15°/24°/36° |
10W |
DC12V/DC24V AC220V/AC240V |
06 |
|
WLL152052 |
5*2W LED |
15°/24°/36° |
10W |
DC12V/DC24V AC220V/AC240V |
06 |
Material Specifications Table
|
Item |
Description |
|
Housing Material |
Casting aluminum |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
SMD LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.5m (high voltage) |
