IP67 LED Ultra thin side-emitting Underground Light Stainless Steel 10.0W DIA 172MM OSRAM SMD LED Single Color for Commercial Parking Ultra thin side-emitting Underground Light/Driver-over LED Light
Waterproof Rating: IP67
Material: Pure aluminum 6063# housing with Hard chrome plate 304# or 316# Stainless Steel trim
Model: XE826307UM Series
Certification: IP67, RoHS, CE
Professional-grade ultra-thin side-emitting underground light designed for heavy-duty driver-over and architectural applications.
Features a high-strength 6063# pure aluminum housing with premium 304# or 316# stainless steel trim for long-lasting performance.

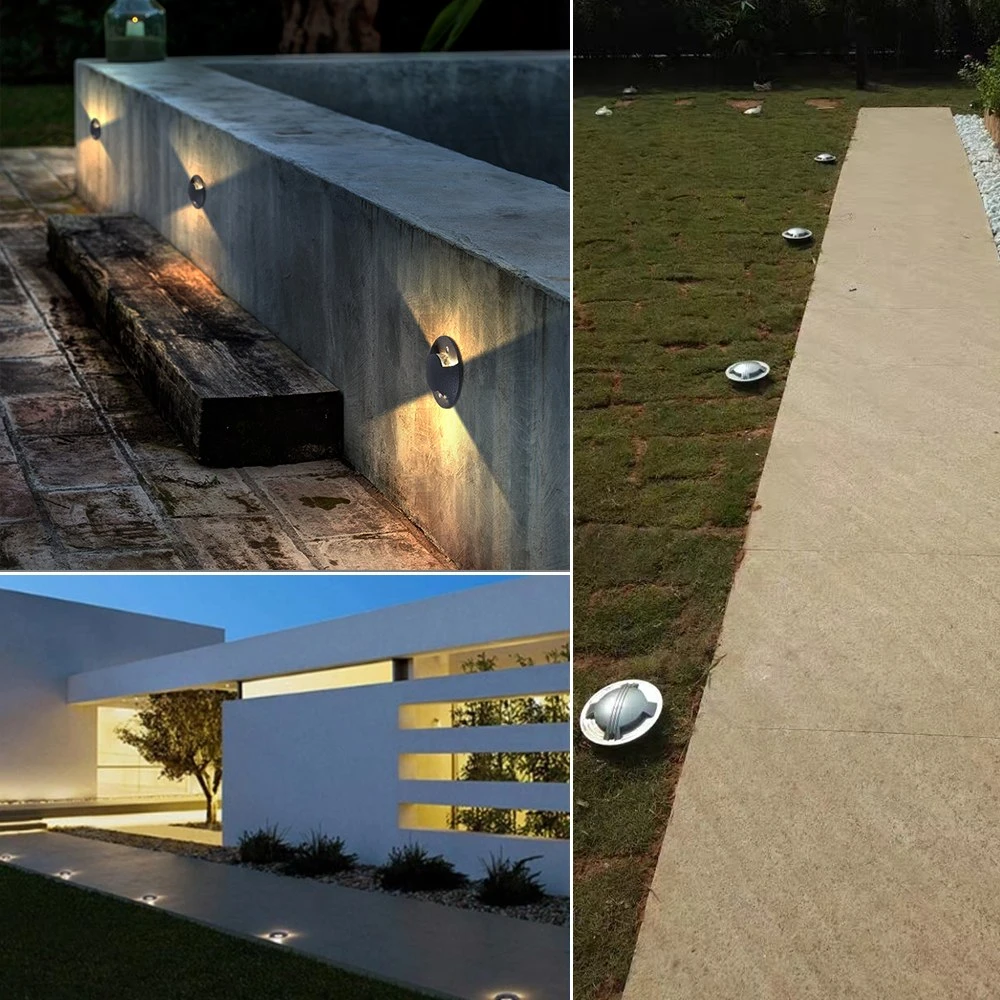

Integrated with high-performance OSRAM SMD LEDs delivering a powerful 10W output for architectural facade and path lighting.
Engineered for safety with an IK10 impact resistance rating and a massive pressure capacity of >2000kgs.
Fully IP67 waterproof rated with molding shaped silicone seals, ideal for wet and harsh outdoor environments.

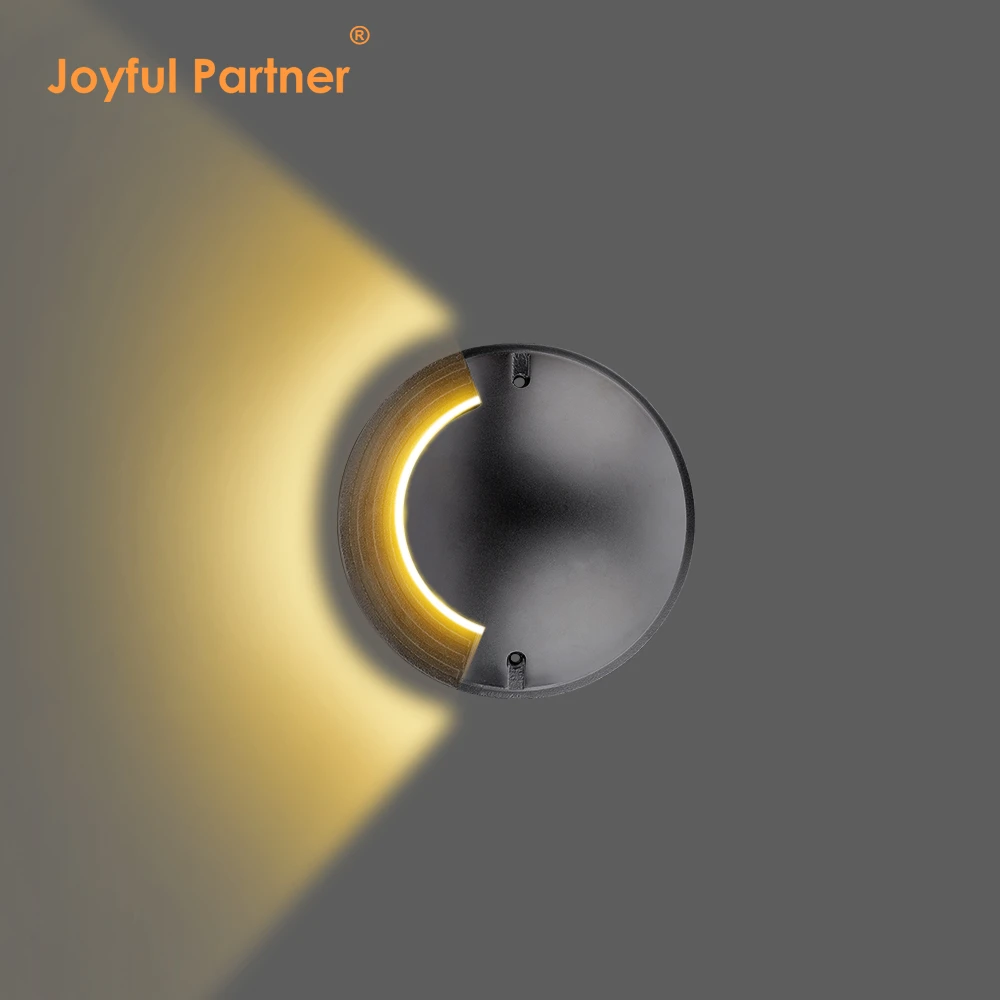

Versatile lighting options with 1, 2, or 4 window configurations to create customized light distribution on the ground.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E826307UM |
OSRAM SMD LED |
One window |
10.0 |
DC24V |
10 |
|
2E826307UM |
OSRAM SMD LED |
Two windows |
10.0 |
DC24V |
10 |
|
4E826307UM |
OSRAM SMD LED |
Four windows |
10.0 |
DC24V |
10 |

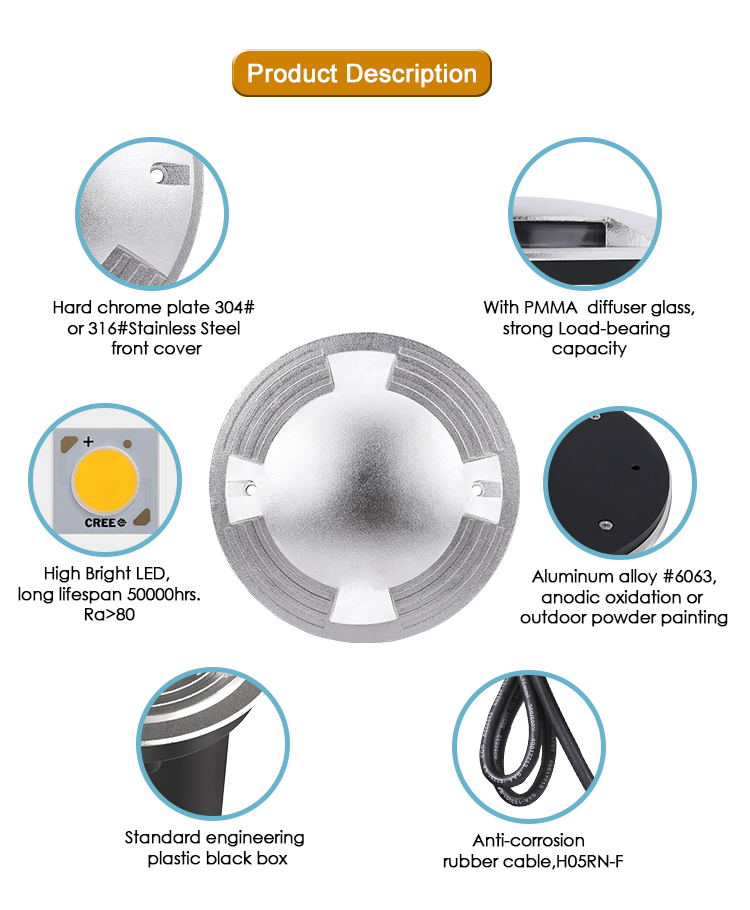

Material Specifications Table
|
Item |
Description |
|
Housing |
Pure aluminum 6063# housing, outdoor powder painted or anti-UV anodized |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Diffuser |
PMMA |
|
Pressure capacity |
> 2000kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
PVC |
