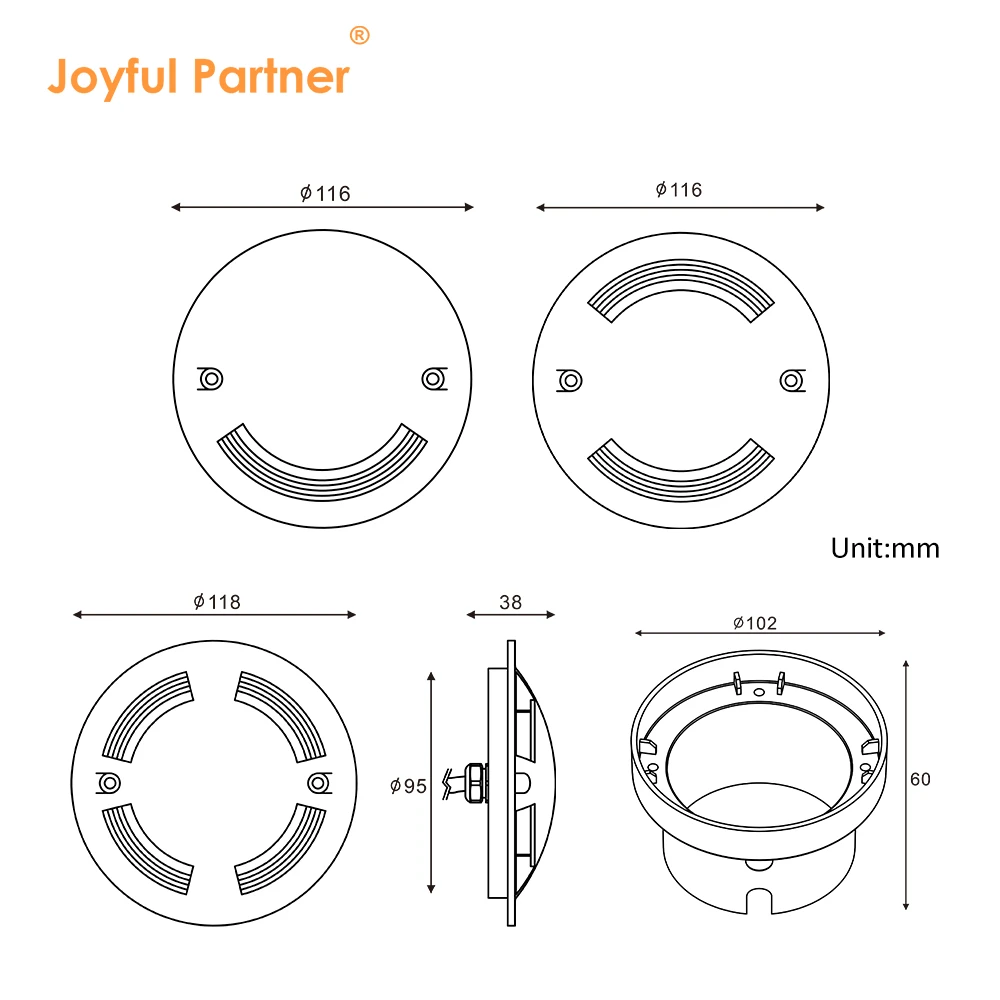

IP67 LED Ultra thin side-emitting Underground Light Stainless Steel 6.0W DIA 116MM OSRAM SMD LED Single Color for Commercial Driveway Ultra thin side-emitting Underground Light/Driver-over LED Light
Waterproof Rating: IP67

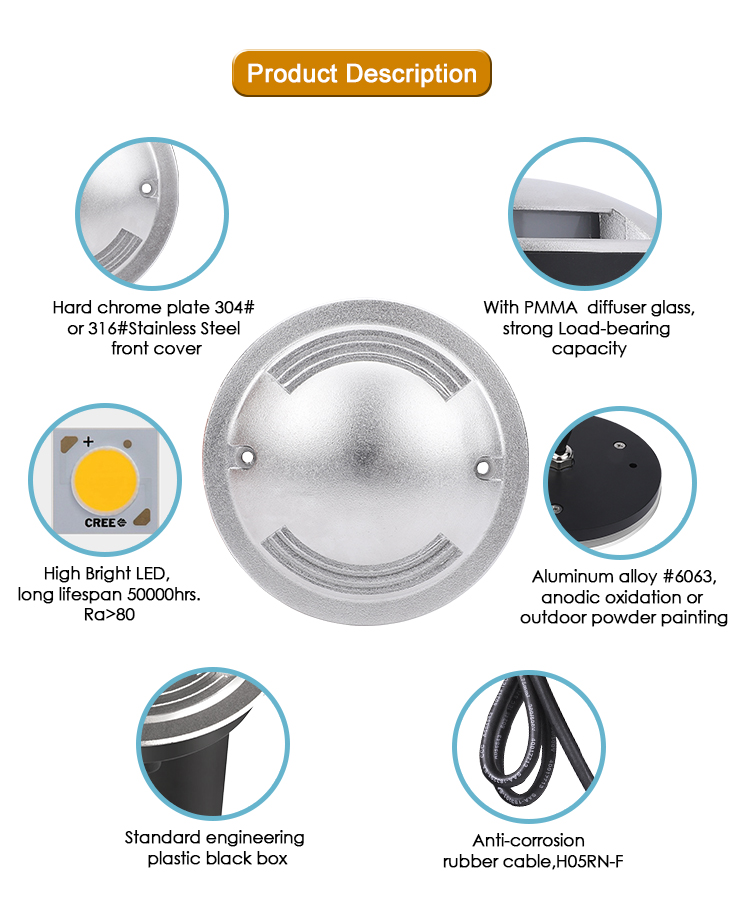

Material: Pure aluminum 6063# housing with Hard chrome plate 304# or 316# Stainless Steel trim
Model: XE825187UM Series
Certification: IP67, RoHS, CE

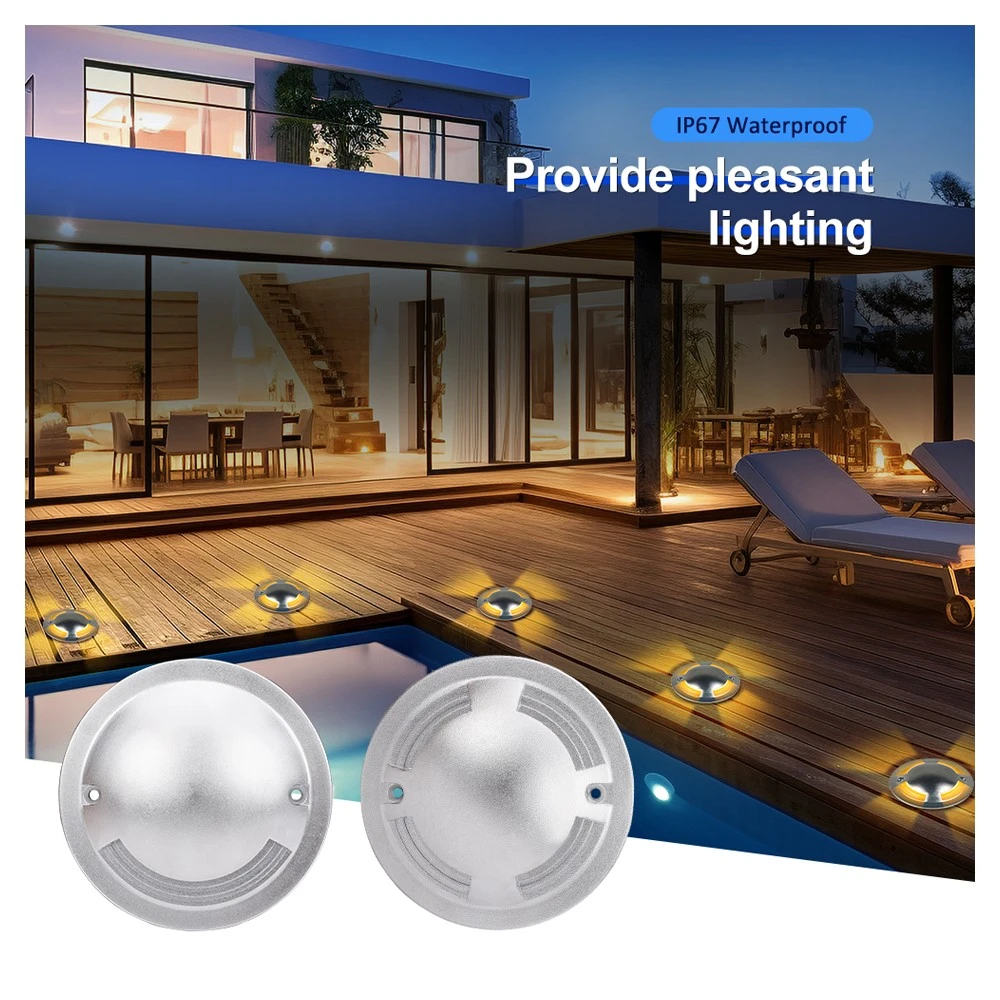

High-performance ultra-thin side-emitting underground light designed for professional driver-over and architectural applications.
Features a premium 304# or 316# stainless steel trim and robust 6063# aluminum housing for extreme outdoor durability.

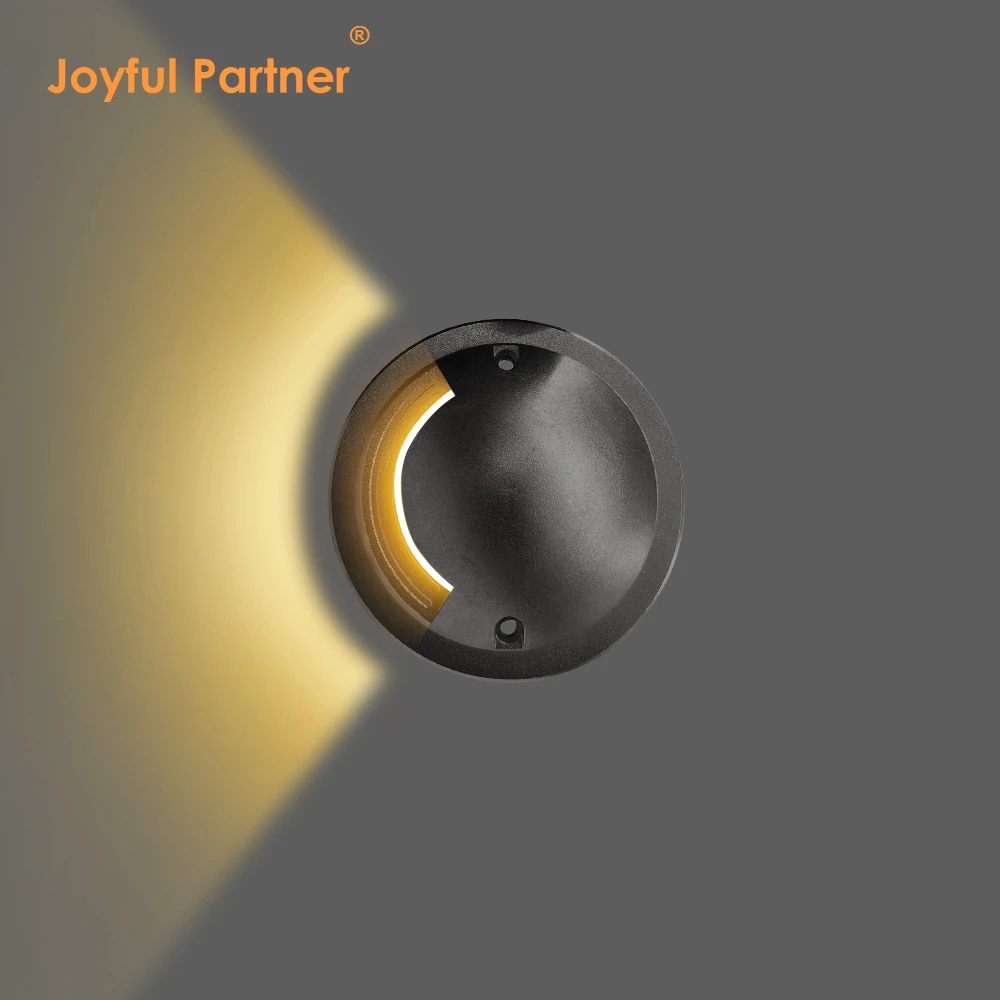

Equipped with high-efficiency OSRAM SMD LEDs providing a powerful 6W output with a unique side-emitting light distribution.
Engineered with a specialized PMMA diffuser and multiple window options (1/2/4 windows) for diverse path lighting effects.
Certified with IP67 waterproof protection and an IK10 impact rating, capable of withstanding heavy pressure >1800kgs.

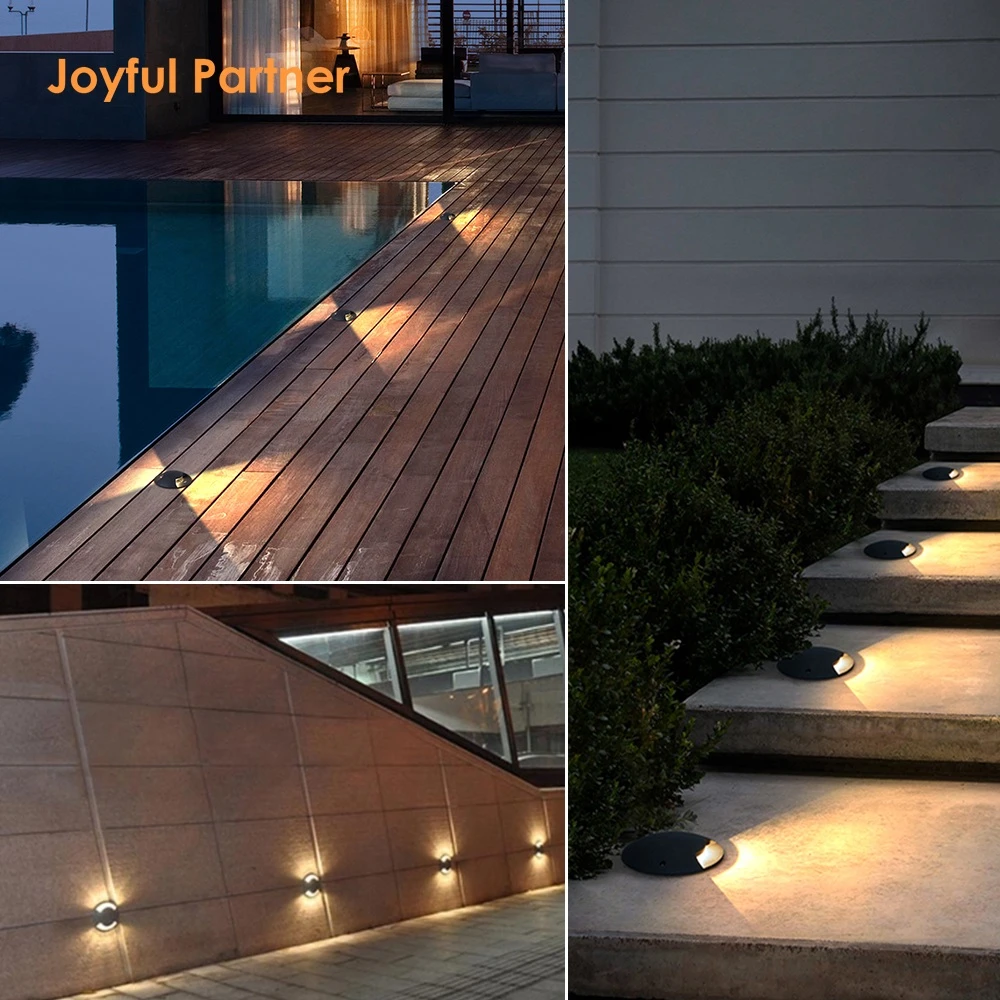

Simplified installation in high-traffic commercial environments with a durable PVC mounting sleeve and integrated design.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E825187UM |
OSRAM SMD LED |
One window |
6.0 |
DC24V |
10 |
|
2E825187UM |
OSRAM SMD LED |
Two windows |
6.0 |
DC24V |
10 |
|
4E825187UM |
OSRAM SMD LED |
Four windows |
6.0 |
DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|

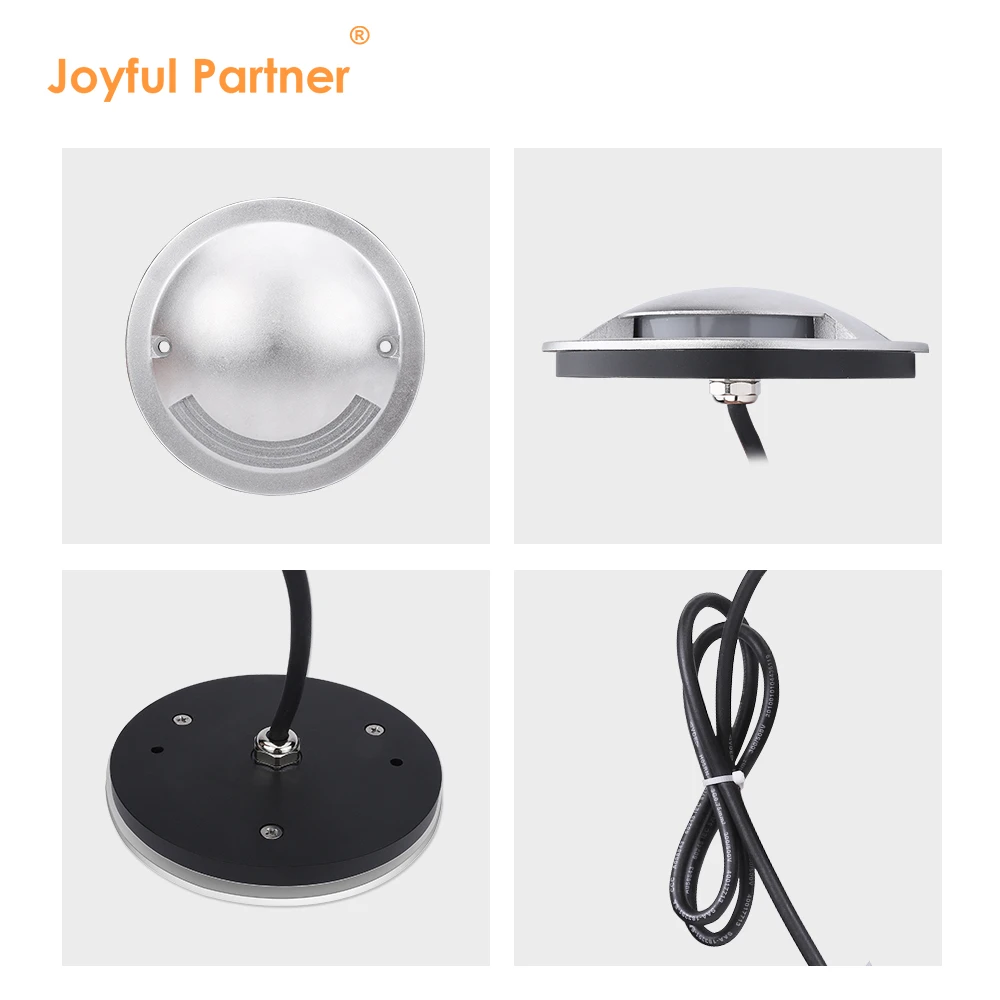

Housing |
Pure aluminum 6063# housing, outdoor powder painted or anti-UV anodized |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Diffuser |
PMMA |
|
Pressure capacity |
> 1800kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
PVC |
