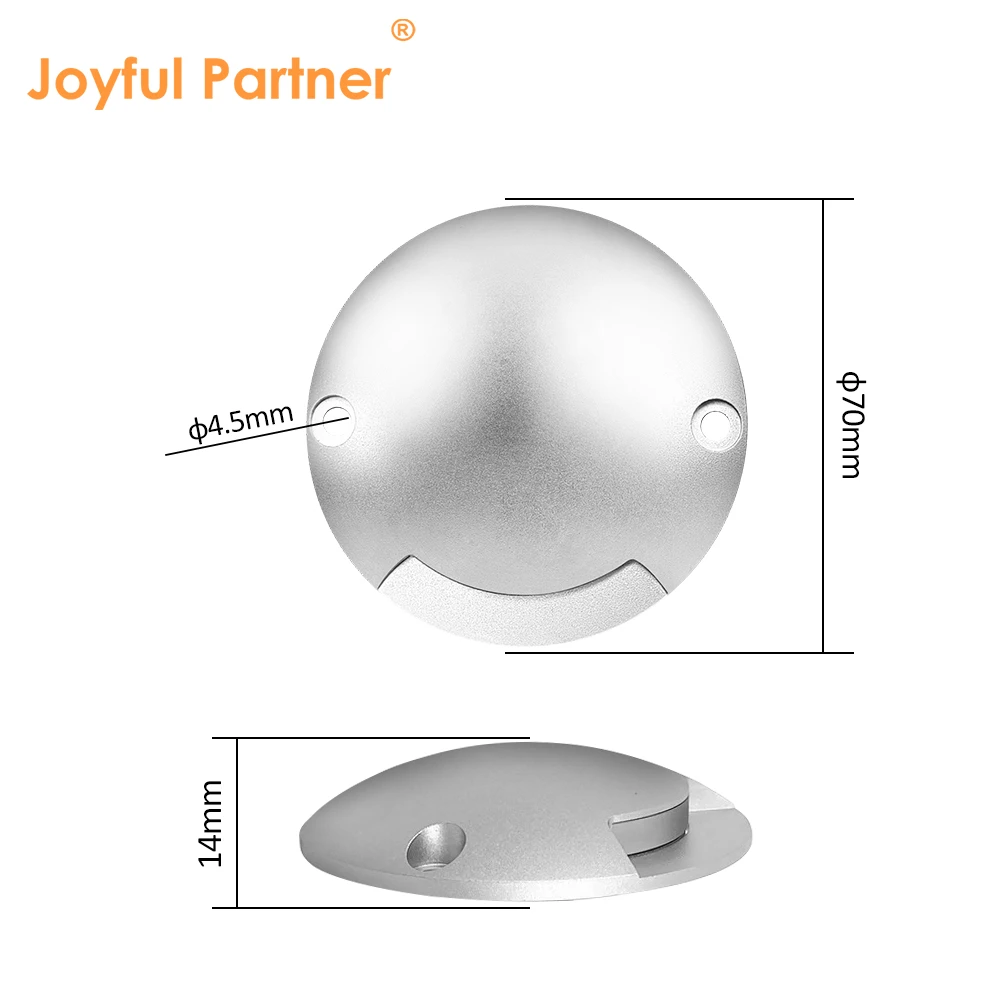

1EC84337（Ø70）
Waterproof Rating: IP67
Material: Pure aluminum 6063#
Model: XEC84337 / XEC84337 Series
Certification: IP67, RoHS, CE
Professional ultra-thin LED step light designed for sleek architectural and pathway illumination.
Constructed with high-quality pure 6063# aluminum housing with outdoor-grade powder coating or anti-UV anodized finish.
Equipped with a 5mm thick PMMA diffuser providing uniform and glare-free light distribution.

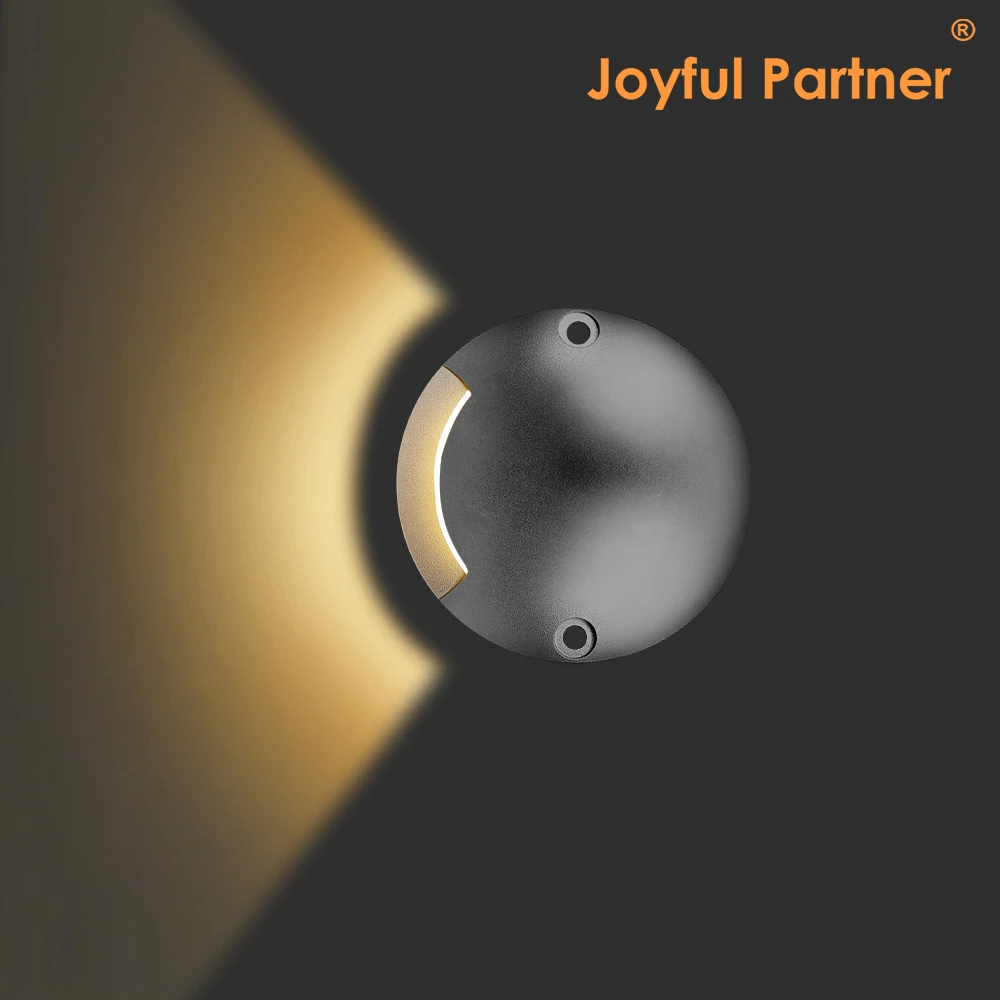

Features specialized window designs (One window or Two windows) for creative lighting patterns on the ground.

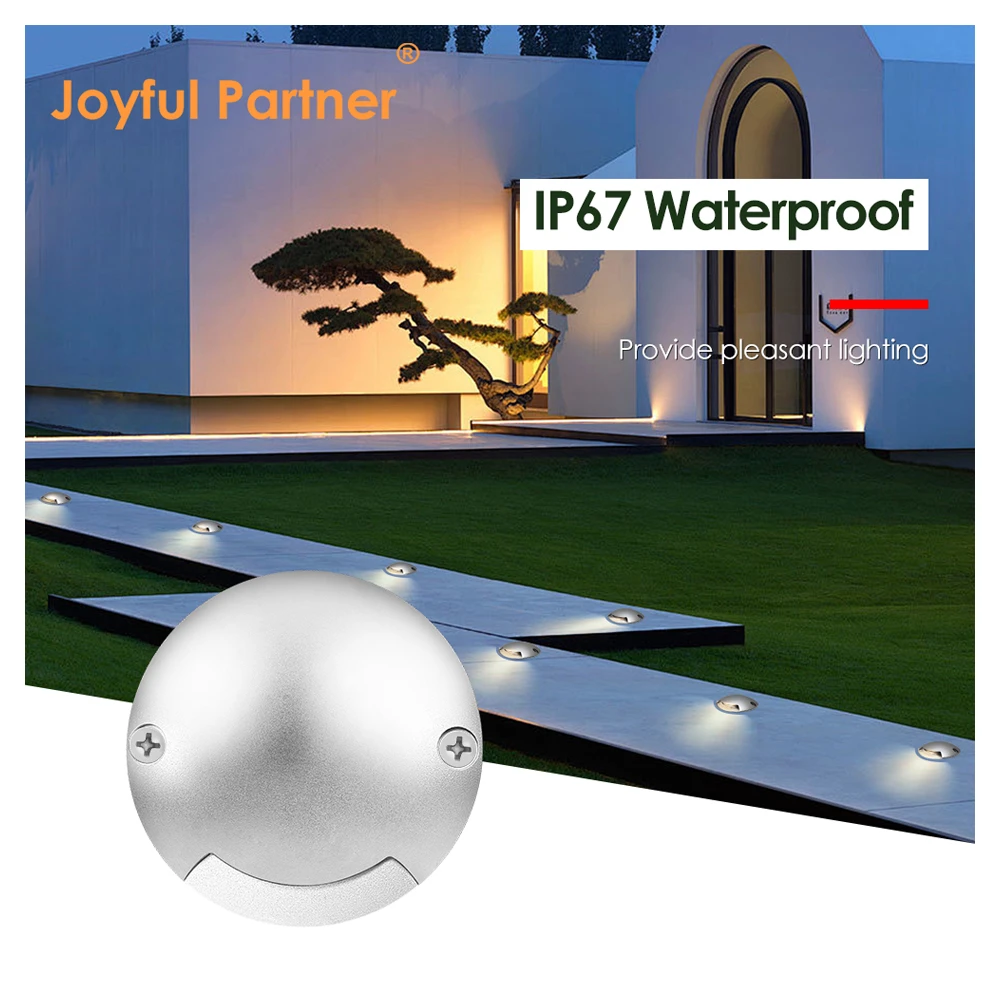

Certified with IP67 waterproof rating and IK08 impact resistance for reliable outdoor performance in all weather conditions.

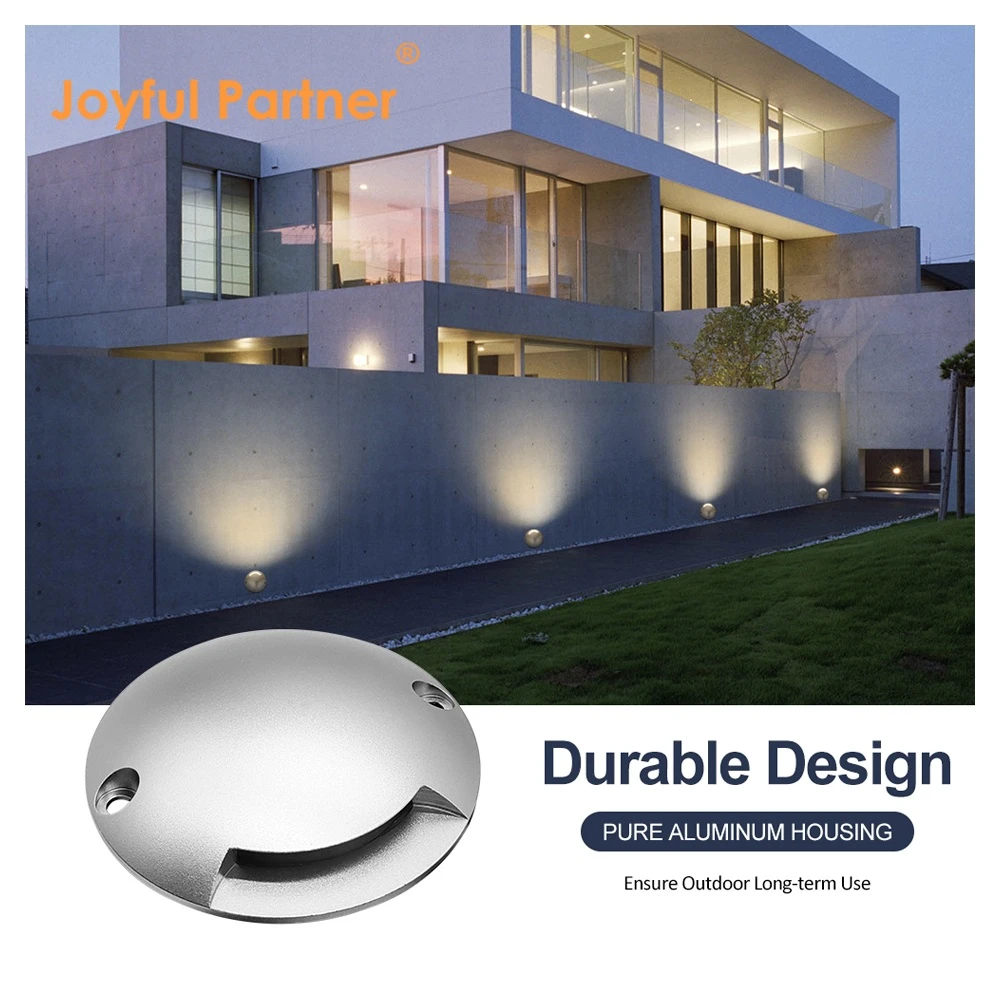

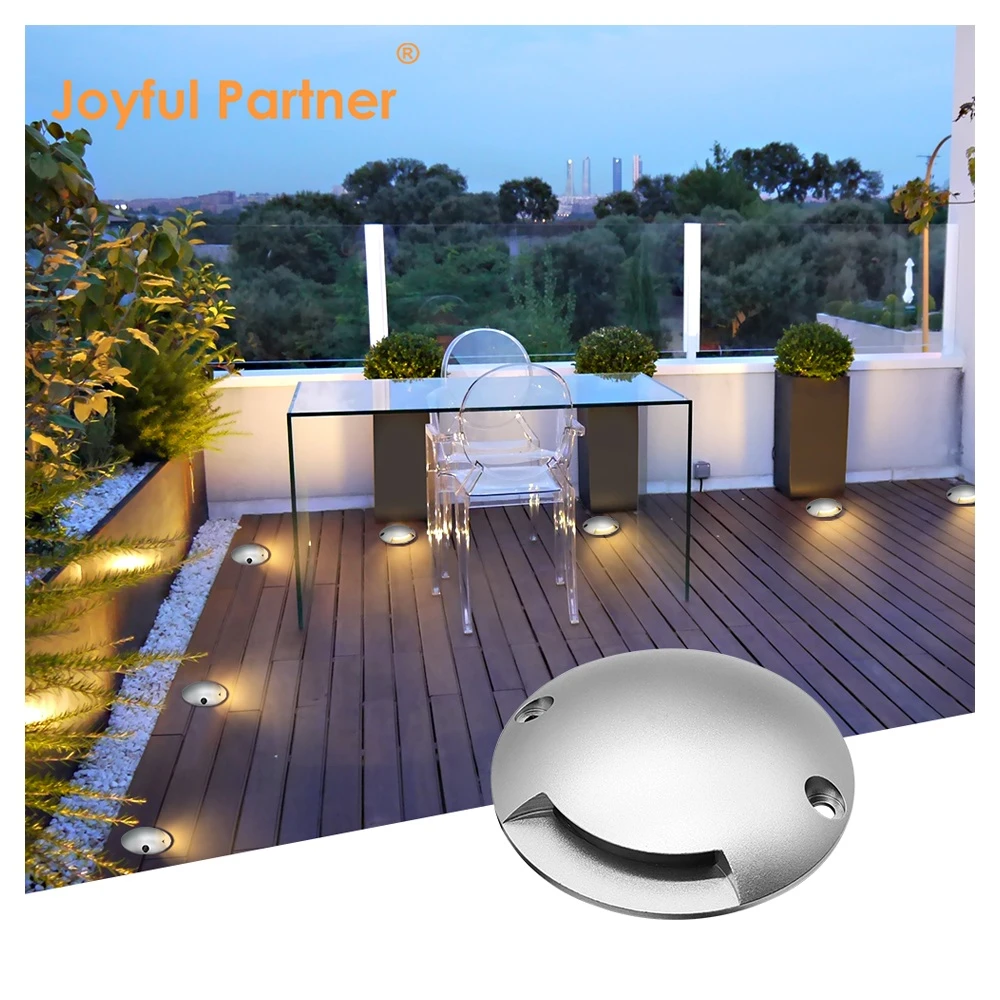

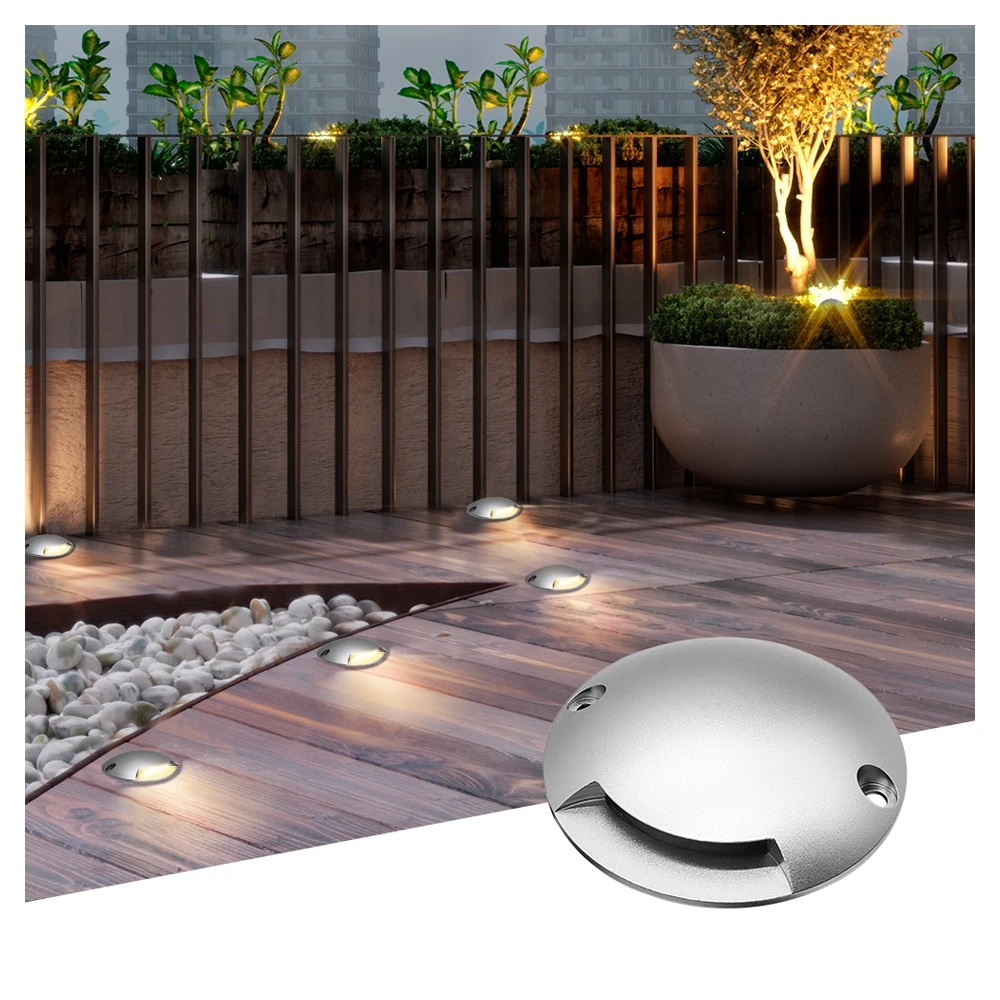

Ideal for surface mounting on stairs, decks, and pathways to enhance nighttime safety and aesthetics without deep recession.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1EC84337 |
3xSMD2835 |
One window |
1.5W |
DC12V/DC24V |
08 |
|
2EC84367 |
6xSMD2835 |
Two windows |
3W |
DC12V/DC24V |
08 |
Material Specifications Table
|
Item |
Description |
|
Housing&face cover |
Pure aluminum 6063#, outdoor powder painted or anti-UV anodized |
|
Diffuser |
PMMA T=5mm |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) |
