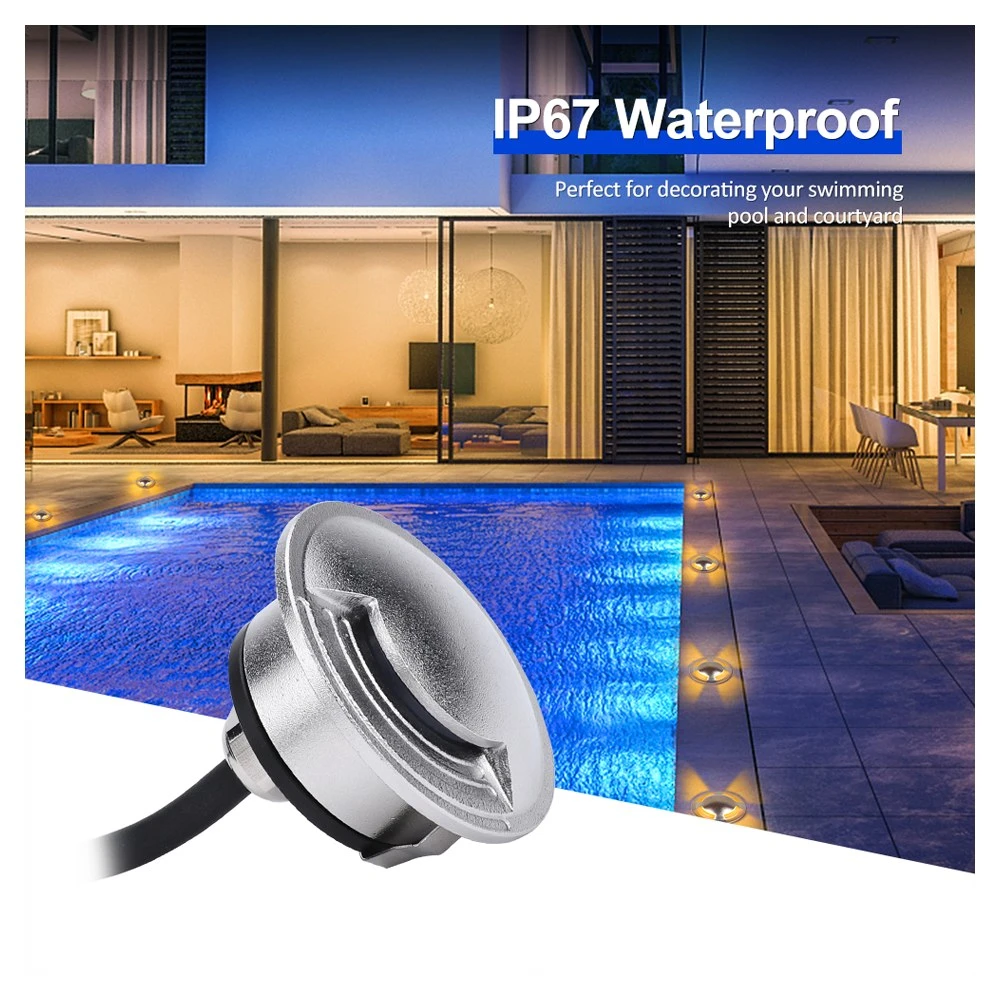

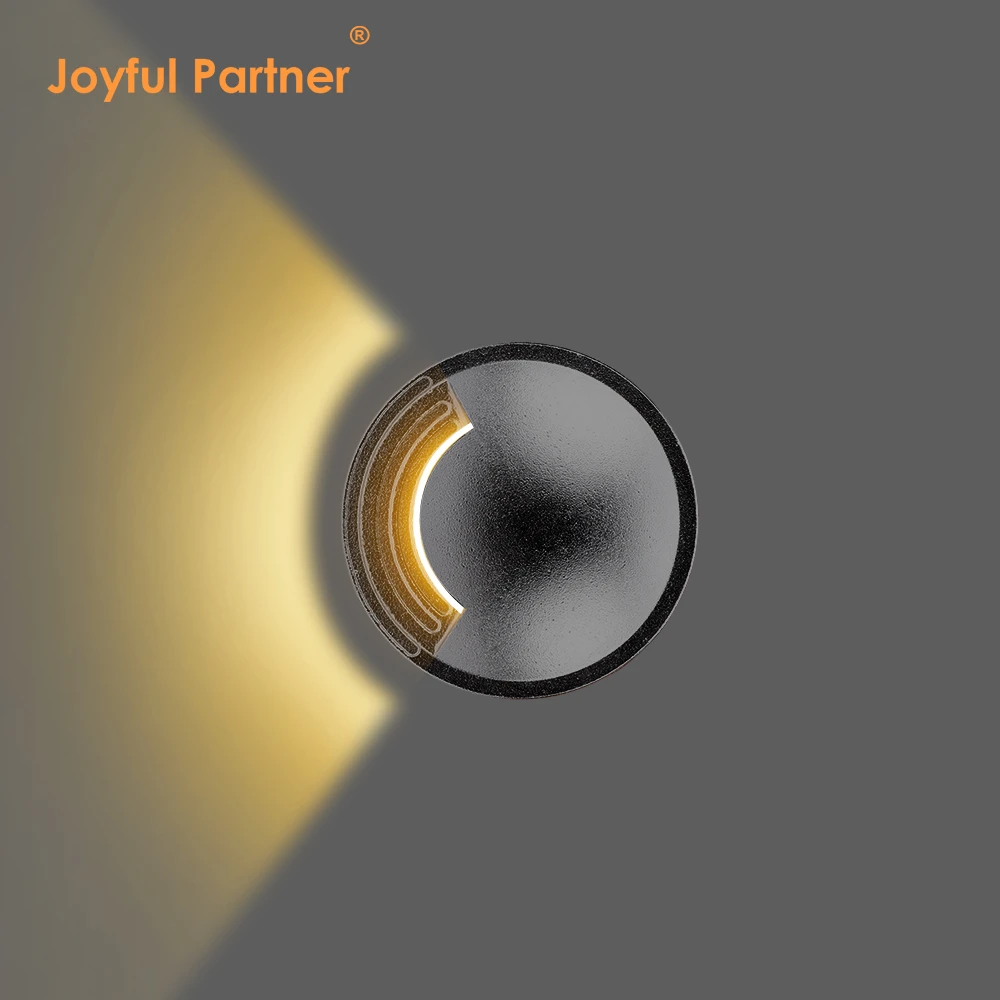

IP67 LED Ultra-thin Underground Light Stainless Steel 2.0W DIA 55MM 1x2W LED for Modern Deck Step Ultra-thin LED Underground Light/LED Deck Light
Waterproof Rating: IP67
Material: Pure aluminum 6063# housing with Hard chrome plate 304# or 316# Stainless Steel trim
Model: XE82512UM Series
Certification: IP67, RoHS, CE

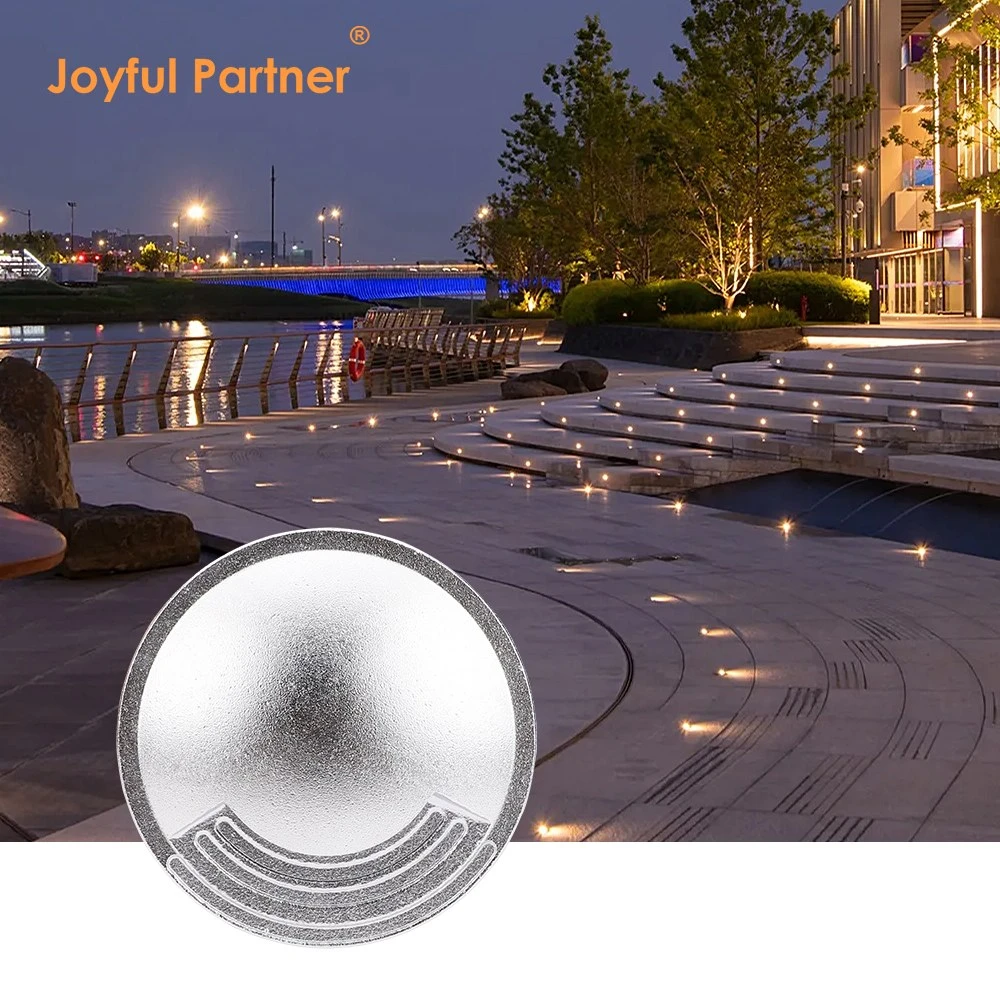

Professional ultra-thin LED underground light designed for recessed deck and step lighting with a sleek low-profile aesthetic.
Constructed with pure 6063# aluminum housing and premium 304#/316# stainless steel trim for superior durability.
Equipped with a high-impact PMMA diffuser providing uniform and glare-free illumination in multiple window configurations.
Engineered with a robust pressure capacity of >1200kgs and IK10 impact resistance for safe use in high-traffic pedestrian areas.
Fully IP67 waterproof rated with molding shaped silicone seals to ensure long-term reliability in wet outdoor environments.
Includes a specialized aluminum back box for simplified installation in concrete or wood decking applications.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E82512UM |
1x2W LED |
One window |
2.0 |
DC12V/DC24V |
10 |
|
2E82512UM |
1x2W LED |
Two windows |
2.0 |
DC12V/DC24V |
10 |
|
4E82512UM |
1x2W LED |
Four windows |
2.0 |
DC12V/DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Pure aluminum 6063# housing, outdoor powder painted or anti-UV anodized |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Diffuser |
PMMA |
|
Pressure capacity |
> 1200kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
Aluminum back box |
