IP67 LED Ultra-thin Underground Light Stainless Steel 2.4W DIA 70MM OSRAM SMD LED Single Color for Modern Pathway Step Ultra-thin LED Underground Light/LED Deck Light
Waterproof Rating: IP67

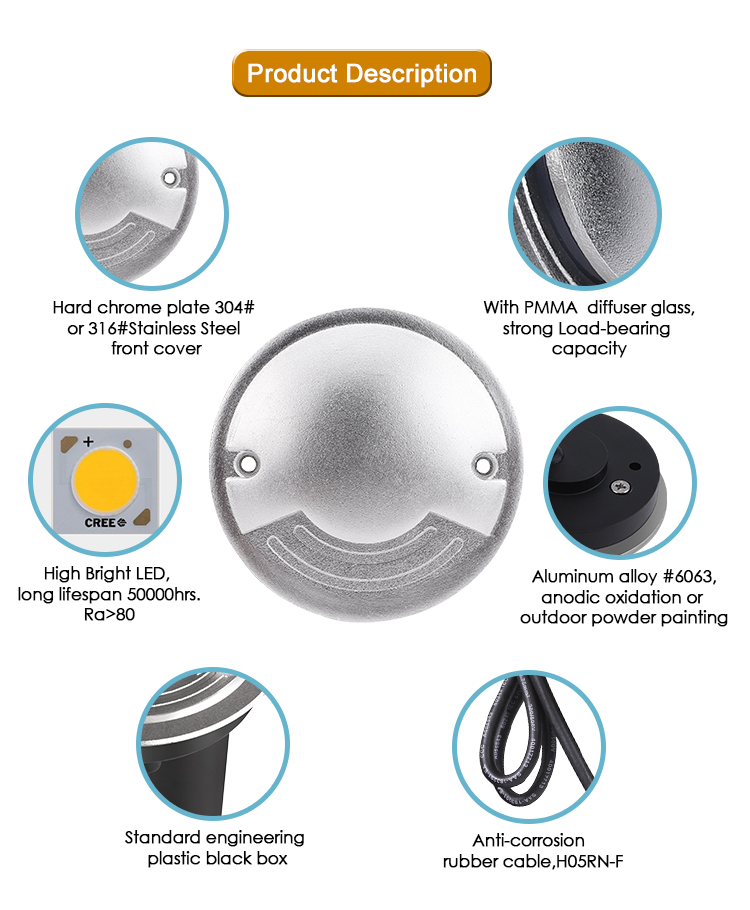

Material: Pure aluminum 6063# housing with Hard chrome plate 304# or 316# Stainless Steel trim
Model: XE84367UM Series
Certification: IP67, RoHS, CE
Advanced ultra-thin LED underground light designed for sophisticated architectural pathway and deck illumination.
Features a high-strength 6063# pure aluminum housing with a premium 304# or 316# stainless steel trim.
Equipped with high-performance OSRAM SMD LEDs for efficient 2.4W output and consistent light quality.

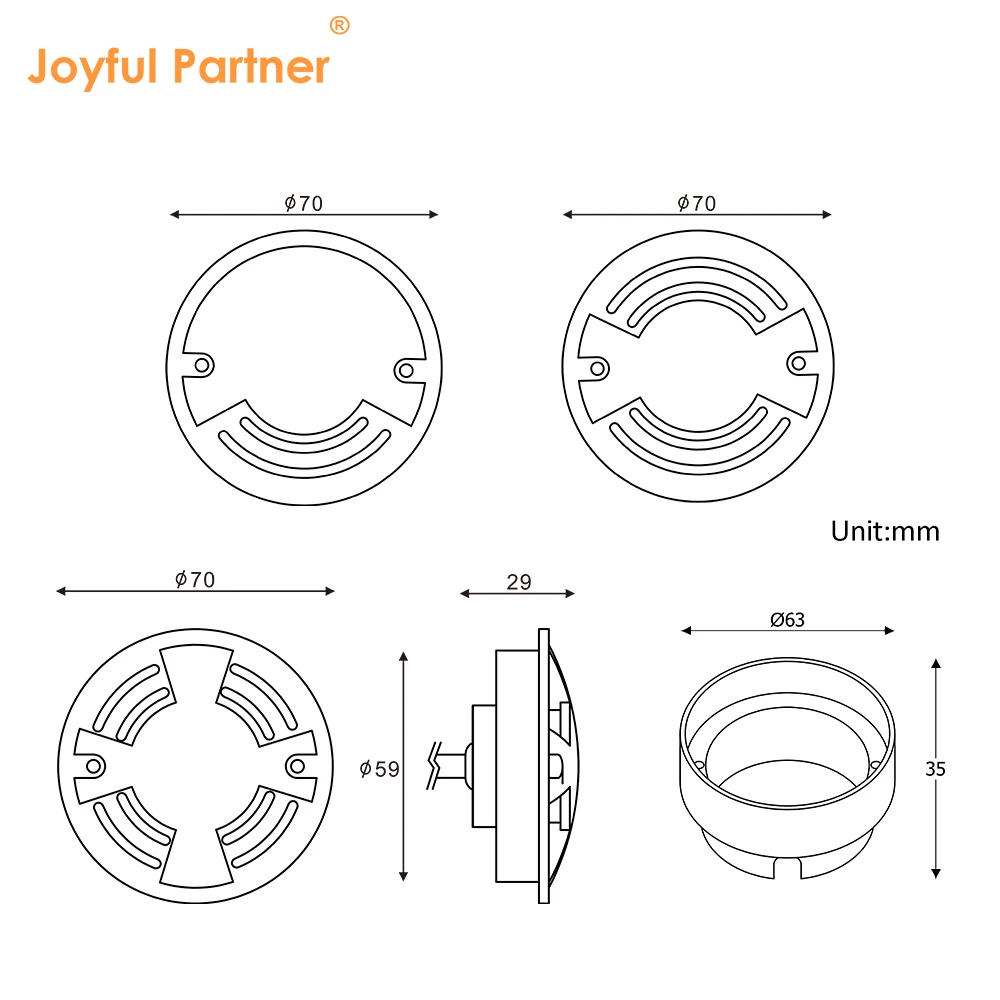

Specialized PMMA diffuser and multiple window options (1/2/4 windows) for diverse light distribution effects.
Engineered for high-traffic safety with a robust pressure capacity of >1500kgs and IK10 impact resistance rating.
Fully IP67 waterproof rated with molding shaped silicone seals and durable PVC mounting sleeves for easy installation.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E84367UM |
OSRAM SMD LED |
One window |
2.4 |
DC24V |
10 |
|
2E84367UM |
OSRAM SMD LED |
Two windows |
2.4 |
DC24V |
10 |
|
4E84367UM |
OSRAM SMD LED |
Four windows |
2.4 |
DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Pure aluminum 6063# housing, outdoor powder painted or anti-UV anodized |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Diffuser |
PMMA |
|
Pressure capacity |
> 1500kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
PVC |
