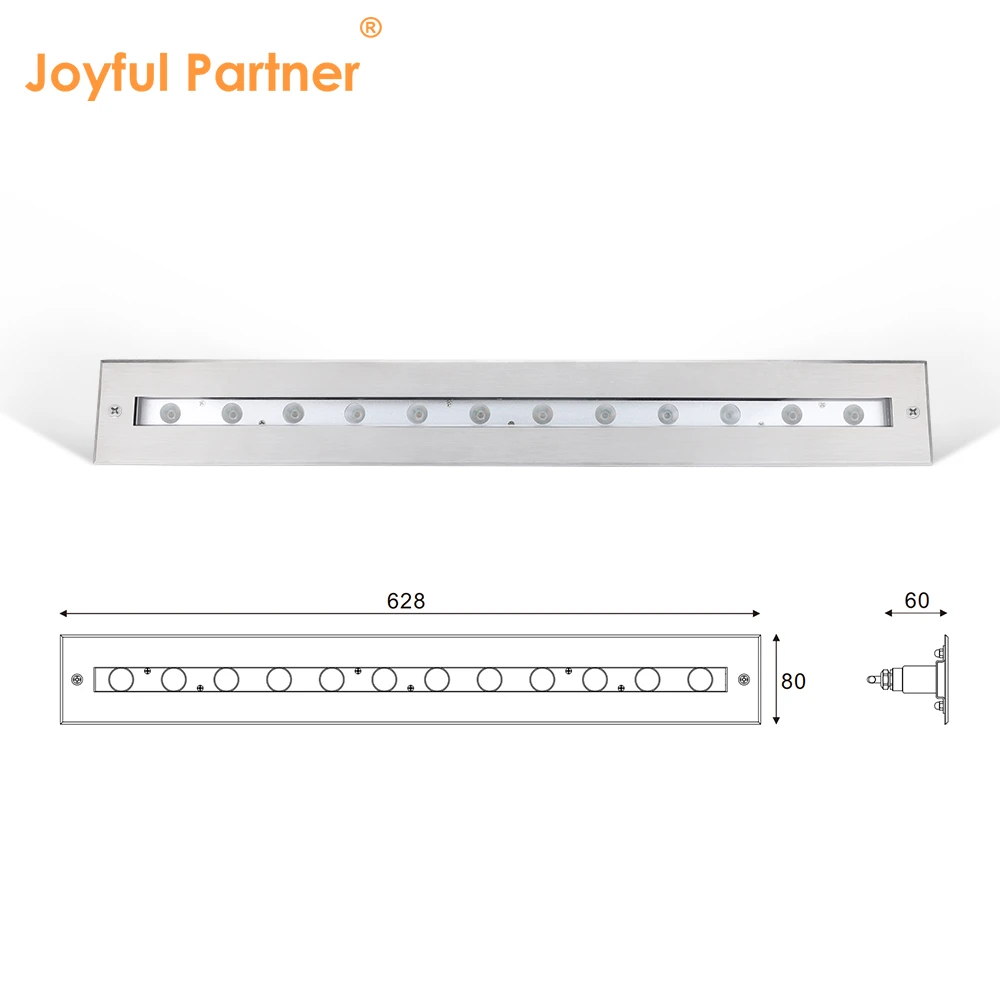

JPL58012X（L628*W80*H60mm）
Waterproof Rating: IP68
Material: Molding shaped 304 or 316L stainless steel
Model: JPL58012X Series
Certification: IP68, RoHS, CE
High-power linear underwater wall washer designed for professional architectural pool and waterfall illumination.
Constructed with marine-grade SUS 316L# stainless steel to ensure superior corrosion resistance in submerged environments.
Equipped with 8mm thick tempered step glass and high-efficiency optical lenses (≥85%) for precise beam control.
Features a versatile range of beam angles from 8° to 60°, including asymmetrical lens options for uniform facade lighting.
Supports high-wattage configurations up to 72W, delivering powerful lumen output for large-scale commercial water features.
Reliable IP68 submersible performance guaranteed by molding shaped silicone seals and specialized H05RN-F underwater cables.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPL580121 |
12x1W LED |
8°/12°/25°/40°/60° |
12.0 |
DC24V |
08 |
|
JPL580122 |
12x2W LED |
8°/12°/25°/40°/60° |
24.1 |
DC24V |
08 |
|
JPL580126 |
12x2W RGB3in1 LED |
8°/12°/25°/40°/60° |
24.0 |
DC24V |
08 |
|
JPL580129 |
12x2W RGBW4in1 LED |
8°/12°/25°/40°/60° |
24.0 |
DC24V |
08 |
|
JPL980241 |
24x1W LED |
8°/12°/25°/40°/60° |
24.0 |
DC24V |
08 |
|
JPL980242 |
24x2W LED |
8°/12°/25°/40°/60° |
24.2 |
DC24V |
08 |
|
JPL980246 |
24x2W RGB3in1 LED |
8°/12°/25°/40°/60° |
48.0 |
DC24V |
08 |
|
JPL980249 |
36x2W RGBW4in1 LED |
8°/12°/25°/40°/60° |
72.0 |
DC24V |
08 |

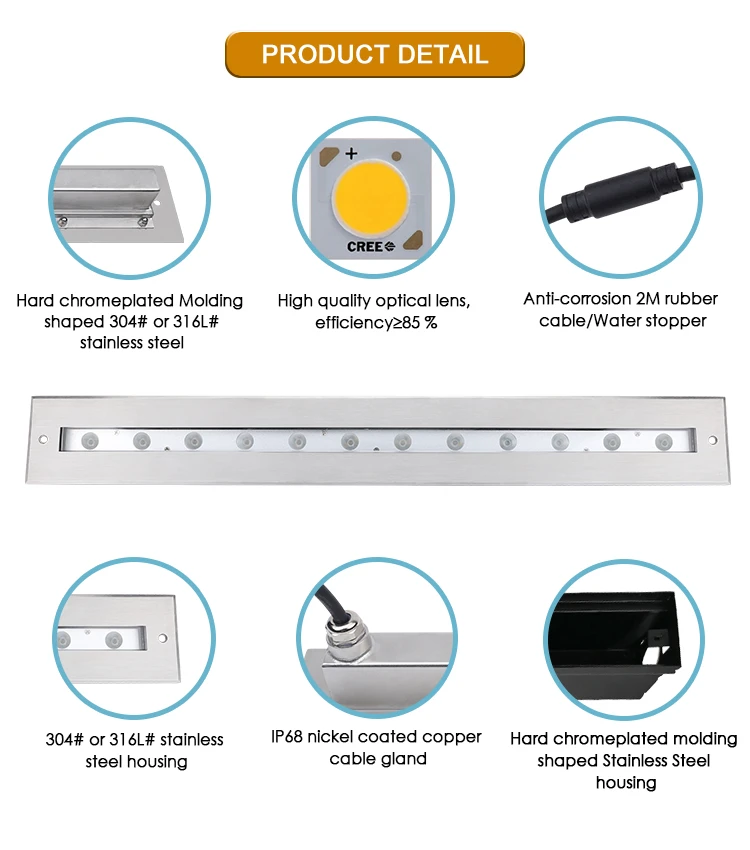

Material Specifications Table
|
Item |
Description |
|
Material |
Hard chrome plated Molding shaped stainless steel SUS 316# |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=2m(for single color) / H05RN-F 4x0.75mm² L=2m(for RGB) / H05RN-F 5x0.75mm² L=2m(for RGBW) |
|
Mounting sleeve |
PVC or Stainless Steel |
