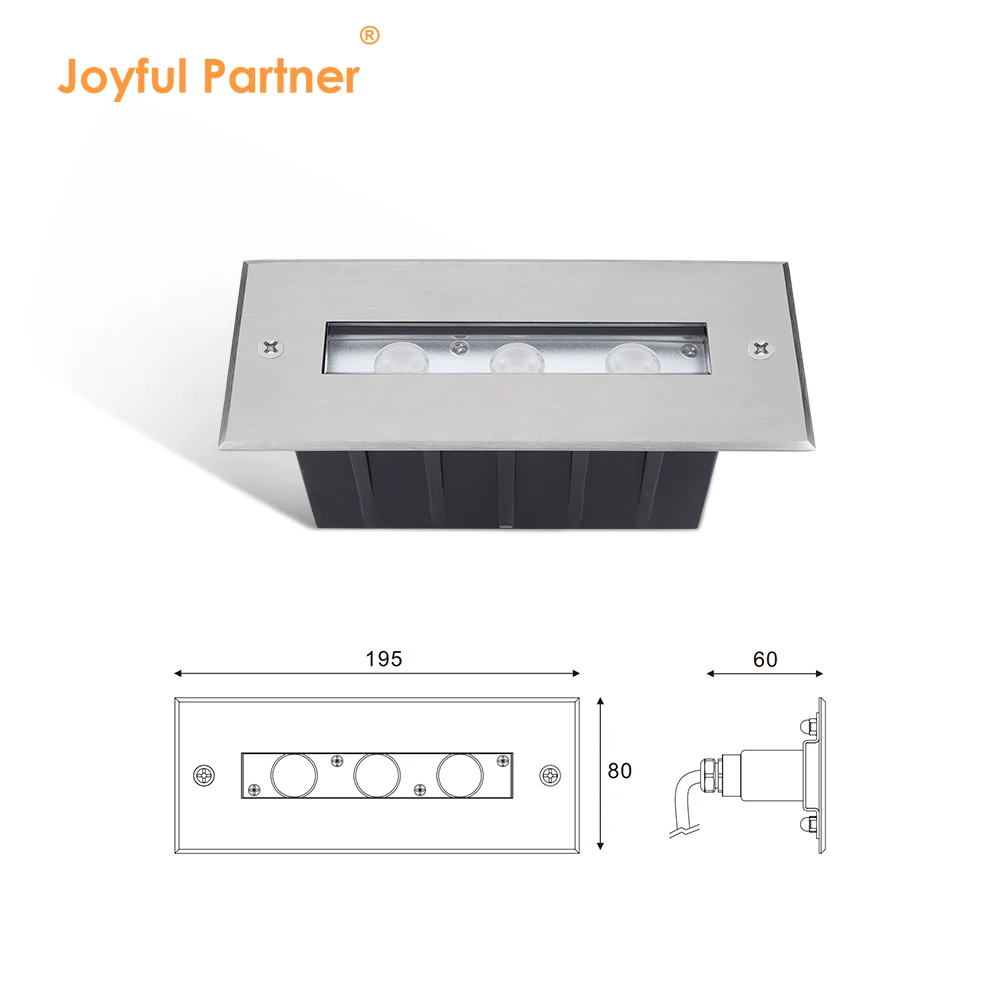

JPL1453X（L195*W80*H60mm）
Waterproof Rating: IP68
Material: Molding shaped 304 or 316L stainless steel
Model: JPL1453X Series
Certification: IP68, RoHS, CE

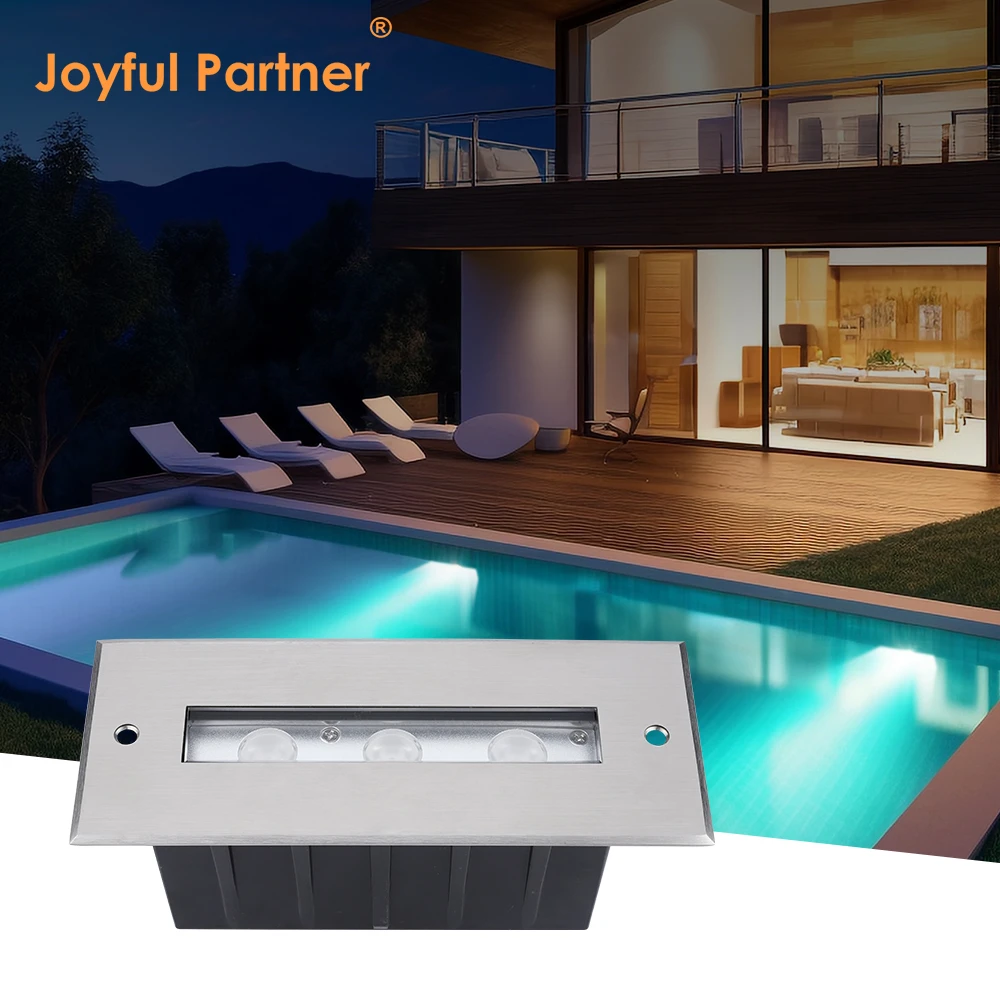

Professional linear underwater light designed for high-end pool wall recessed and waterfall lighting projects.
Constructed with superior 304 or 316 stainless steel for corrosion resistance in salt or chlorinated water.
Features 8mm thick tempered step glass and IK08 impact rating for maximum structural integrity in aquatic environments.
High-efficiency optical lenses (≥85%) offering beam angles from 8° to 60° .
Reliable IP68 waterproof performance provided by molding shaped silicone seals and specialized H05RN-F underwater cables.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
JPL14531 |
3X1W LED |
8°/12°/25°/40°/60° |
3.0 |
DC24V |
08 |
|
JPL14532 |
3X2W LED |
8°/12°/25°/40°/60° |
6.1 |
DC24V |
08 |
|
JPL14536 |
3x2W RGB3in1 LED |
8°/12°/25°/40°/60° |
6.0 |
DC24V |
08 |
|
JPL28061 |
6x1W LED |
8°/12°/25°/40°/60° |
6.0 |
DC24V |
08 |
|
JPL28062 |
6x2W LED |
8°/12°/25°/40°/60° |
12.1 |
DC24V |
08 |
|
JPL28066 |
6x2W RGB3in1 LED |
8°/12°/25°/40°/60° |
12.0 |
DC24V |
08 |

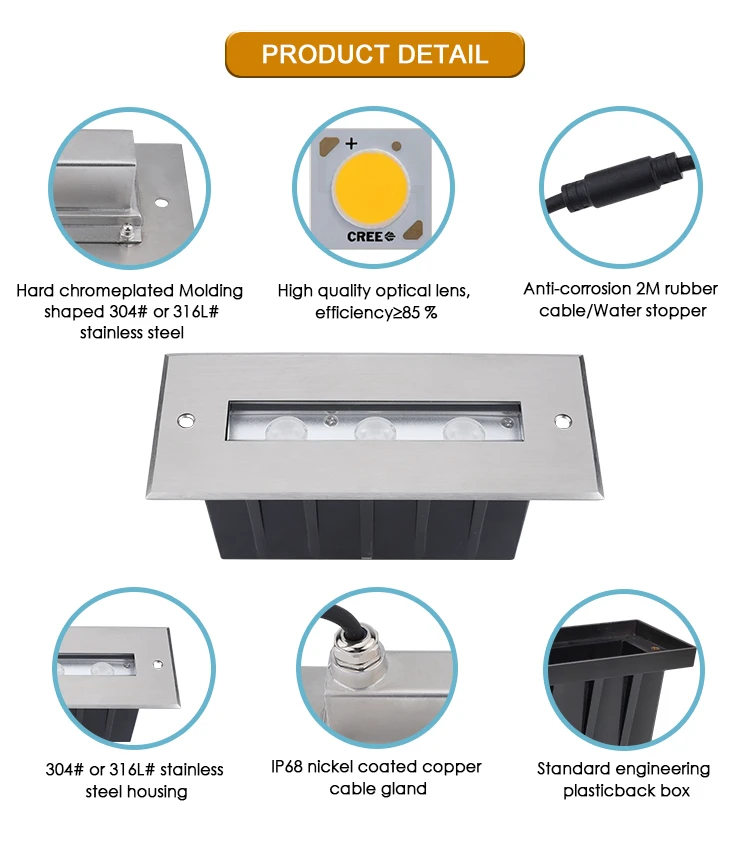

Material Specifications Table
|
Item |
Description |
|
Material |
Hard chromeplated Molding shaped stainless steel SUS 316L# |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=8mm |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=2m(for single color) / H05RN-F 4x0.75mm² L=2m(for RGB) / H05RN-F 5x0.75mm² L=2m(for RGBW) |
|
Mounting sleeve |
PVC or Stainless Steel |
