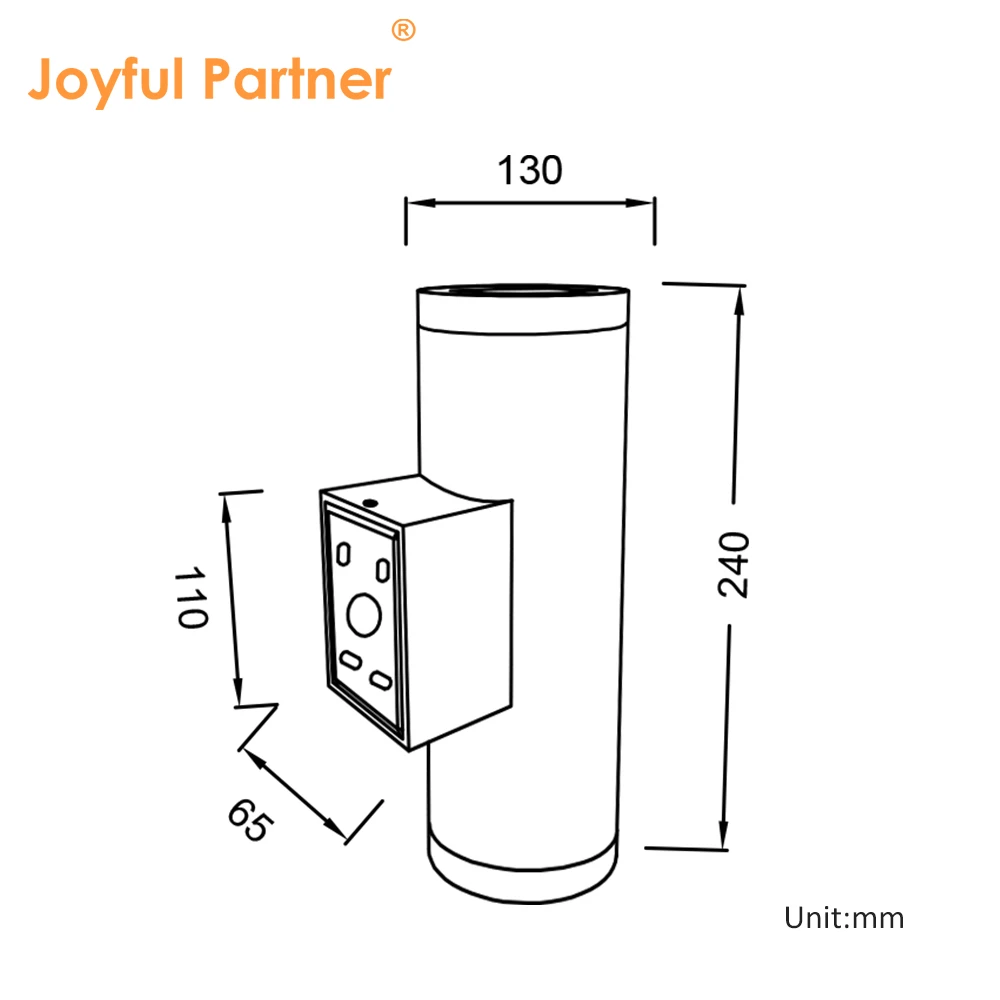

WL130358（Ø 130mm）
Waterproof Rating: IP65
Material: Extruded aluminum alloy
Model: WL130X8 Series
Certification: IP65, RoHS, CE

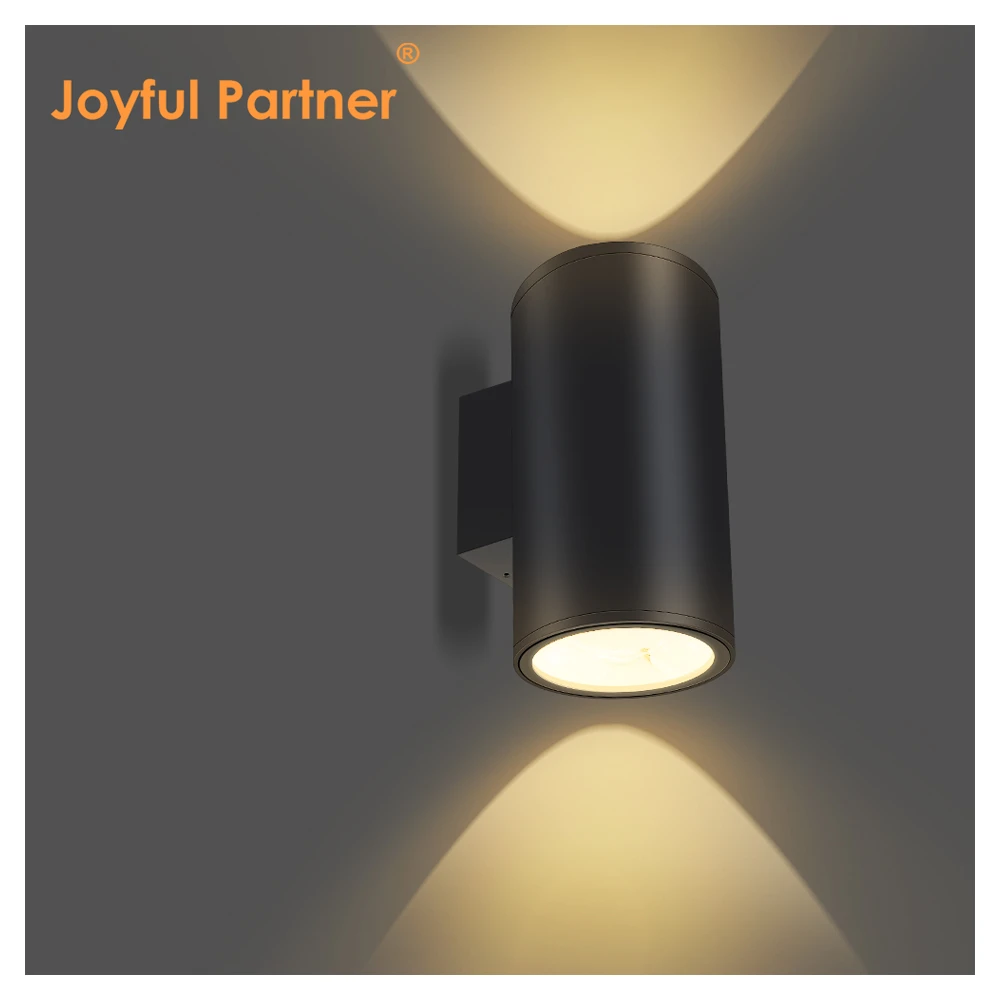

Available in single directional and up/down lighting configurations.
Made of die-cast aluminum housing for superior thermal management and durability.
Integrated with high-performance CREE COB LEDs delivering reliable and powerful architectural illumination.
Offer multiple beam angles (15°/24°/36°) for focused light control.
Certified IP65 waterproof protection and IK05 impact resistance, specifically engineered for harsh exterior use.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
WL130248 |
1*24W CREE COB |
15°/24°/36° |
24W |
DC12V/DC24V AC220V/AC240V |
05 |
|
WL130358 |
2*17W CREE COB |
15°/24°/36° |
35W |
DC12V/DC24V AC220V/AC240V |
05 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Extruded aluminum alloy |
|
Glass |
Tempered glass. T=3mm |
|
Lens |
Optical lens, efficiency≥85% |
|
Cable gland |
Copper and nickel coated |
|
Gasket |
Tooling shaped seal |
|
LED |
CREE COB LED |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m (low voltage) / H05RN-F 3x0.75mm² L=0.3m (high voltage) |
