DC24V Stainless Steel Inground Lamp One Two Four Side Way View Single Color 3000K LED 16+ Years Factory IP67 Side-emitting inground light/LED Inground light
Waterproof Rating: IP67
Material: Outdoor dark gray powder coated aluminum with 304# or 316# Stainless Steel face cover
Model: XE8431X Series
Certification: IP67, RoHS, CE

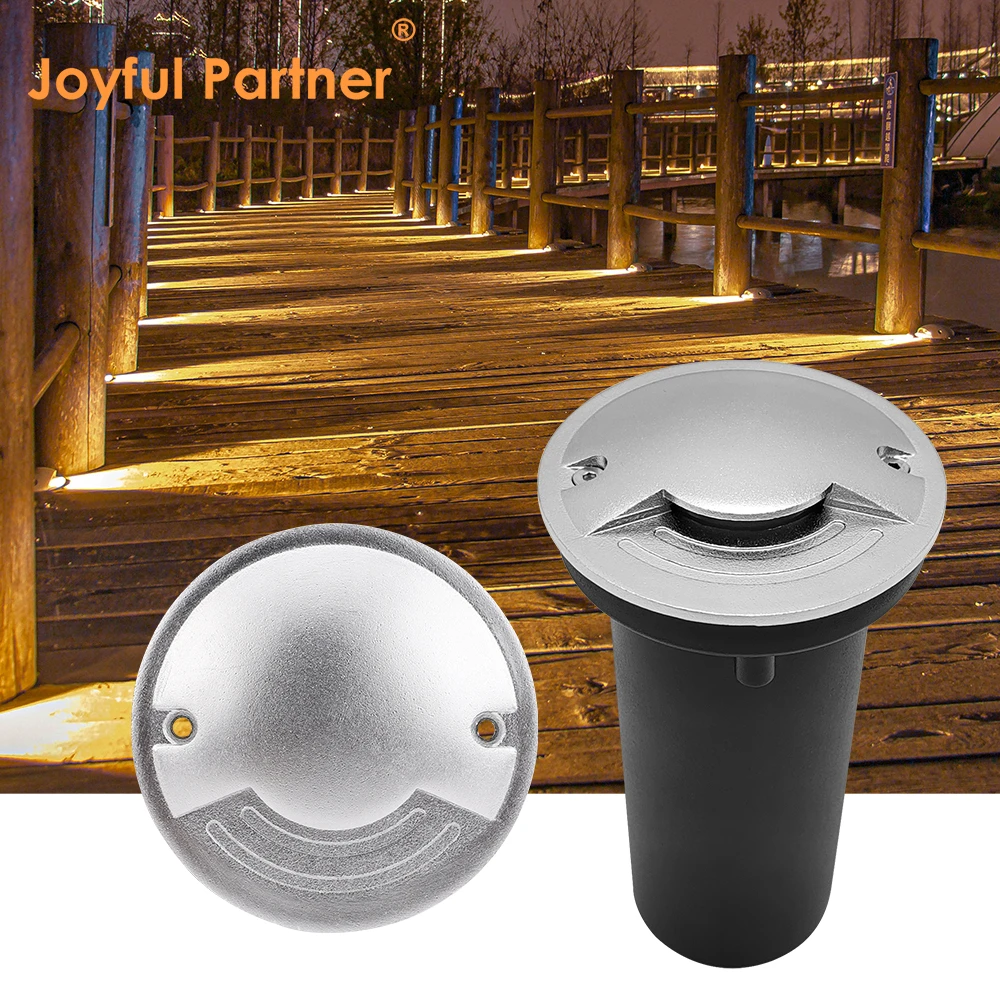

Premium side-emitting LED inground light designed for sleek architectural pathway and landscape highlighting.

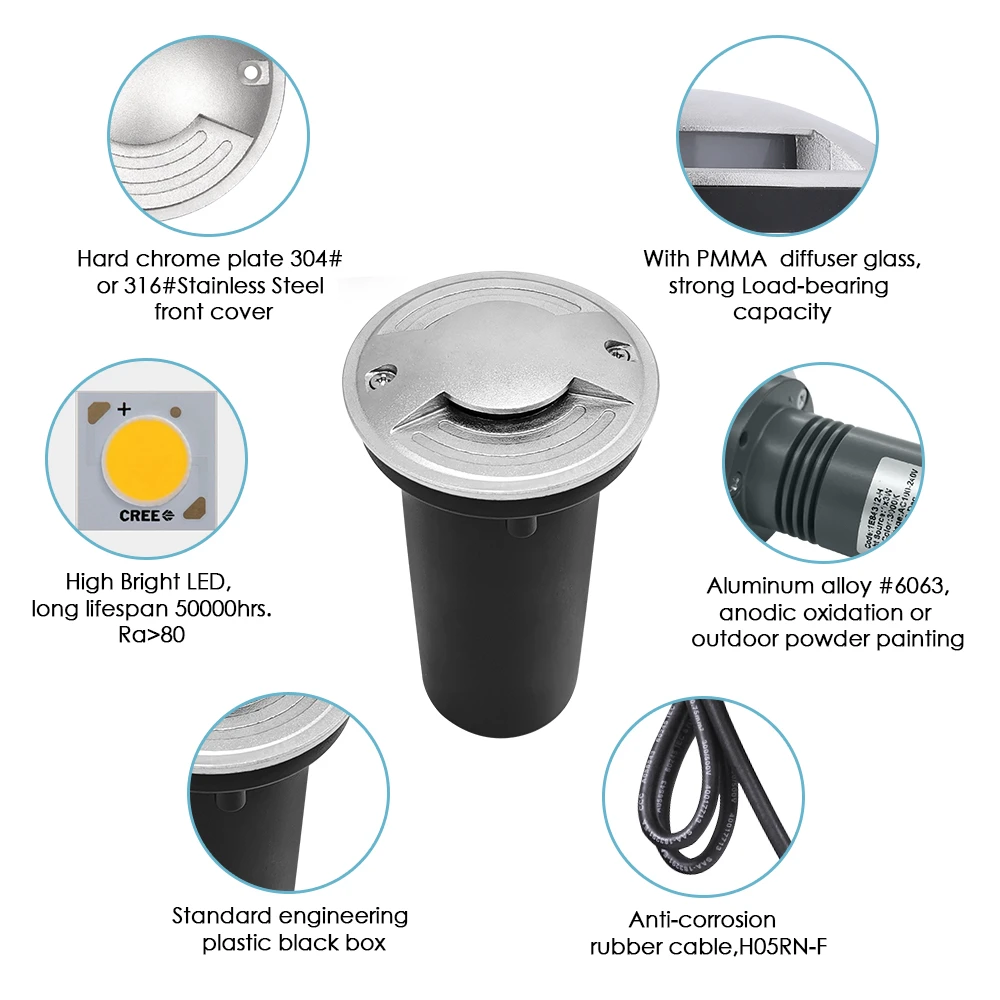

Features a high-grade 304# or 316# stainless steel face cover with a hard chrome finish for maximum durability.

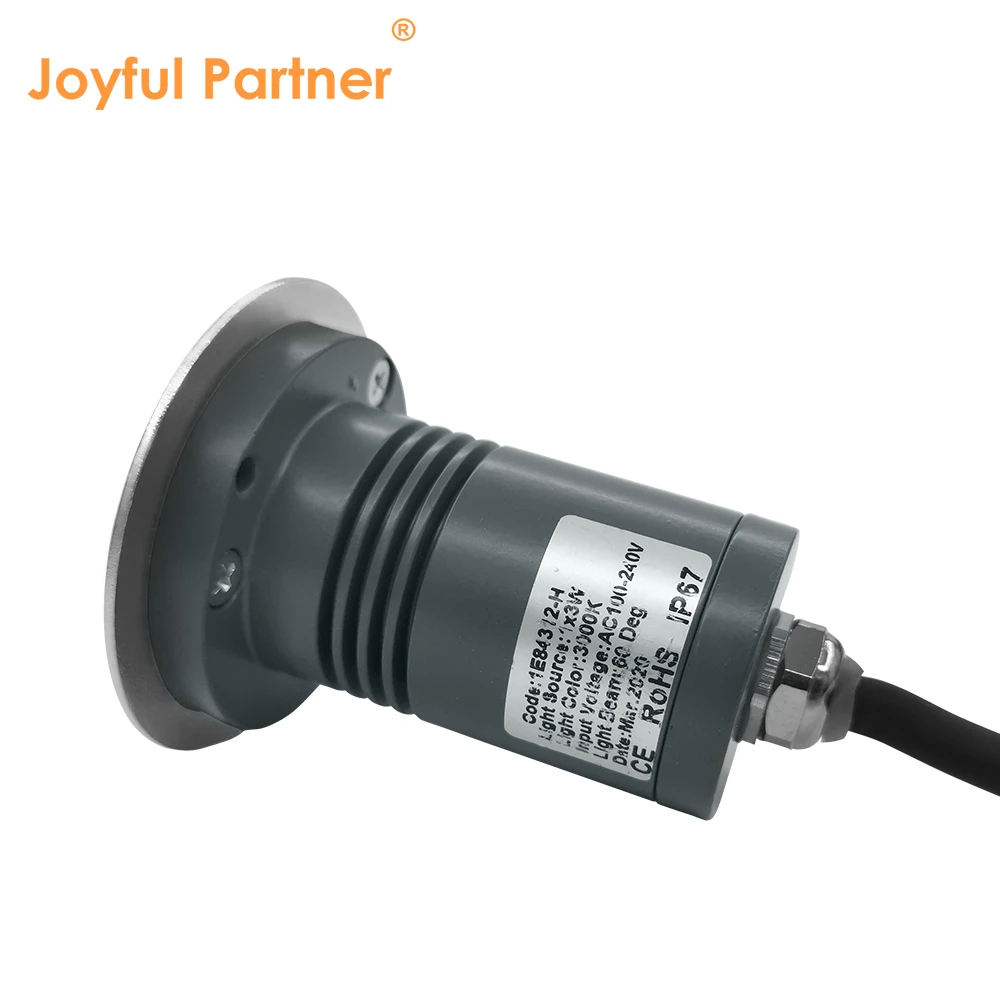

Constructed with durable outdoor dark gray powder-coated aluminum housing ensuring optimal heat management.
Equipped with an advanced PMMA diffuser and high-efficiency optical lens for uniform light distribution.
Engineered for high-traffic safety with an IK10 impact resistance rating and a pressure capacity of >1500kgs.
Reliable IP67 waterproof protection achieved through molding shaped silicone seals and integrated ABS mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E84311(H)/2E84311(H)/4E84311(H) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V AC100-240V |
10 |
|
1E84312(H)/2E84312(H)/4E84312(H) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V AC100-240V |
10 |
|
1E84316/2E84316/4E84316 |
1x3W RGB3in1 LED |
30°/45°/60° |
3.1 |
DC12V/DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark gray powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
PMMA diffuser |
|
Glass pressure capacity |
> 1500kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
ABS |
