Drive Over light Stainless Steel Front Cover 8W CREE COB LED Single Color 3000K DIA172MM For Parking Lot Side-emitting inground light/Strong load-bearing capacity Drive-over inground light
Waterproof Rating: IP67
Material: Outdoor dark gray powder coated aluminum with Hard chrome plate 304# or 316# Stainless Steel face cover
Model: XE826X Series
Certification: IP67, RoHS, CE
Professional side-emitting LED inground light engineered for heavy-duty drive-over and high-traffic architectural applications.
Features a premium 304# or 316# stainless steel face cover with hard chrome plating for exceptional durability and impact resistance.
Robust outdoor-grade powder-coated aluminum housing (T=60-80um) designed for maximum load-bearing performance.
Equipped with specialized PMMA diffuser and high-efficiency optical lenses (≥85%) for uniform side-emitting illumination.
Certified for safety with an IK10 impact rating and a massive pressure capacity of >2000kgs, ideal for parking areas.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and heavy-duty ABS mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E826068(H)/2E826068(H)/4E826068(H) |
1x8W COB LED |
15°/25°/38°/60° |
8.1 |
DC12V/DC24V/AC100-240V |
10 |
|
1E826307(H)/2E826307(H)/4E826307(H) |
SMD2835*30pcs |
15°/25°/38°/60° |
10 |
DC24V/100-240V |
10 |
|
1E826158(H)/2E826158(H)/4E826158(H) |
1x15W COB LED |
15°/25°/38°/60° |
15.2 |
DC12V/DC24V/AC100-240V |
10 |

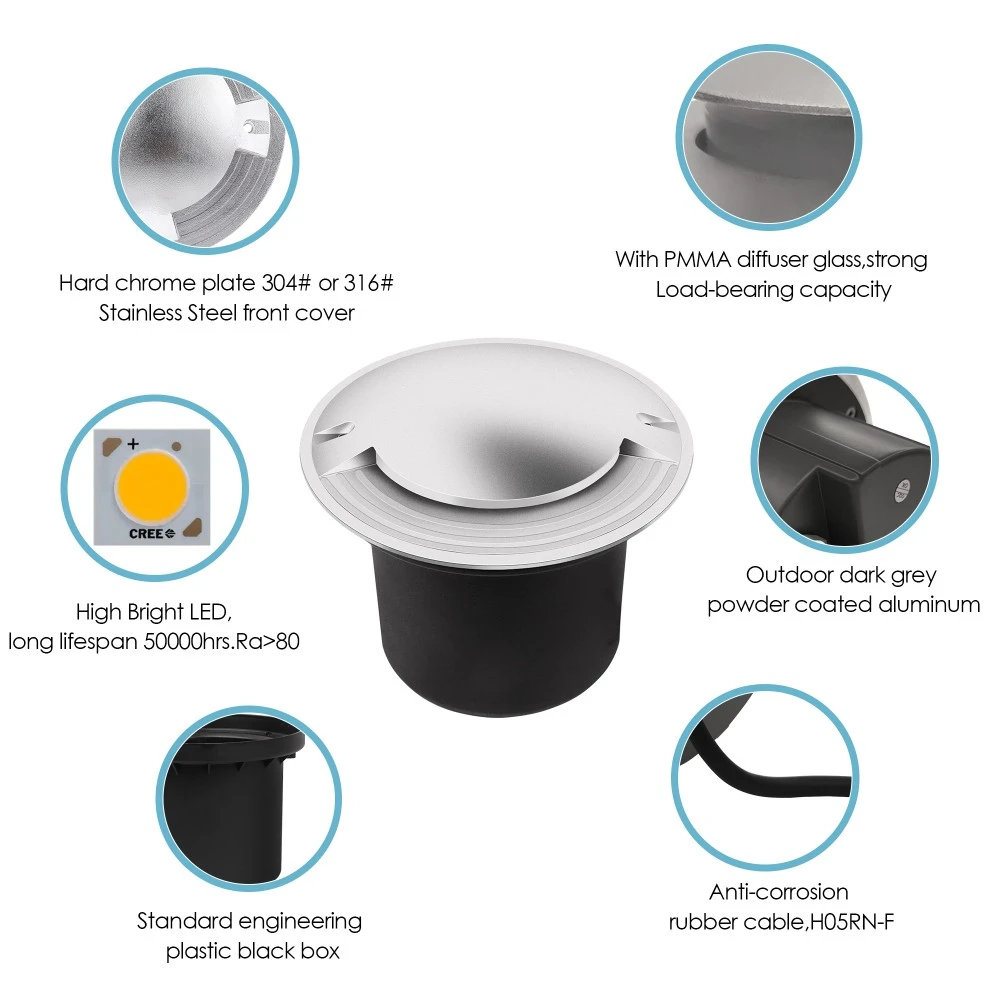

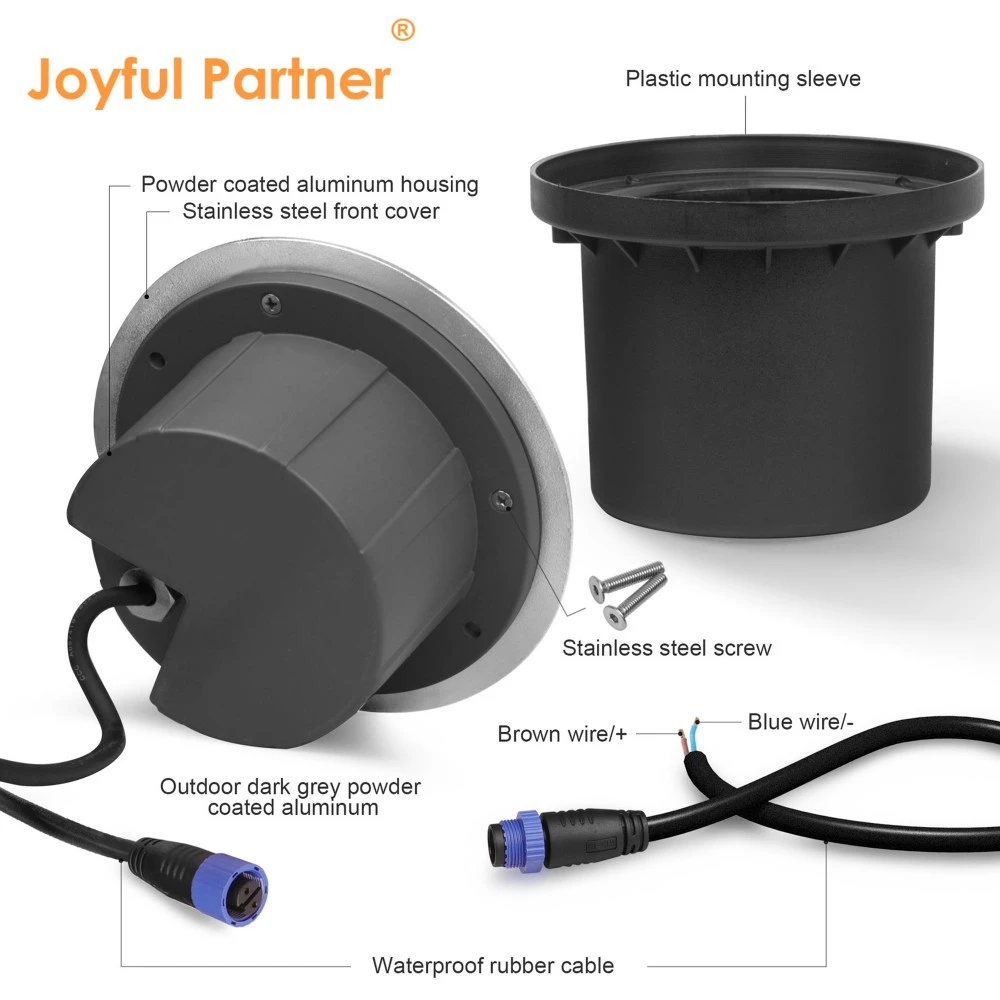

Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark gray powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
PMMA diffuser |
|
Glass pressure capacity |
> 2000kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|
Mounting sleeve |
ABS |
