Inground Light Cree COB LED 3000k One Two Four Side View SS316 Front Cover For Pathway Side-emitting inground light/Strong load-bearing capacity Driver-over with stainless steel face cover

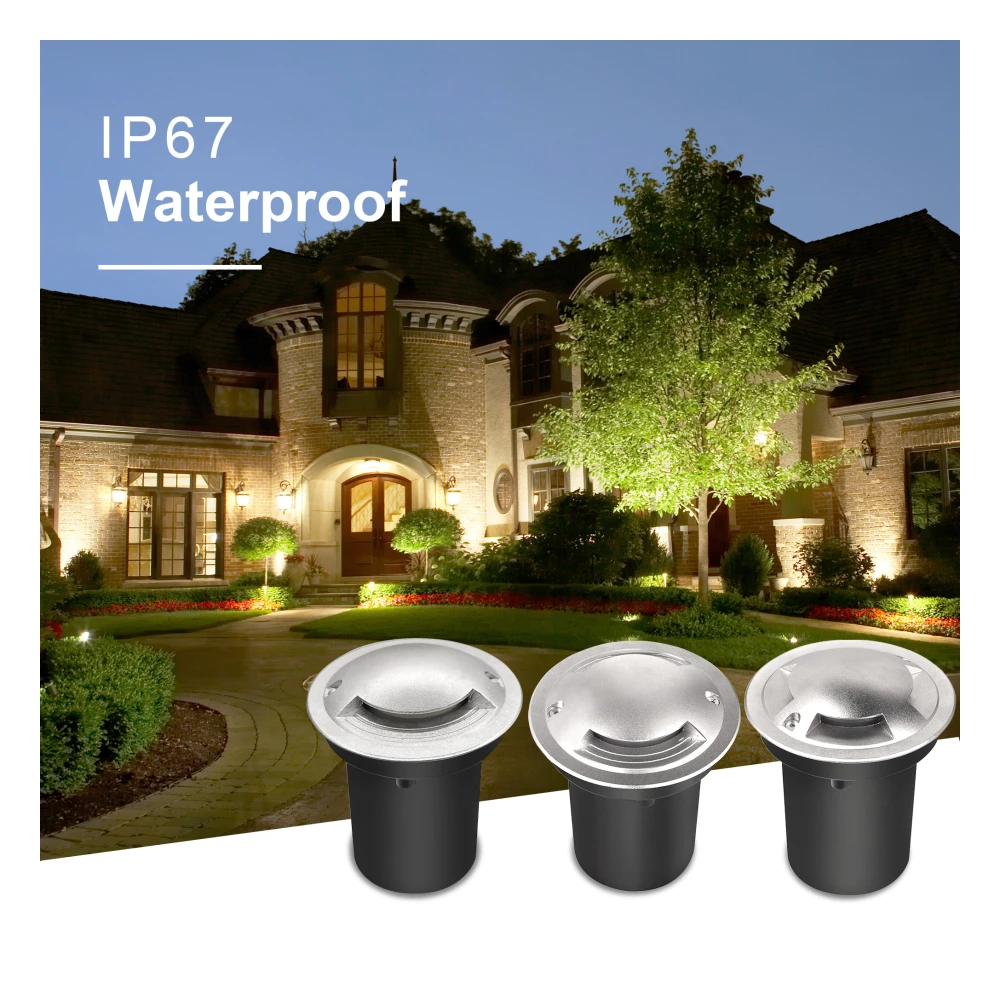

Waterproof Rating: IP67
Material: Outdoor dark gray powder coated aluminum with 304# or 316# Stainless Steel face cover
Model: XE8256X Series
Certification: IP67, RoHS, CE
Professional side-emitting LED inground light designed for high-performance architectural and heavy-duty driver-over applications.

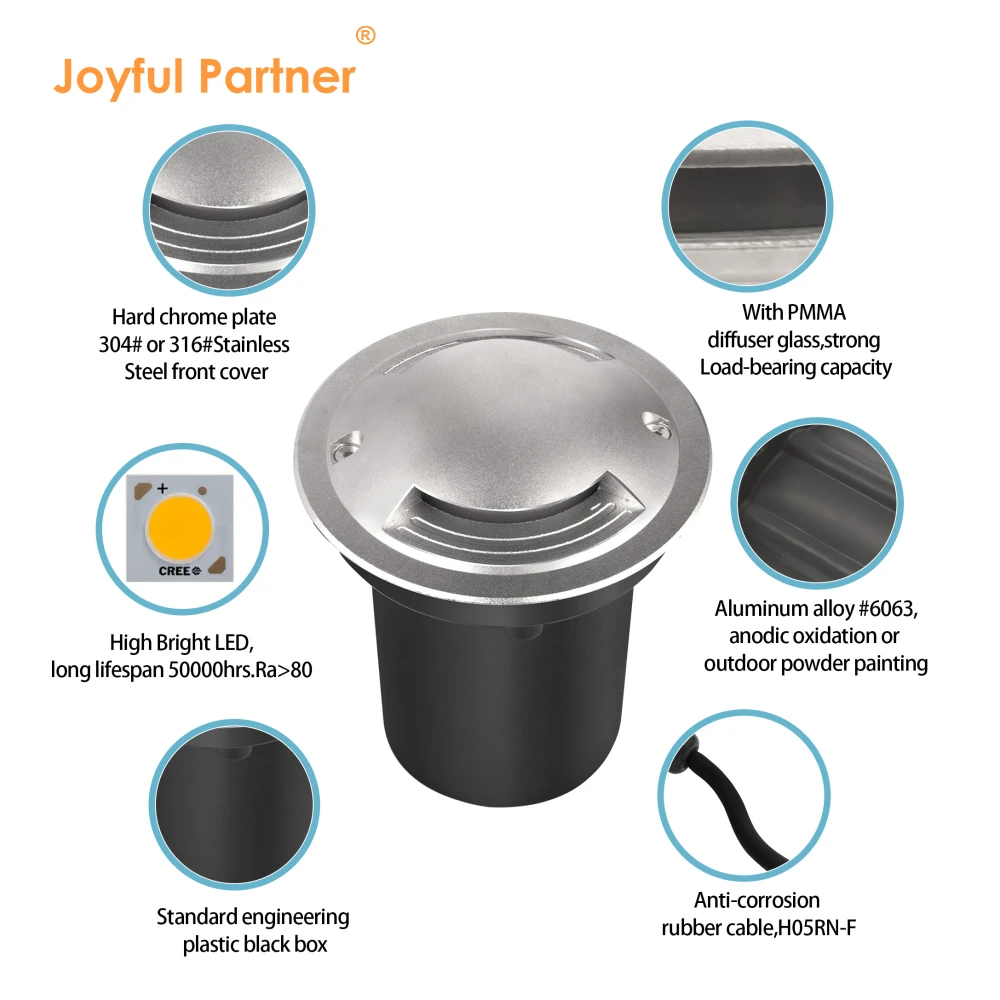

Features a premium 304# or 316# stainless steel face cover with a hard chrome finish for superior corrosion and wear resistance.
Constructed with robust outdoor-grade powder-coated aluminum housing ensuring optimal heat management and durability.
Equipped with specialized PMMA diffuser and precision optical lenses offering multiple beam angles for precise path lighting.
Engineered for safety with an IK10 impact resistance rating and a massive pressure capacity of >1800kgs for commercial use.
Reliable IP67 waterproof protection achieved through molding shaped silicone seals and high-strength ABS mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E82567(H)/2E82567(H)/4E82567(H) |
1x6W COB LED |
15°/25°/38°/60° |
6.5 |
DC12V/DC24V/AC100-240V |
10 |
|
1E825157(H)/2E825157(H)/4E825157(H) |
OSRAM2835*18pcs |
15°/25°/38°/60° |
5 |
DC12V/DC24V/AC100-240V |
10 |
|
1E82536/2E82536/4E82536 |
3x3W RGB3in1 LED |
30°/45°/60° |
9.1 |
DC12V/DC24V |
10 |
Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark gray powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
PMMA diffuser |
|
Glass pressure capacity |
> 1800kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|

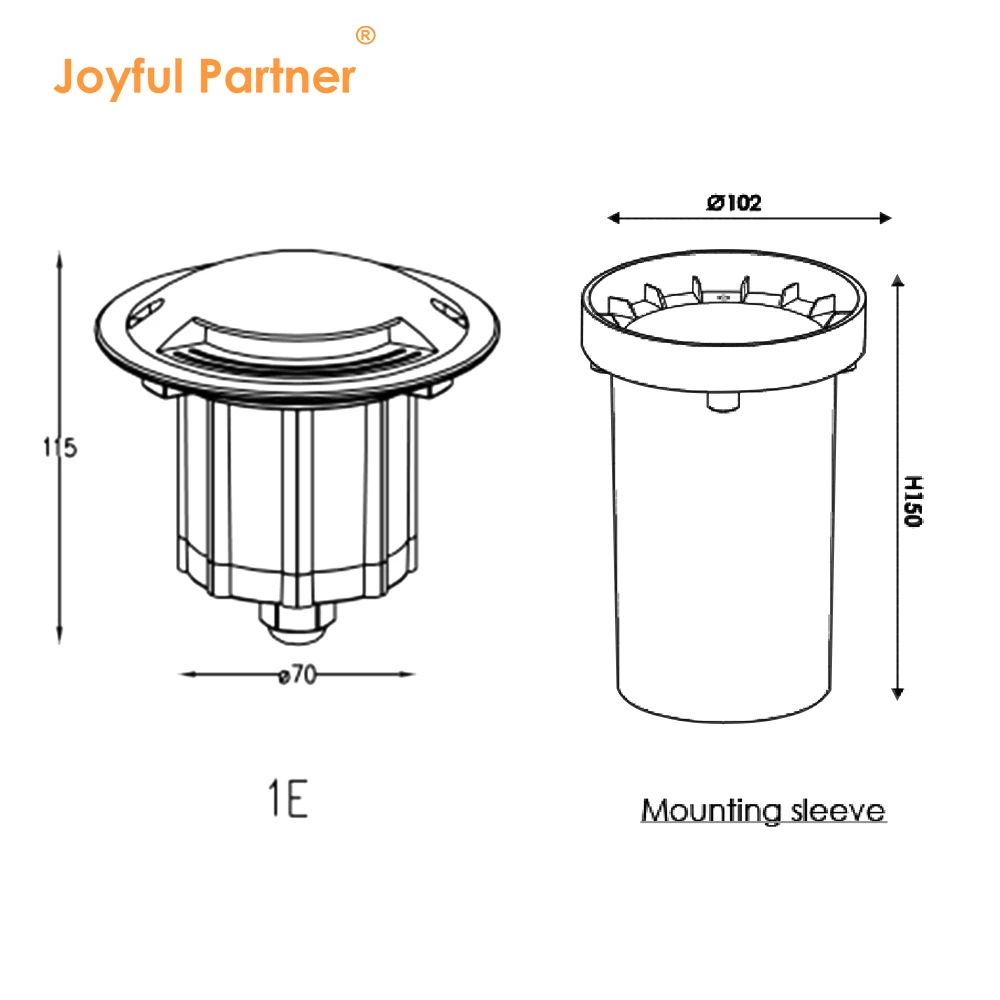

Mounting sleeve |
ABS |
