Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
832181S
|
18*1W
|
8°/15°/20°/30°/45°/60°
|
18.3
|
DC24V/AC100-240V
|
8
|
|
832182S
|
18*2W
|
8°/15°/20°/30°/45°/60°
|
37
|
DC24V/AC100-240V
|
8
|
|
832361S
|
36*1W
|
8°/15°/20°/30°/45°/60°
|
36.5
|
DC24V/AC100-240V
|
8
|
|
832362S
|
36*2W
|
8°/15°/20°/30°/45°/60°
|
72
|
DC24V/AC100-240V
|
8
|
|

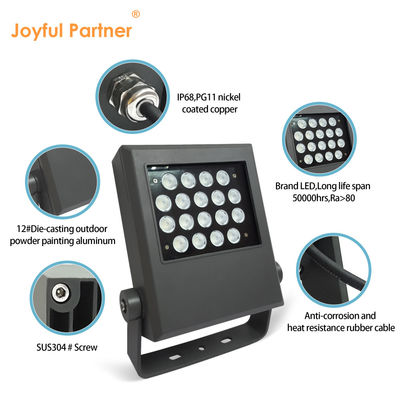

Material specifications
|
|
|
|
Housing&Front cover
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B
|
|
|
Glass
|
Tempered glass.T=4mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG11 nickel coated copper
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
LED
|
Epistar or CREE,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk |
|
|
Driver
|
Constant current output
single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage)
H05RN-F4*0.75mm²L=1m(for RGB)
|
|
