Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
832031
|
3*1W
|
8°/15°/20°/30°/45°/60°
|
3.3
|
DC24V
AC100-240V |
7
|
|
832032
|
3*2W
|
8°/15°/20°/30°/45°/60°
|
6
|
DC24V
AC100-240V |
7
|
|
832036
|
3*3W RGB3in1
|
20°/30°/45°/60°
|
9
|
DC24V
|
7
|
|
83261
|
6*1W
|
8°/15°/20°/30°/45°/60°
|
6.5
|
DC24V
AC100-240V |
7
|
|
83262
|
6*2W
|
8°/15°/20°/30°/45°/60°
|
12
|
DC24V
AC100-240V |
7
|
|
83266
|
6*3W RGB3in1
|
20°/30°/45°/60°
|
18
|
DC24V
|
7
|
|
832121
|
12*1W
|
8°/15°/20°/30°/45°/60°
|
12
|
DC24V
AC100-240V |
7
|
|
832122
|
12*2W
|
8°/15°/20°/30°/45°/60°
|
24
|
DC24V
AC100-240V |
7
|
|
832126
|
12*3W RGB3in1
|
20°/30°/45°/60°
|
36
|
DC24V
|
7
|
|
Material specifications
|
|
|
|
Housing&Front cover
|
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B |
|
|
Glass
|
Tempered glass.T=4mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Cable gland
|
IP68,PG9 nickel coated copper
|
|
|
Gasket
|
Molding shaped silicone double seal
|
|
|
LED
|
Epistar or CREE,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk |
|
|
Driver
|
Constant current output
single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=1m(low voltage)
H05RN-F3*0.75mm²L=1m(high voltage) H05RN-F4*0.75mm²L=1m(for RGB) |
|
|

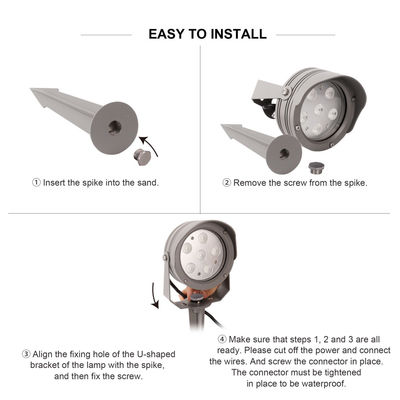

Spike
|
PVC
|
|
|
Mounting base
|
Powder painting die-casting aluninum
|
|
|
Honeycomb
|
Optional Parts
|
|
