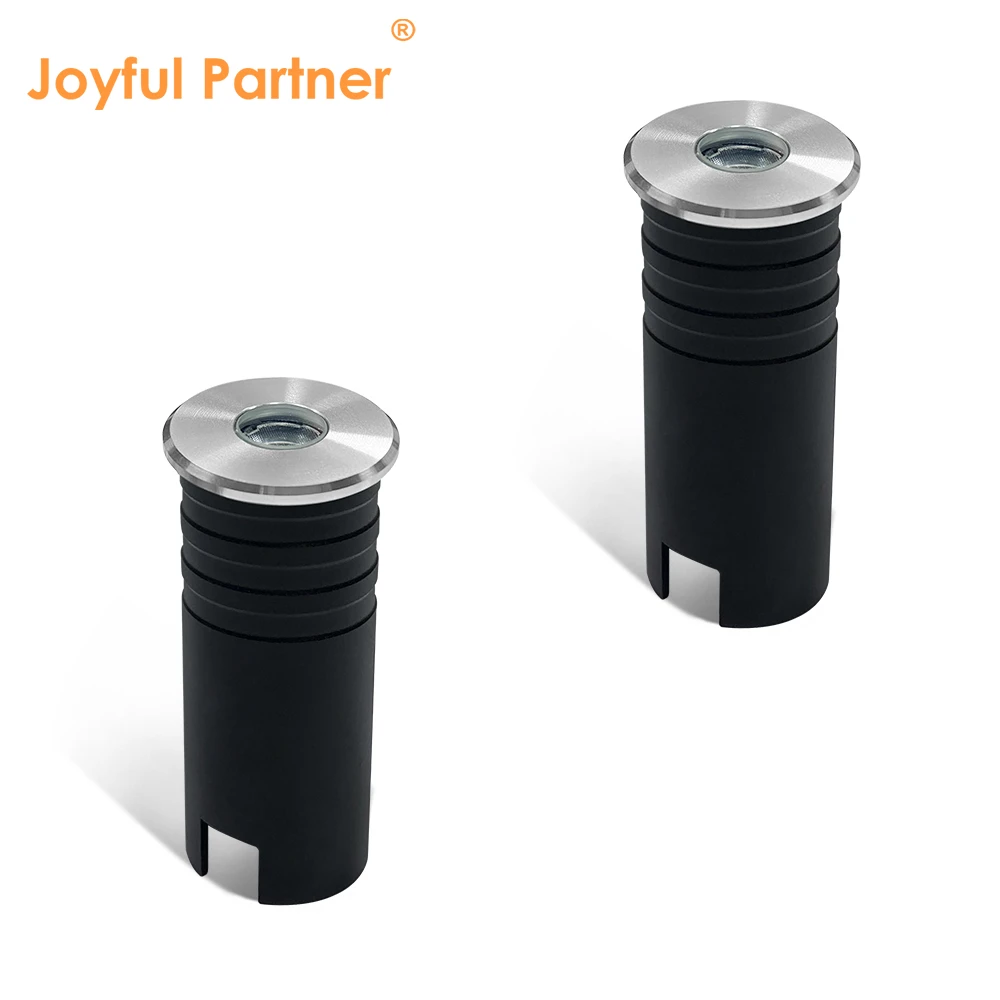

IP67 LED Mini inground light Stainless Steel 316 1W DIA 25MM CREE XPE LED Single Color 3000K Small Size LED Inground Light/LED Deck Light
Waterproof Rating: IP67
Material: Aluminum anodized or outdoor powder coated finish with SS304#/SS316#/Aluminum face cover
Model: 8001X / HE8001X Series
Certification: IP67, RoHS, CE

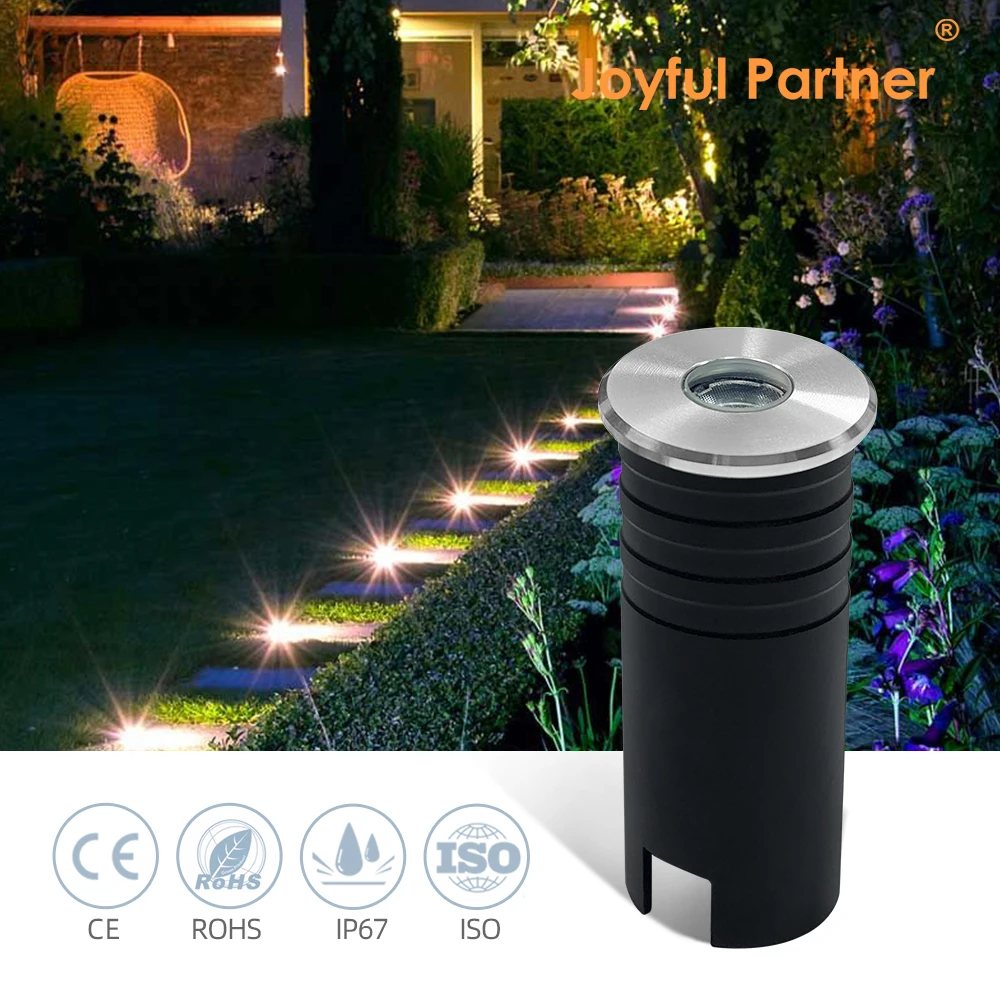

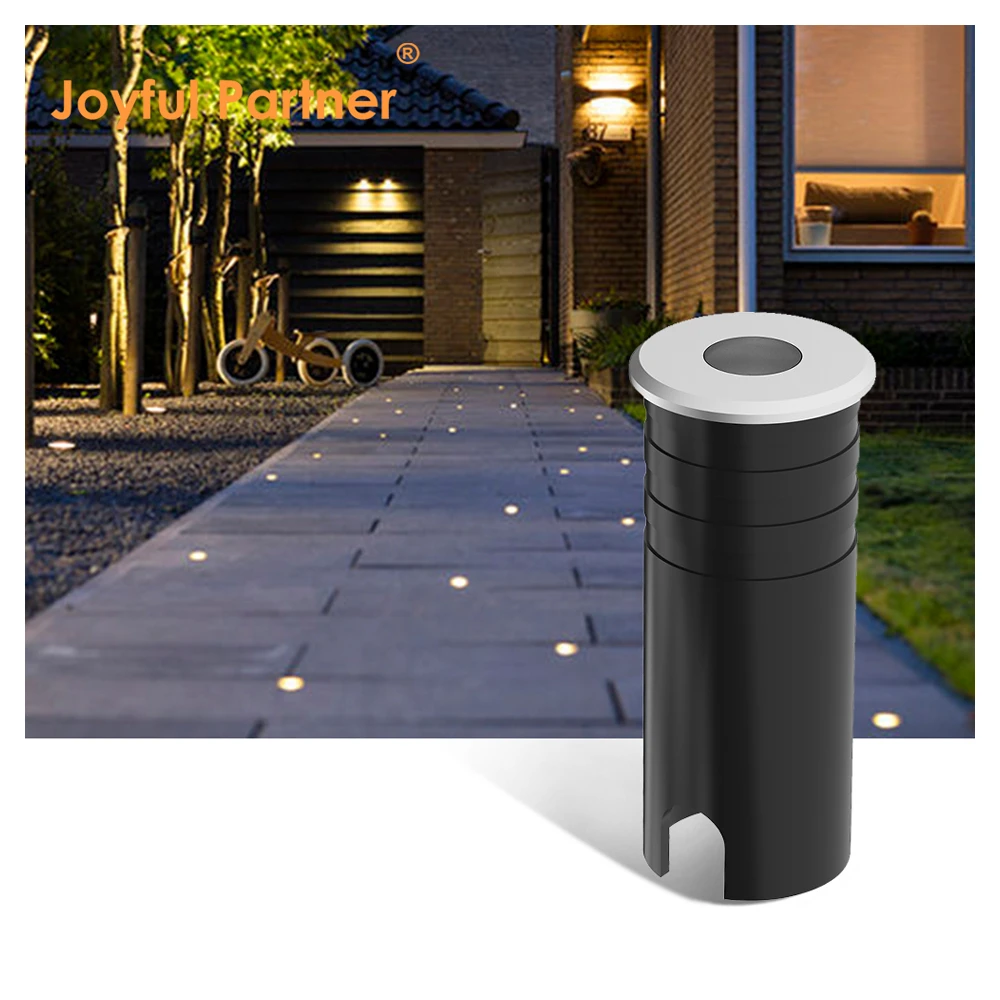

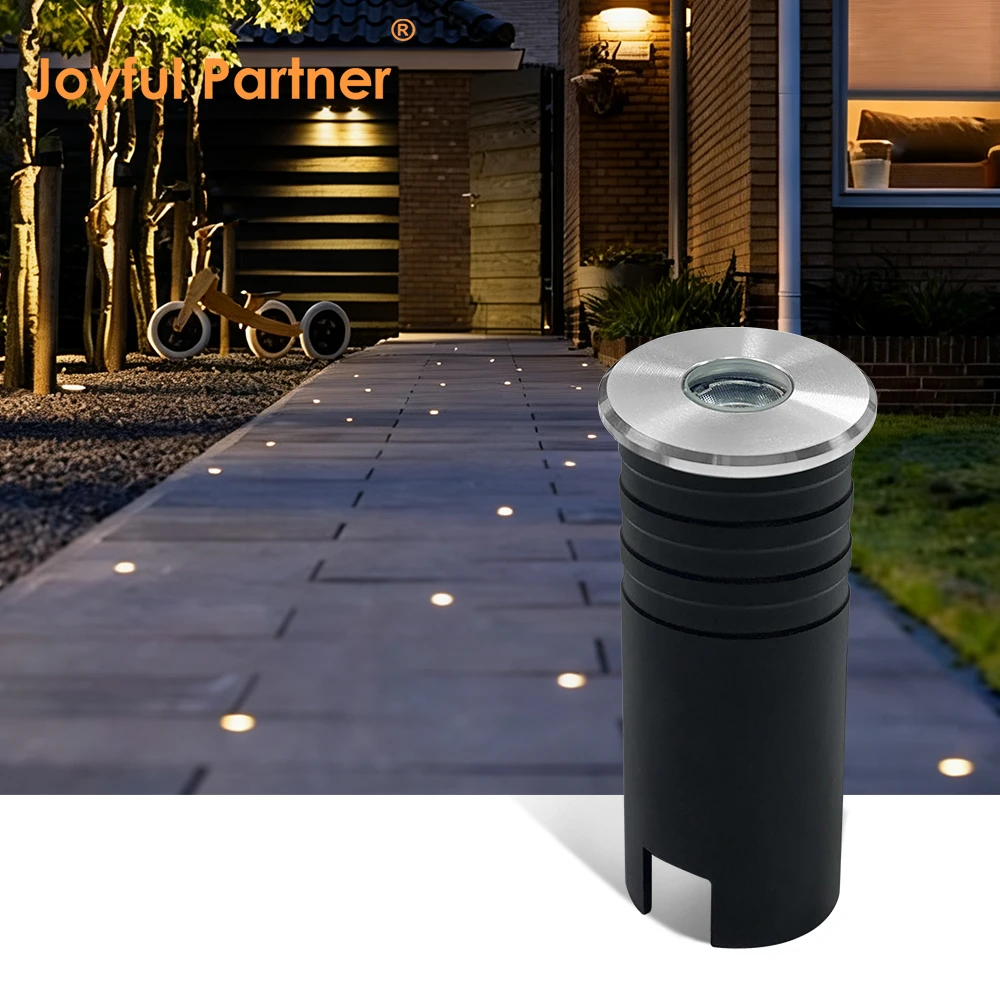

Compact small size LED inground light designed for delicate villa decks and garden walkway illumination.
Constructed with premium SS304/SS316 stainless steel or aluminum front cover for excellent durability.
Features high-efficiency optical lenses with ≥85% light transmission for uniform and comfortable lighting.
Engineered with a robust 7mm tempered step glass and IP67 waterproof rating for reliable outdoor use.
Versatile installation options with a specialized aluminum mounting sleeve for stable recessed applications.
Available in multiple beam angles (15°-120°) and low voltage DC12V/24V input for safety and flexibility.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
80011/HE80011 |
1x1W LED |
15°/30°/45°/60° |
1.1 |
DC12V/DC24V |
- |
|
80017/HE80017 |
1x0.5W LED |
120° |
0.5 |
DC12V/DC24V |
- |
Material Specifications Table
|
Item |
Description |
|
Housing |
Aluminum anodized or outdoor powder coated finish housing T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
SS304 # / SS316 # / Aluminum |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
Tempered step glass T=7mm |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.5mm² L=0.5m(low voltage) |
|
Mounting sleeve |
Aluminum |
