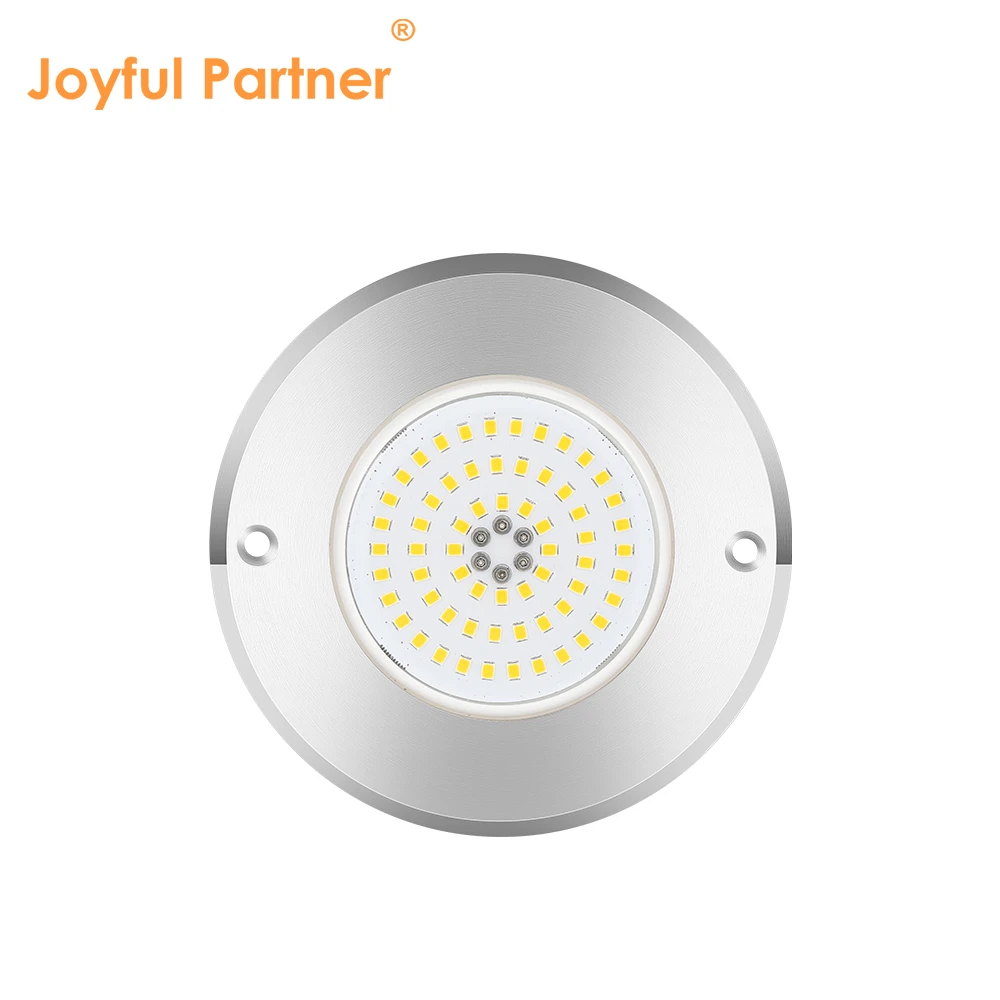

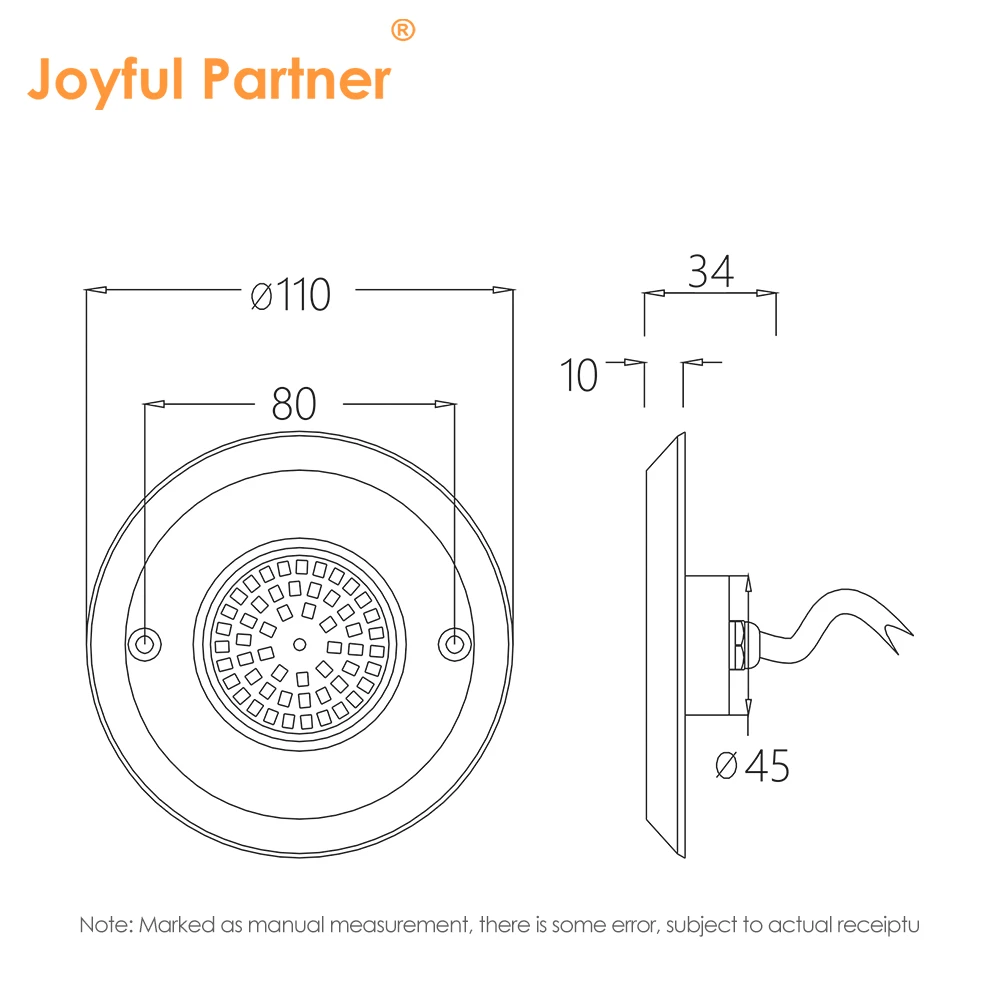

JPYB110-6W-AC（Ø110mm）
Waterproof Rating: IP68
Material: Stainless steel 316L + ABS
Model: JPYB110X / JPYB160X / JPYB230X / JPYB280X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

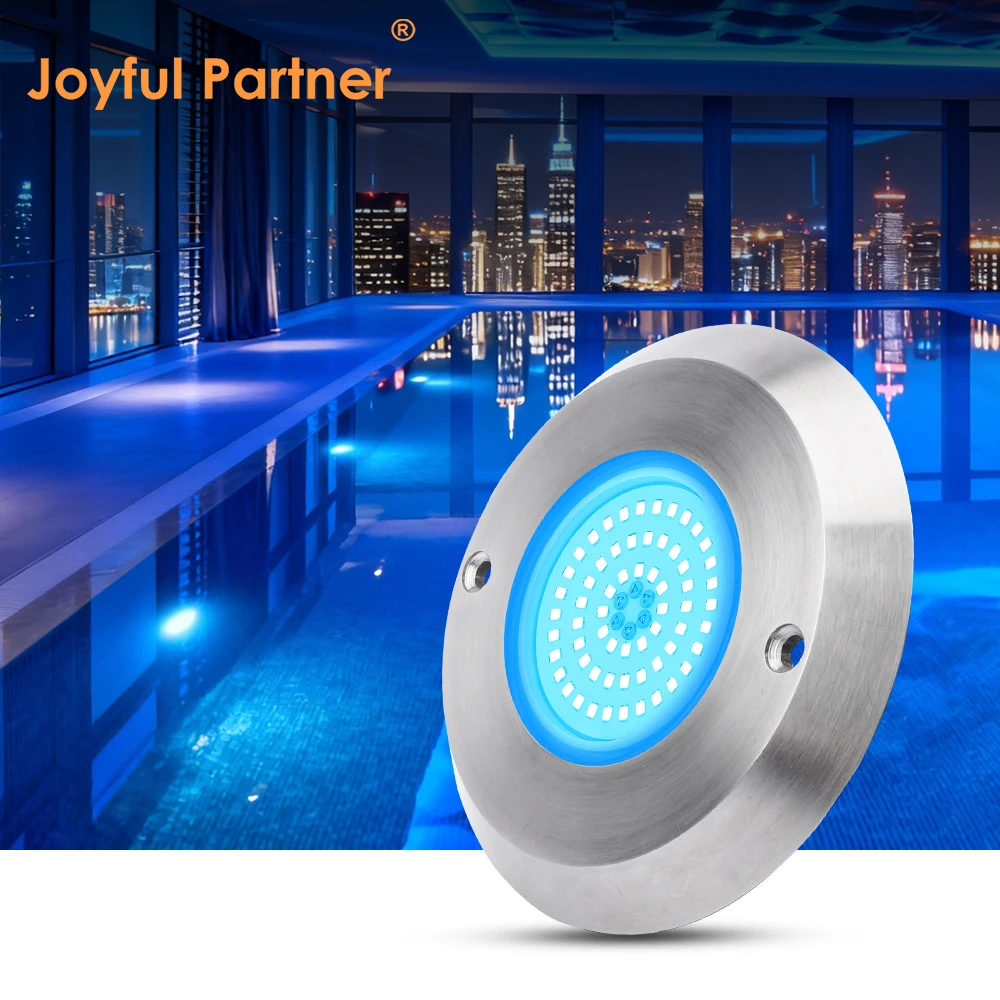

Professional integrated pool light series featuring a slim 10mm profile for a clean, modern underwater aesthetic.

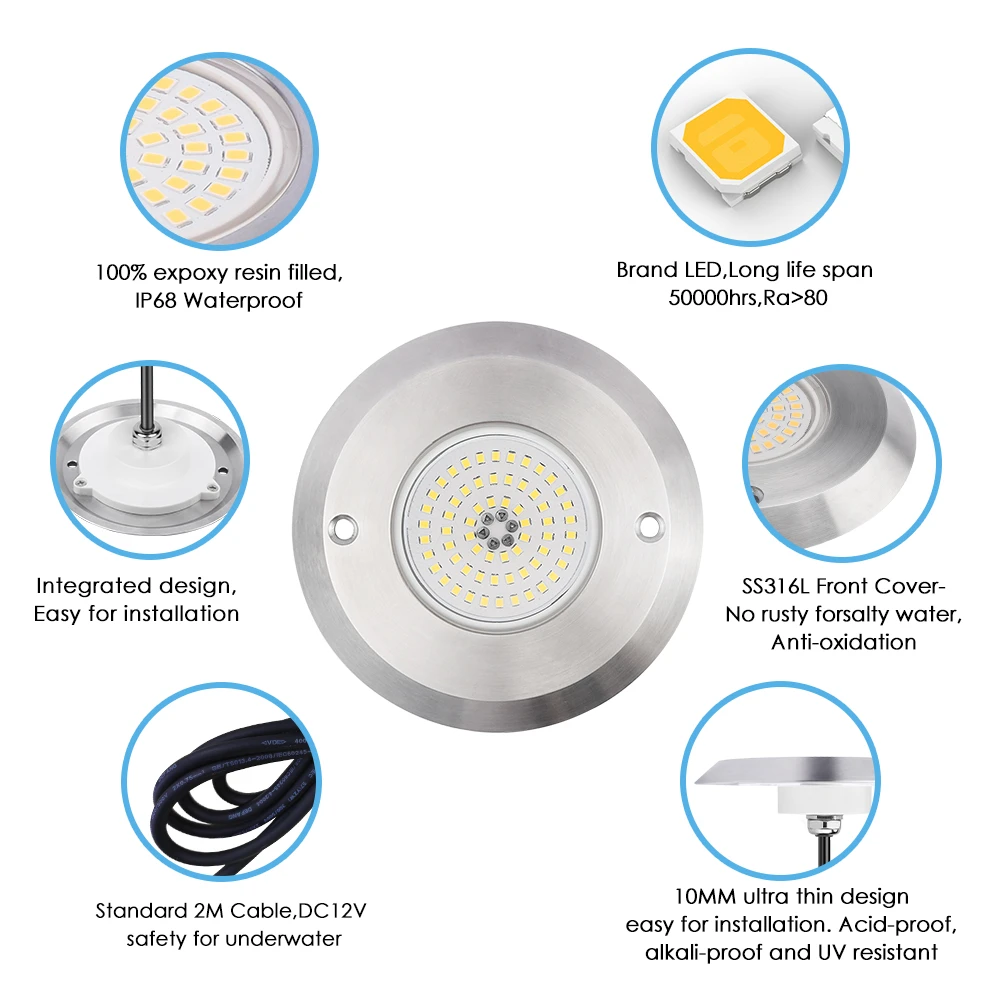

Engineered with a premium SUS 316L stainless steel front cover and ABS body to ensure superior corrosion resistance.
Features an advanced epoxy resin fully sealed design, providing 100% waterproof reliability and high luminous efficacy.
Equipped with high-performance SMD 2835 LEDs and a 120° beam angle for broad and uniform aquatic illumination.
Optimized for AC12V systems with an inbuilt constant current driver to ensure consistent brightness and long life.
Fully compatible with versatile control modes including smart APP and DALI for synchronized dynamic RGBW lighting effects.
Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPYB110-6W-AC |
SMD2835 54pcs |
6W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB160-10W-AC |
SMD2835 132pcs |
10W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB230-18W-AC |
SMD2835 252pcs |
18W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB230-25W-AC |
SMD2835 333pcs |
25W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB230-35W-AC |
SMD2835 432pcs |
35W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB280-25W-AC |
SMD2835 333pcs |
25W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB280-35W-AC |
SMD2835 432pcs |
35W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB280-42W-AC |
SMD2835 540pcs |
42W |
AC12V (inbuilt CC driver) |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
Material Specifications Table
|
Item |
Description |
|
Material |
Stainless steel 316L + ABS |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |
