JPYB110-6W-DC（Ø110mm）
Waterproof Rating: IP68
Material: Stainless steel 316L + ABS
Model: JPYB110X / JPYB160X / JPYB230X / JPYB280X Series (DC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

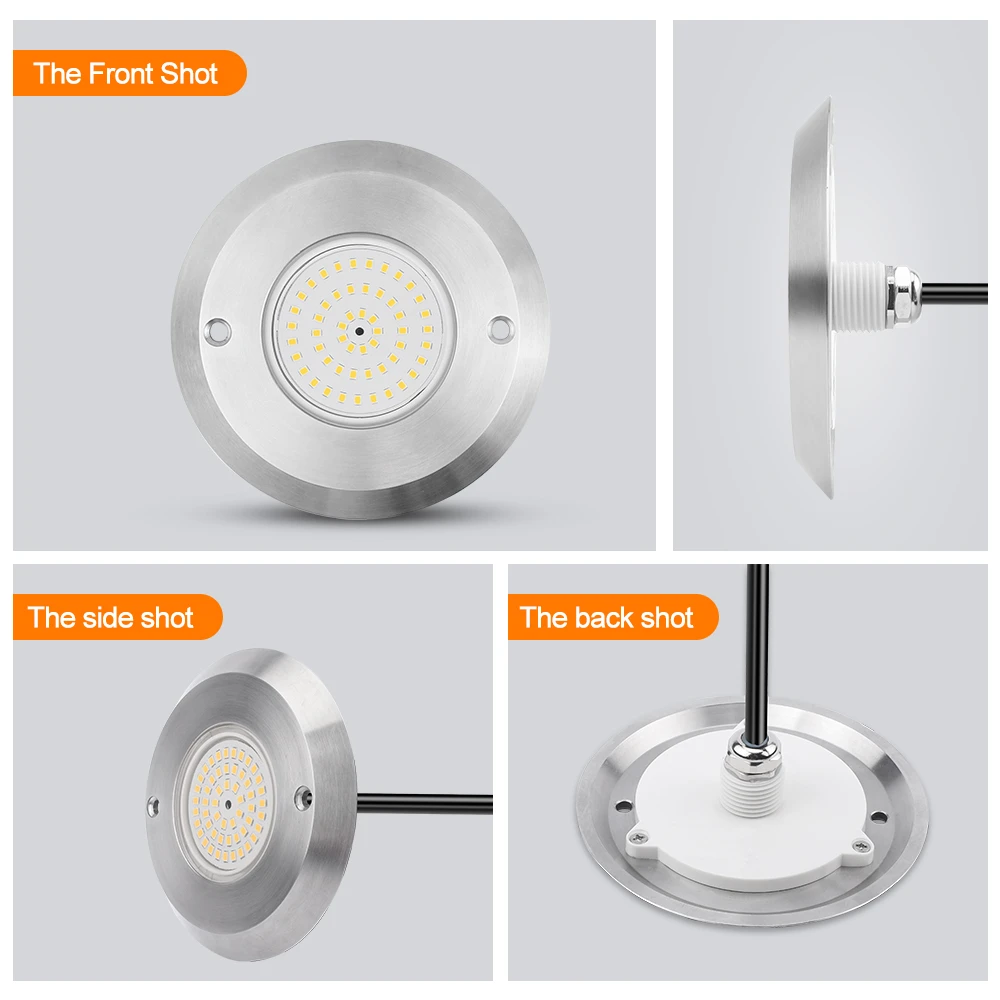

Integrated type pool light with an ultra-thin 10mm body in 316L stainless steel and ABS. Epoxy resin fully sealed construction with an IP68 rating makes it suitable for permanent underwater service in concrete swimming pools and underwater facilities. The DC12V fixture uses SMD 2835 LEDs with Ra>80 and a 120 degree beam angle, available in warm white, natural white, cool white, red, green, blue, RGB and RGBW from 6W to 42W. Control options include switch, RF/IR remote, APP, DALI and 0-10V dimming; operating range -20C to +40C.
Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPYB110-6W-DC |
SMD2835 54pcs |
6W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB160-10W-DC |
SMD2835 132pcs |
10W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB230-18W-DC |
SMD2835 252pcs |
18W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB230-25W-DC |
SMD2835 333pcs |
25W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB230-35W-DC |
SMD2835 432pcs |
35W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB280-25W-DC |
SMD2835 333pcs |
25W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB280-35W-DC |
SMD2835 432pcs |
35W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
|
JPYB280-42W-DC |
SMD2835 540pcs |
42W |
DC12V |
Warm/Natural/Cool White/RGB/RGBW |
120° |
SS316L+ABS |
Material Specifications Table
|
Item |
Description |
|
Material |
Stainless steel 316L + ABS |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |

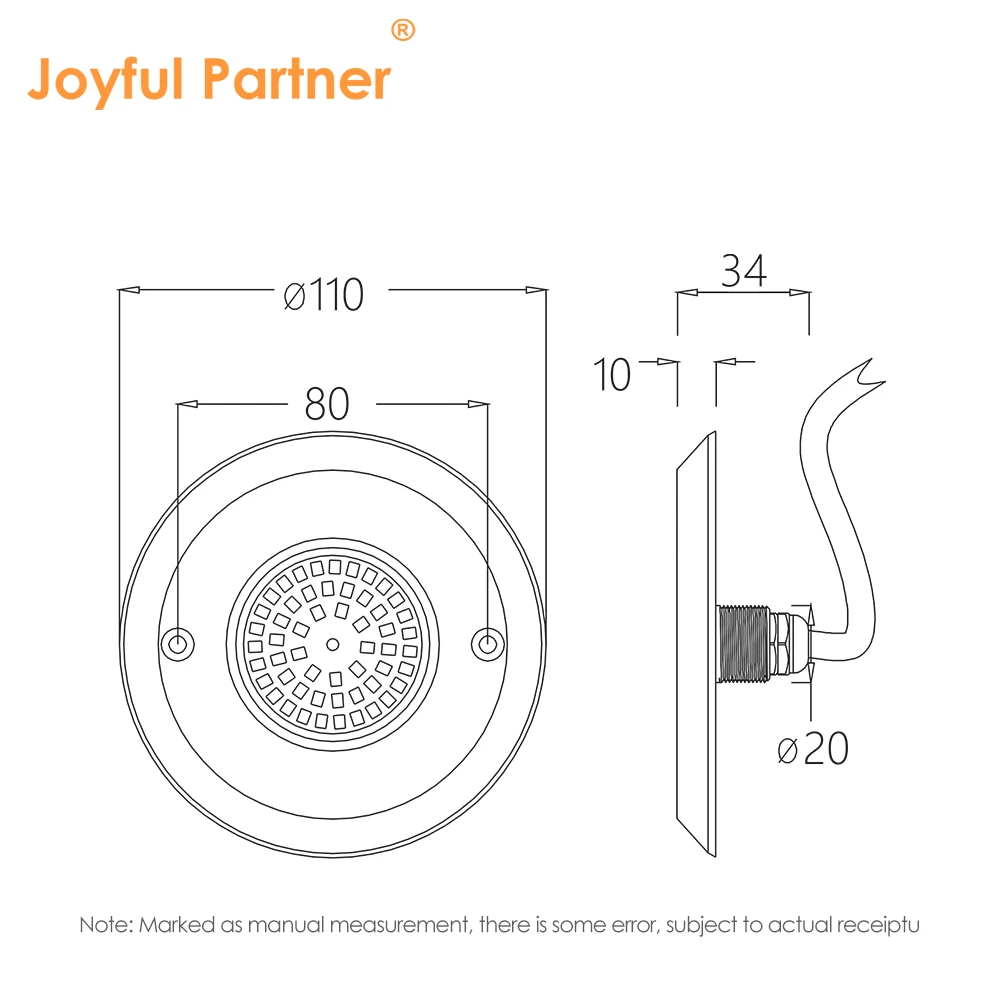

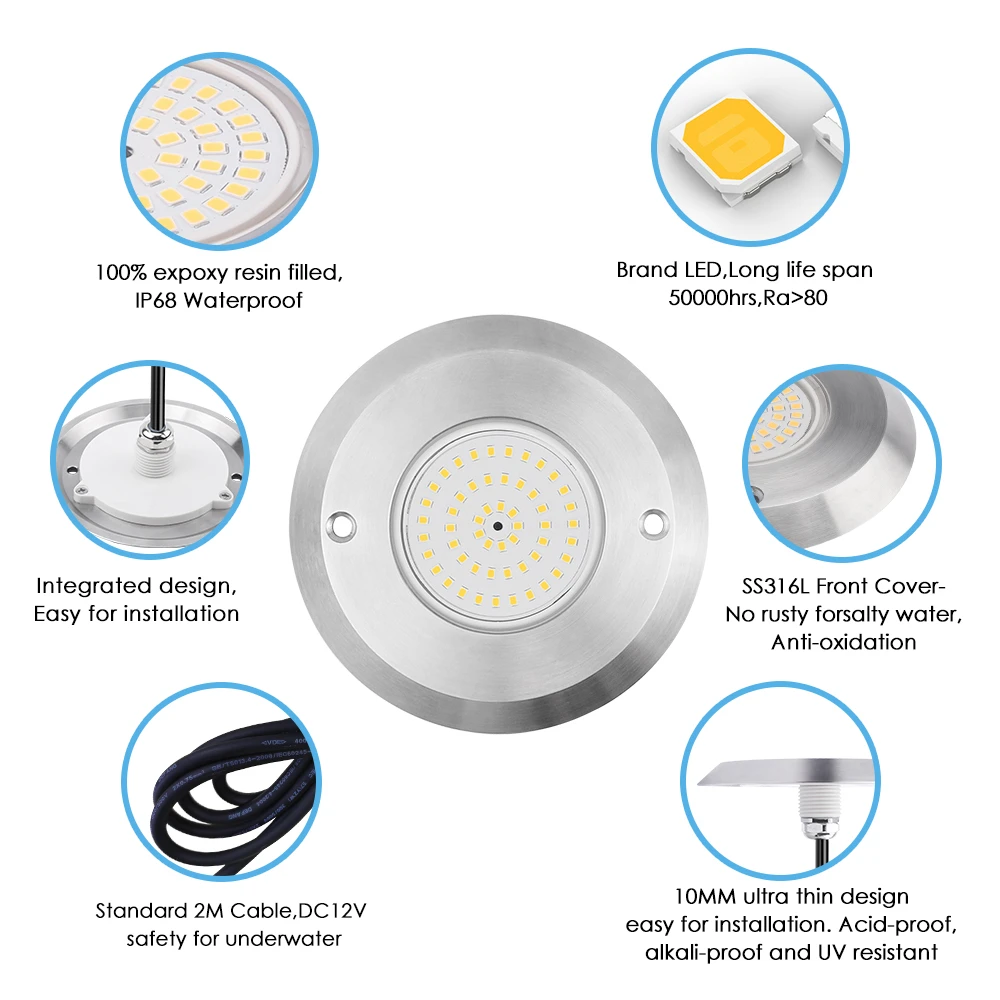

10mm Integrated Body: One-piece epoxy resin sealed unit keeps a low profile against the pool wall.
316L Stainless Steel And ABS: Corrosion resistant body, rated IP68 for continuous underwater working, -20C to +40C.
SMD 2835 LED, 120 Degree Beam: Ra>80 with natural white, warm white, cool white, red, green, blue, RGB and RGBW output.
High Luminous Efficacy, Super Energy Saving: Fixing screw and anti-slip rubber plug fit fast; switch, RF/IR remote, APP, DALI or 0-10V control.
