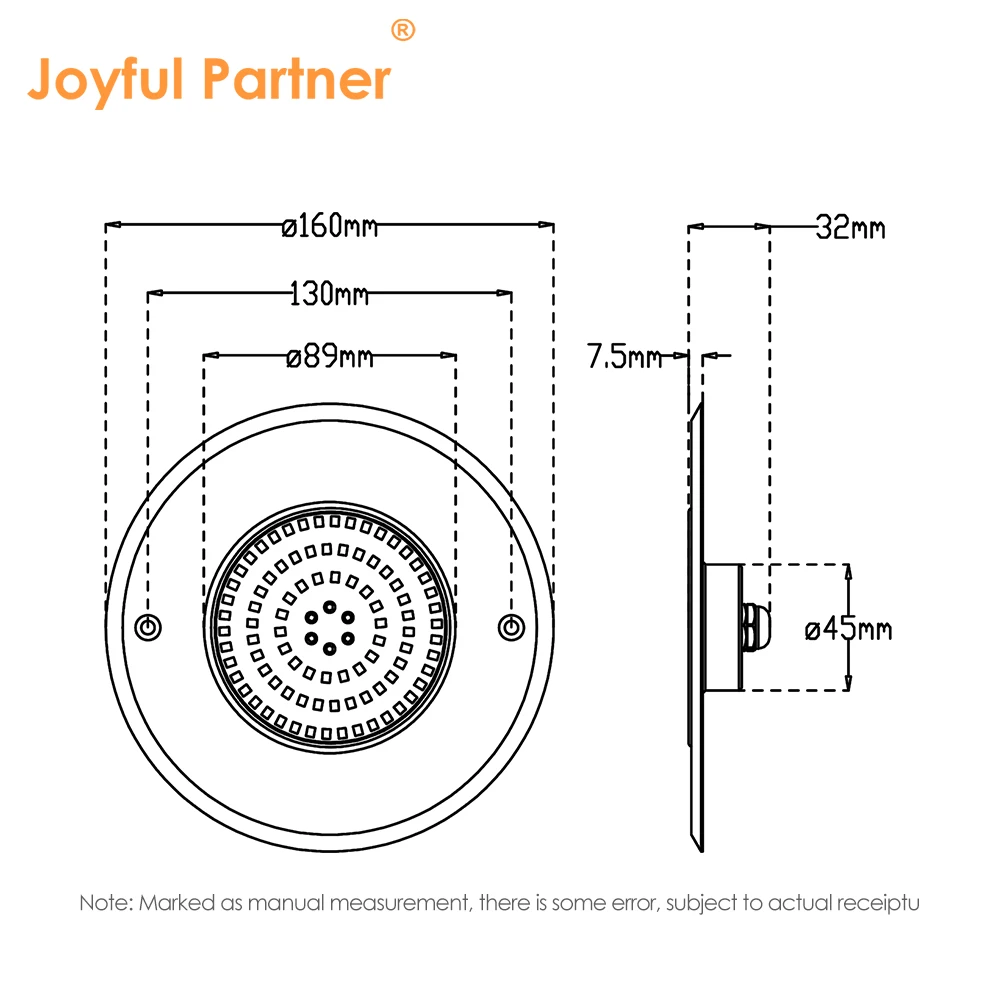

JPY160-10W-AC（Ø 160mm）
Waterproof Rating: IP68
Material: Stainless steel 316L + ABS
Model: JPY120X / JPY160X / JPY240X / JPY280X Series (AC)
Certification: IP68, RoHS, CE; Control: Switch, Remote, APP, DALI, 0-10V

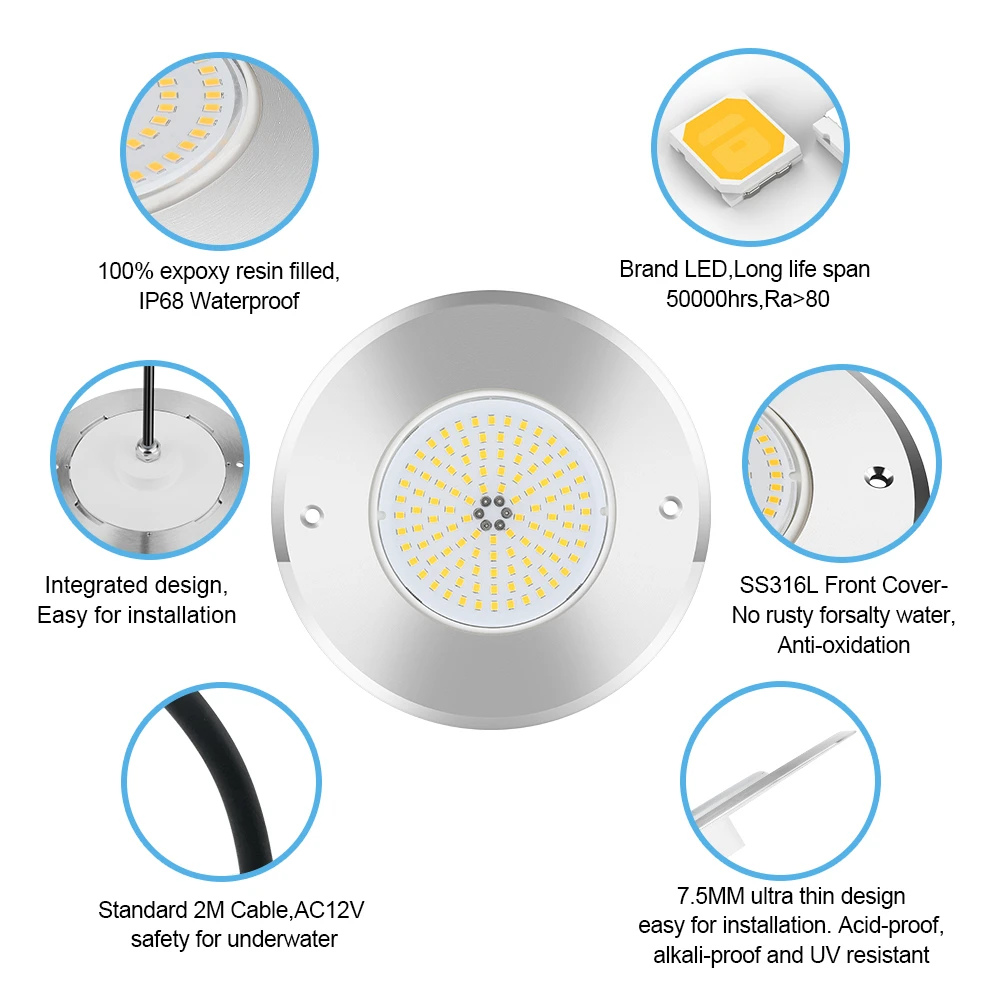

Innovative integrated type pool light featuring an ultra-thin 7.5mm profile for a sleek, modern architectural appearance.
Robust construction using marine-grade 316L stainless steel and ABS for ultimate corrosion resistance in AC12V systems.
Advanced epoxy resin fully sealed technology provides 100% waterproof protection and superior underwater durability.
Equipped with high-brightness SMD 2835 LEDs and a 120° beam angle for expansive and uniform underwater illumination.
Versatile control options include smart APP, professional DALI, and RF Remote for dynamic RGB/RGBW color synchronization.

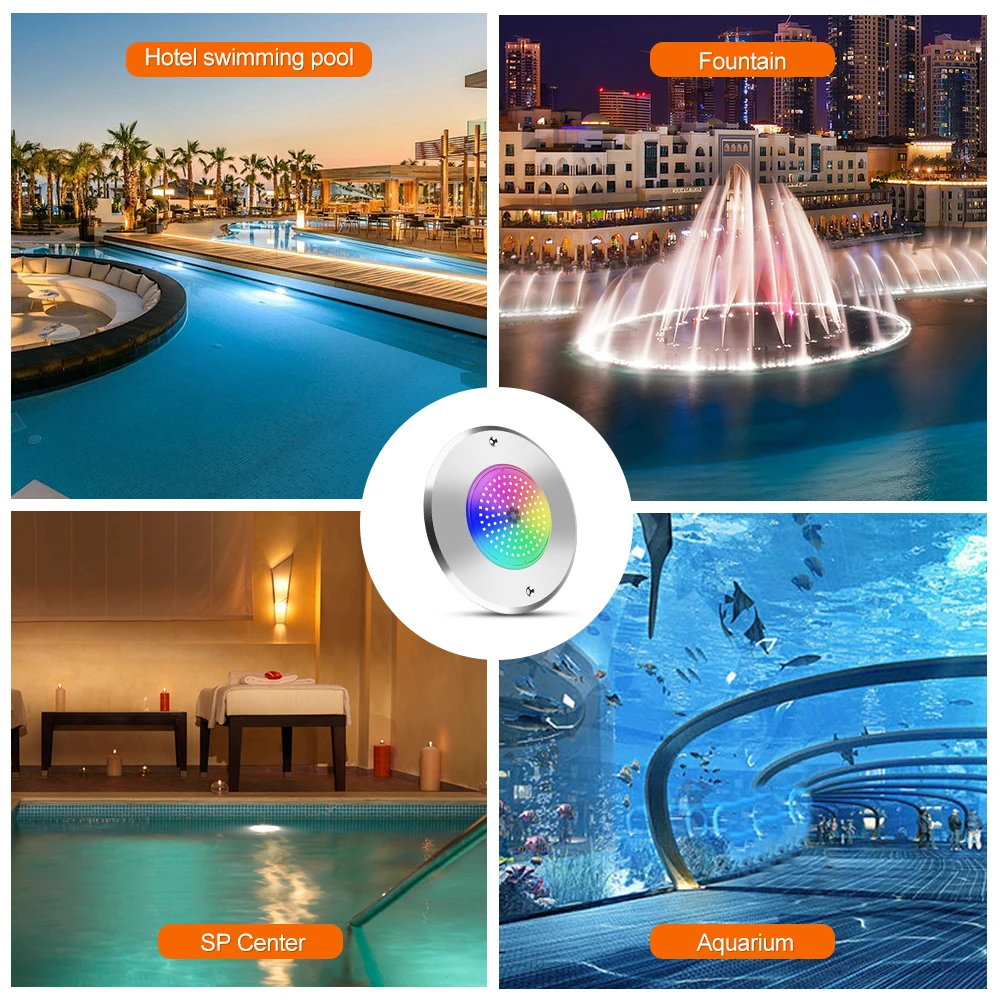

Engineered for concrete swimming pools and professional underwater facilities with high luminous efficacy and energy saving.
Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPY120-6W-AC |
SMD2835 63pcs |
6W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY160-10W-AC |
SMD2835 108pcs |
10W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY240-18W-AC |
SMD2835 252pcs |
18W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY240-25W-AC |
SMD2835 324pcs |
25W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY240-35W-AC |
SMD2835 432pcs |
35W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY280-25W-AC |
SMD2835 324pcs |
25W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY280-35W-AC |
SMD2835 432pcs |
35W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY280-42W-AC |
SMD2835 540pcs |
42W |
AC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
Material Specifications Table
|
Item |
Description |
|
Material |
Stainless steel 316L + ABS |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~+40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |
Ultra-thin 7.5mm 316L Stainless Steel + ABS, Epoxy-Resin Fully Sealed, IP68 Submersible for Concrete Pools
AC12V Built-in Driver, SMD2835 LEDs, 120 Degree Beam, Ra>80, Energy Saving in White or RGB/RGBW
18-Button RF Remote Plus APP, Switch, DALI, 0-10V Control (Controller Sold Separately), Dimmable
H05RN-F 2m Cable, -20 to +40C, for Pools, Ponds, Spas, Fountains
