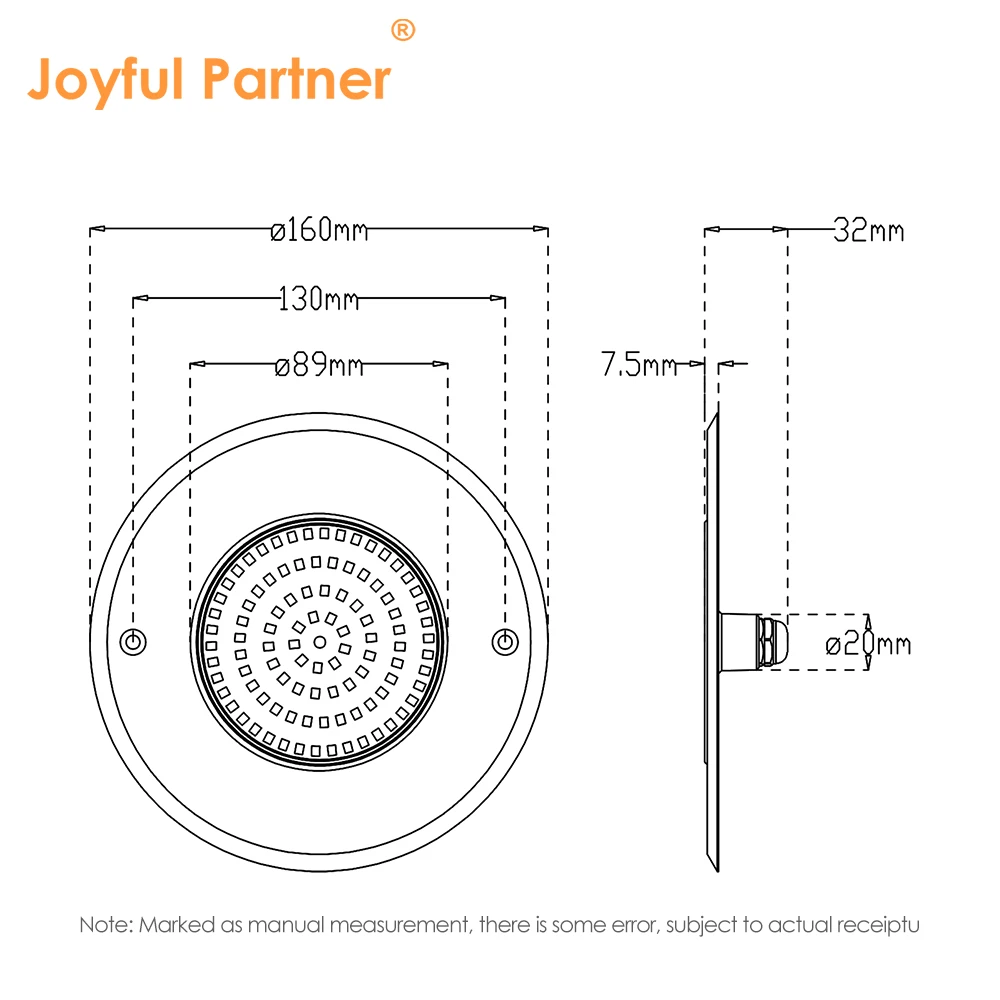

JPY160-10W-DC（Ø160mm）
Waterproof Rating: IP68
Material: Stainless steel 316L + ABS
Model: JPY120X / JPY160X / JPY240X / JPY280X Series (DC)
Certification: IP68, RoHS, CE; Control: Switch, Remote, APP, DALI, 0-10V

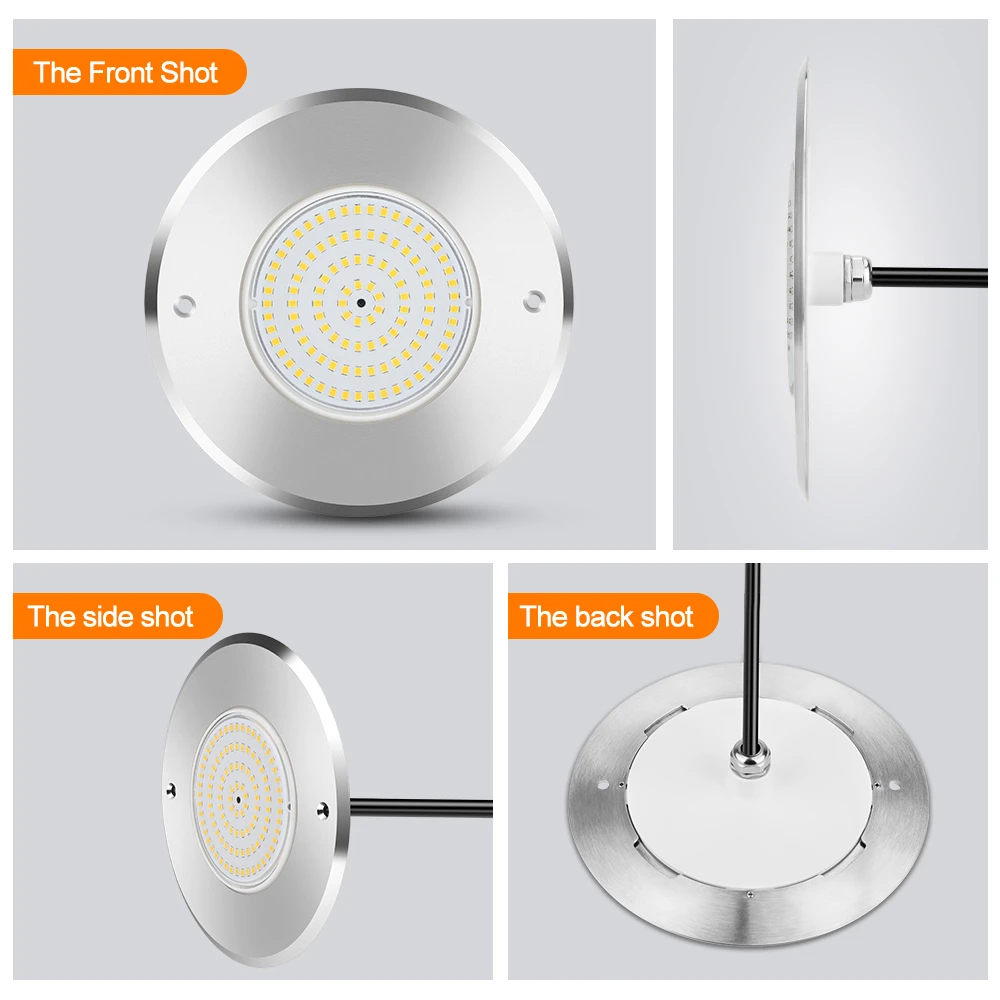

Integrated type pool light featuring an ultra-thin 7.5mm profile for a sleek, modern architectural appearance.
Robust construction using marine-grade 316L stainless steel and ABS for superior corrosion resistance in DC12V systems.
Advanced epoxy resin fully sealed technology provides reliable waterproof protection and long-term underwater durability.
Equipped with high-brightness SMD 2835 LEDs and a 120° beam angle for expansive and uniform underwater illumination.
Versatile control options include smart APP, professional DALI, and RF Remote for dynamic RGB/RGBW color synchronization.
Engineered for concrete swimming pools and professional underwater facilities with high luminous efficacy and energy saving.
Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPY120-6W-DC |
SMD2835 63pcs |
6W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY160-10W-DC |
SMD2835 108pcs |
10W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY240-18W-DC |
SMD2835 252pcs |
18W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY240-25W-DC |
SMD2835 324pcs |
25W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY240-35W-DC |
SMD2835 432pcs |
35W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY280-25W-DC |
SMD2835 324pcs |
25W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY280-35W-DC |
SMD2835 432pcs |
35W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
|
JPY280-42W-DC |
SMD2835 540pcs |
42W |
DC12V |
Warm/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
SS316L+ABS |
Material Specifications Table
|
Item |
Description |
|
Material |
Stainless steel 316L + ABS |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~+40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |

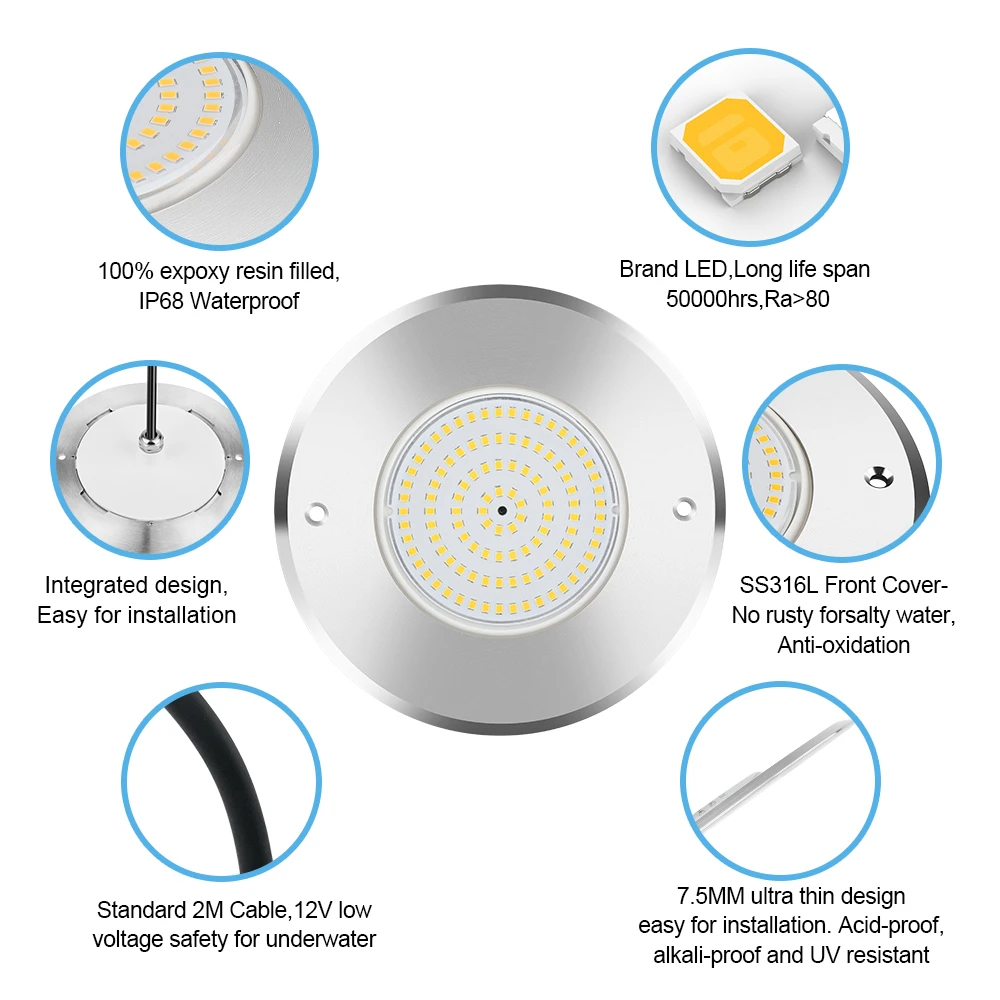

- Ultra-Slim 7.5mm Body: Mounts almost flush to the pool wall, with 2m cable and bracket for quick fitting.
- Anti-Corrosion Build: 316L stainless steel front cover with PC housing, made for chlorinated pool water, -20C to +40C.
- Fully Sealed IP68, 12V DC Safe: SMD 2835 LED with Ra>80 and a 120 degree beam for even, glare-free light.
- Warm White To RGBW In 7 Colors: Switch, IR remote, APP 2.4G or 0-10V control; 6W to 42W for different pool sizes.
