SS-JPB110-6W（Ø110mm）
Waterproof Rating: IP68
Material: Stainless steel 316L + ABS
Model: SS-JPB110X / SS-JPB152X / SS-JPB230X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

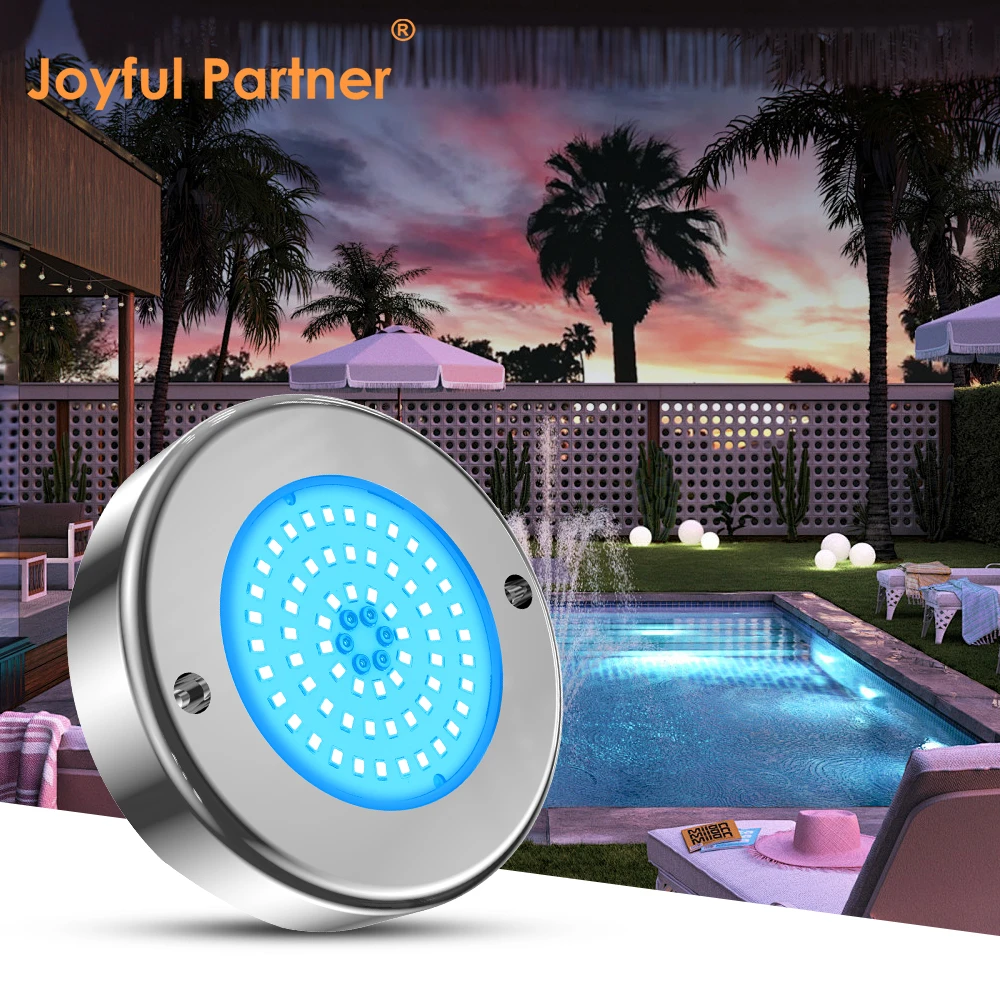

Professional wall-mounted underwater light series featuring a premium SUS 316L stainless steel front cover for ultimate corrosion resistance.
Specifically engineered for concrete swimming pools with a durable 316L+ABS hybrid housing design to ensure long-term submerged stability.
Features high-performance SMD 2835 LED light sources (Ra > 80%) delivering brilliant and energy-efficient aquatic illumination.
Equipped with an inbuilt constant current driver for AC12V systems, ensuring stable brightness across diverse cable lengths.
Precision optics with a wide 120° beam angle provide uniform light distribution, perfect for villa pools and resort water features.
Supports advanced control synchronization including smart APP and DALI protocols for dynamic multi-color RGBW lighting effects.
Model Specification Table
|
Item No. |
LED Qty (PCS) |
Power (Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
SS-JPB110-6W |
SMD2835 63pcs |
6W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
|
SS-JPB152-10W |
SMD2835 135pcs |
10W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
|
SS-JPB152-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
|
SS-JPB230-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
|
SS-JPB230-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
|
SS-JPB230-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
|
SS-JPB230-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
Stainless steel 316L + ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
SS316L + ABS |
|
LED |
Hight bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 2*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |

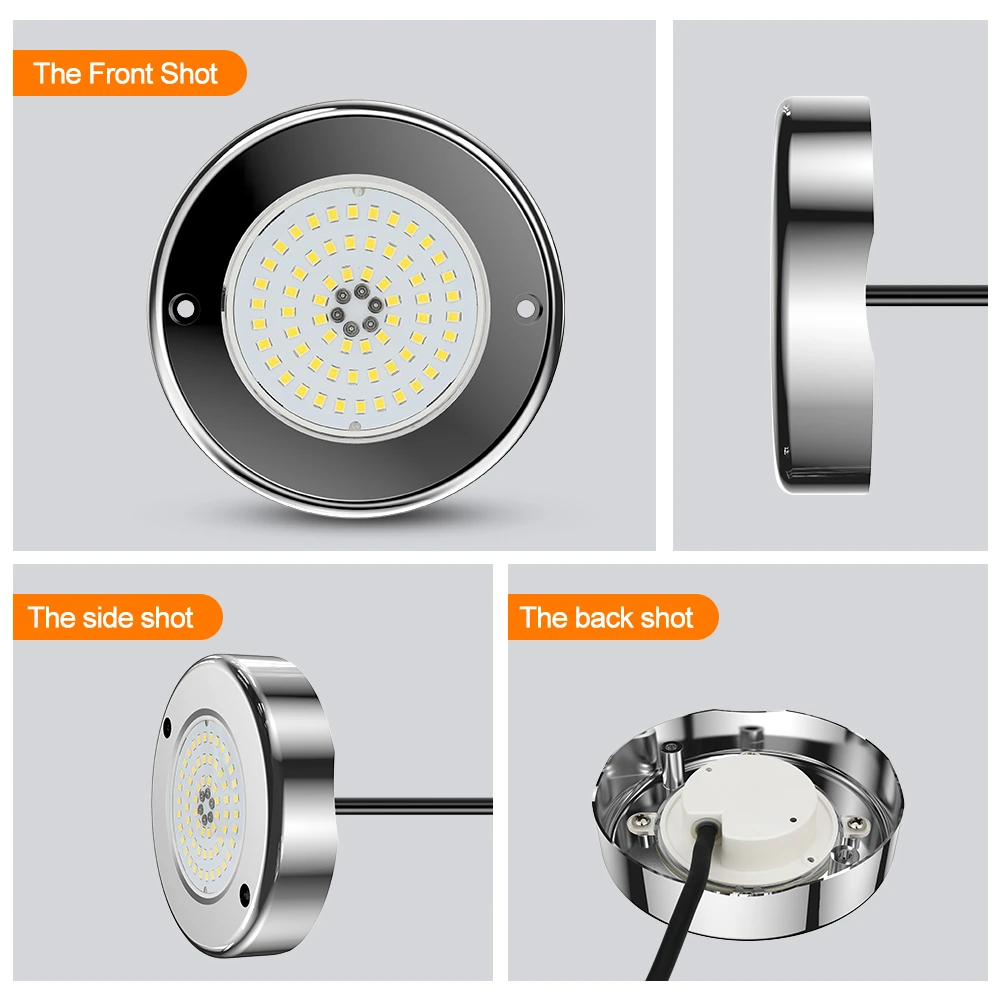

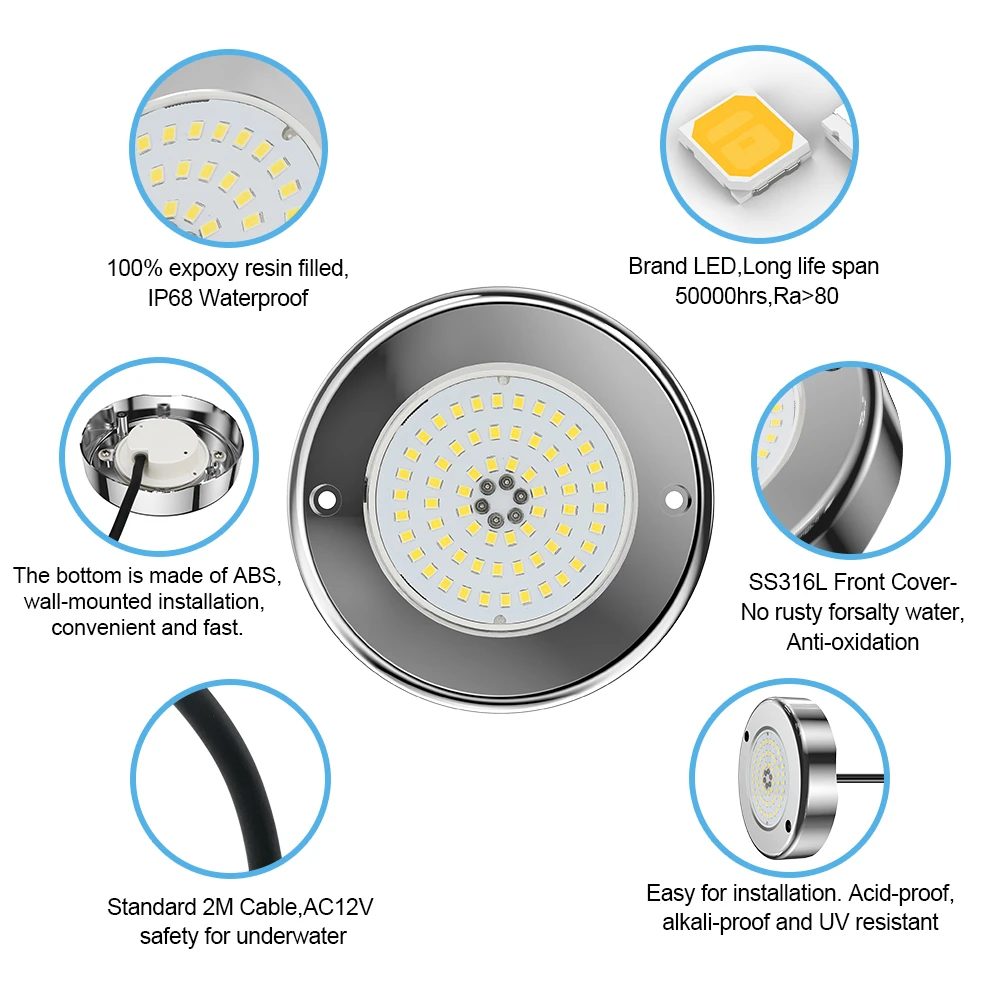

316L Steel Face: a marine grade stainless front with an ABS body, so the lamp face keeps its finish in chlorinated water.
In One Range: 6W to 42W in 110mm to 280mm sizes, so one series covers small, mid and large concrete pools.
IP68 At Every Depth: sealed construction working between -20C and +40C, with a 120 degree beam and Ra>80 output.

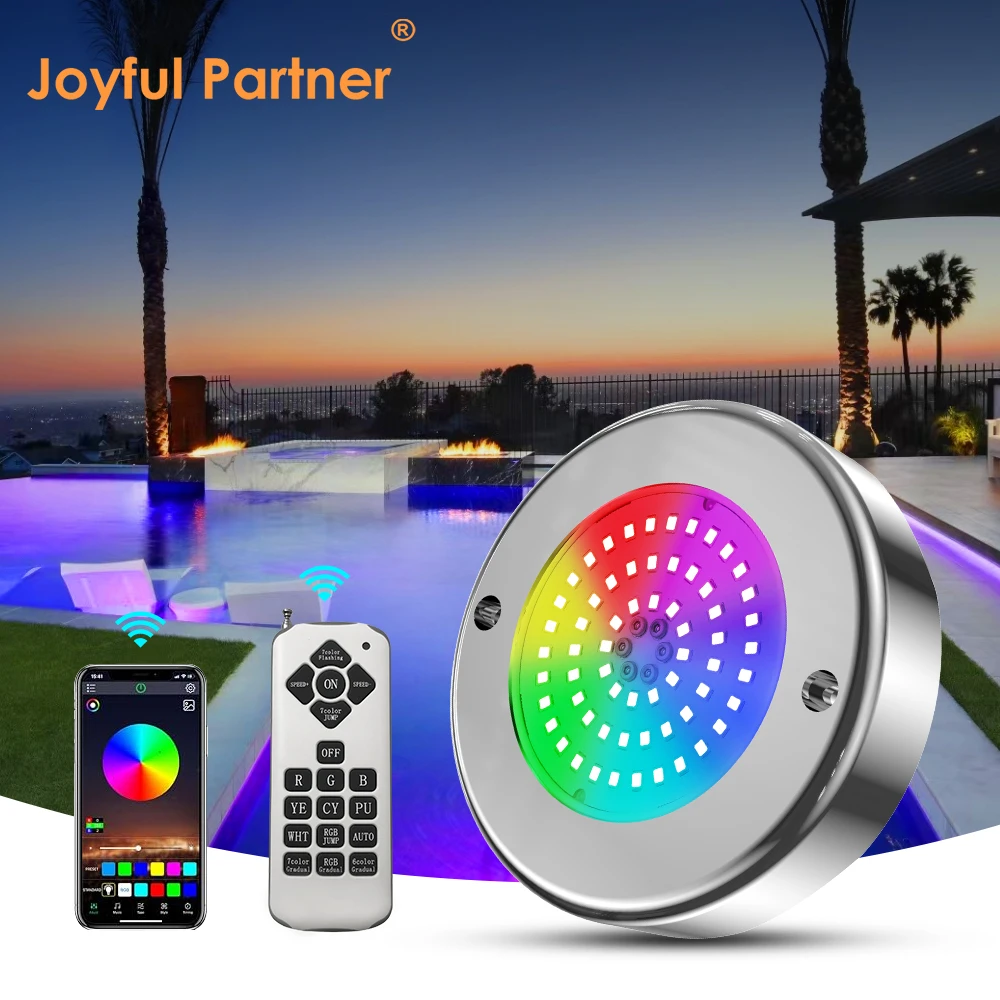

Control Your Way: Switch, RF/IR remote, APP, DALI or 0-10V, across warm, natural and cool white, plus RGB and RGBW.
