JPC260-18W（Ø260mm）
Waterproof Rating: IP68
Material: High-strength PC+ABS
Model: JPC260X / JPE260X Series (AC)
Certification: IP68, RoHS, CE | Control: Switch, Remote, APP, DALI, 0-10V

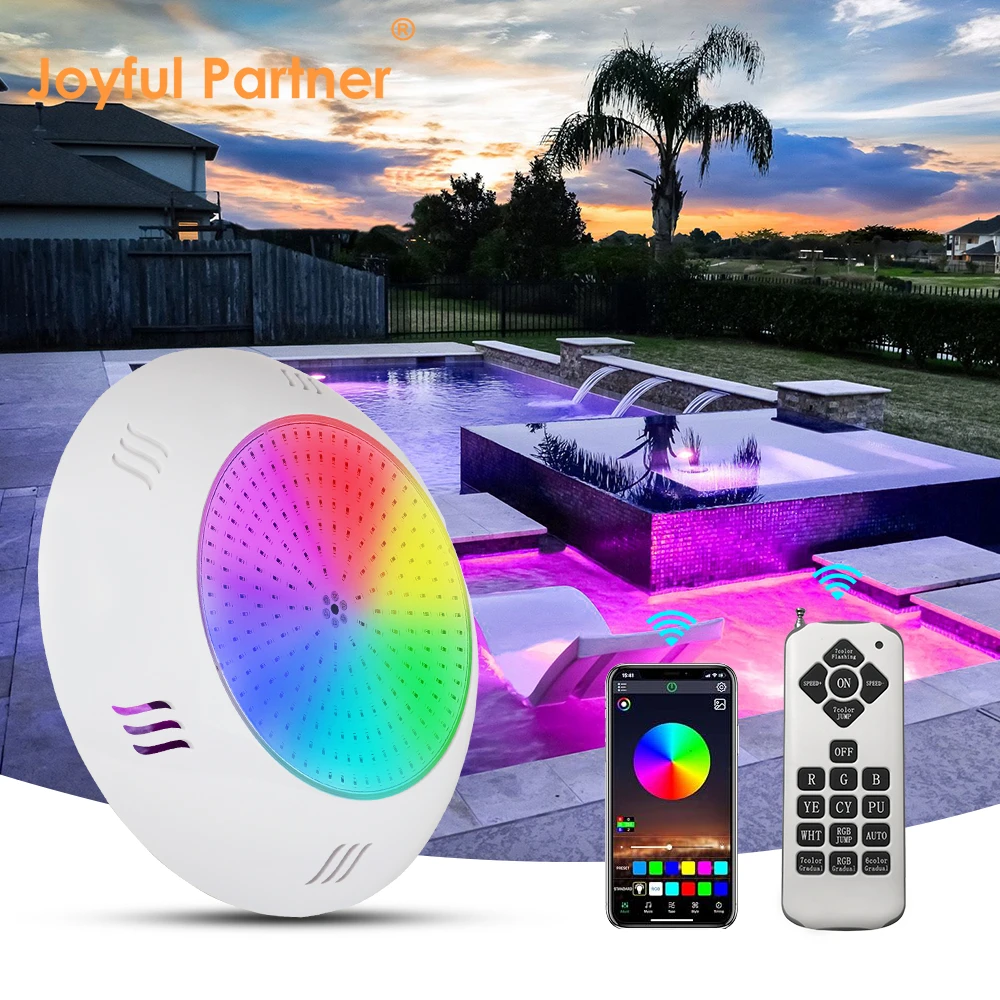

Professional wall-mounted underwater light series featuring a massive DIA 260MM footprint for powerful aquatic center illumination.
Constructed from high-strength PC+ABS plastic to ensure 100% corrosion resistance in AC12V public pool environments.
Features high-performance SMD 2835 LED light sources delivering brilliant and energy-efficient underwater lighting.
Equipped with an inbuilt constant current (CC) driver to ensure stable brightness and long-term underwater reliability.
Engineered with a wide 120° beam angle and precision optics to ensure uniform light coverage across the entire facility.
Supports versatile control modes including smart APP and DALI synchronization for dynamic multi-color RGBW lighting effects.

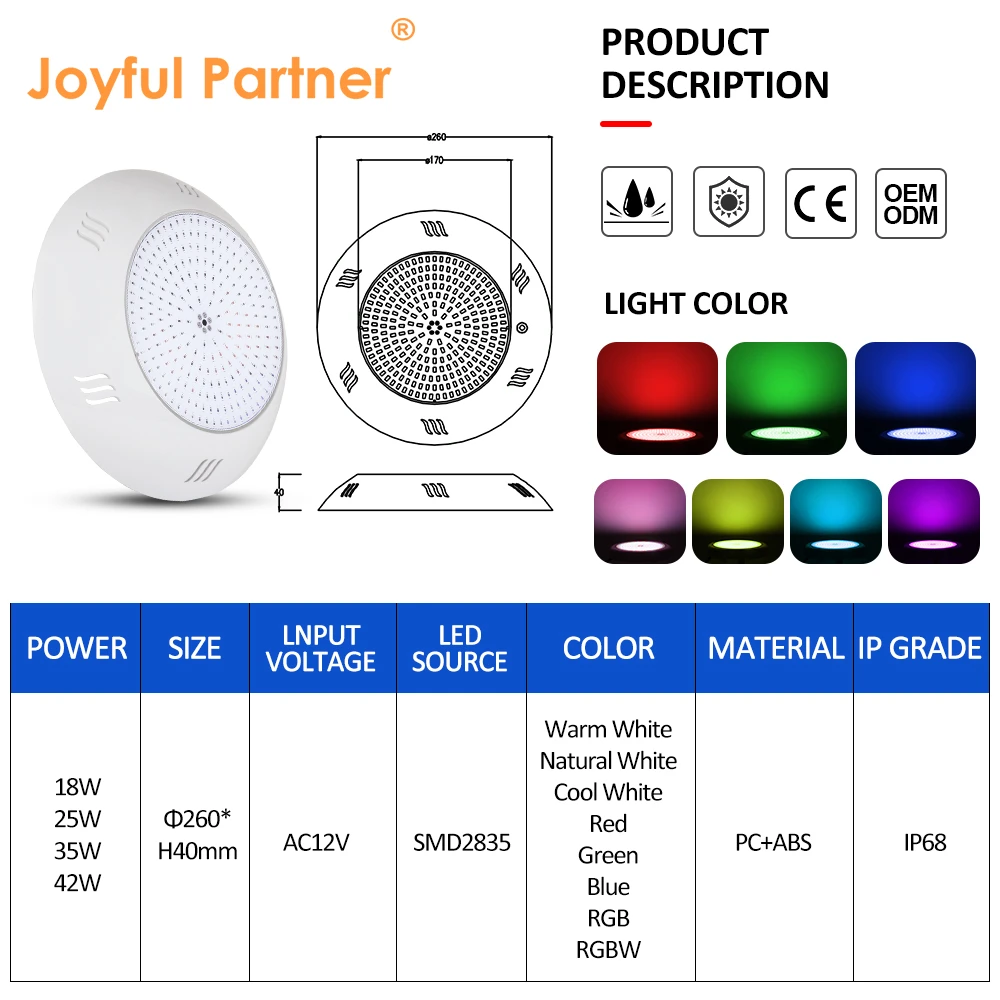

Model Specification Table
|
Item No. |
LED Qty(PCS) |
Power(Watts) |
Input Voltage |
LED Color |
Beam angle |
Material |
|
JPC260-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPC260-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPC260-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPC260-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPE260-18W |
SMD2835 252pcs |
18W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPE260-25W |
SMD2835 324pcs |
25W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPE260-35W |
SMD2835 432pcs |
35W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
|
JPE260-42W |
SMD2835 540pcs |
42W |
AC12V |
Warm/Natural/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
PC+ABS |
Material Specifications Tab
|
Item |
Description |
|
Material |
PC+ABS |
|
LED |
High bright SMD LED |
|
CRI |
Ra>80% |
|
IP Grade |
IP68 |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2*1.0mm²=2m(for single color) / H05RN-F 4*1.0mm²=2m(for RGB/RGBW) |
|
Control mode |
Switch control, Remote control(RF,IR), APP, DALI, 0-10V ... |
Sealed Body, No Metal Face: molded PC and ABS construction means nothing to pit or rust in chlorinated pool water.
Single 18W Rating: 252 SMD2835 chips on a 260mm face give a bright, even spread for small and mid size concrete pools.
Fully Submerged Rated: IP68 sealing and an AC12V supply let the lamp keep running from -20C to +40C with no service.
Five Ways To Control: switch, RF/IR remote, APP, DALI and 0-10V dimming, with 8 color options from warm white to RGBW.
