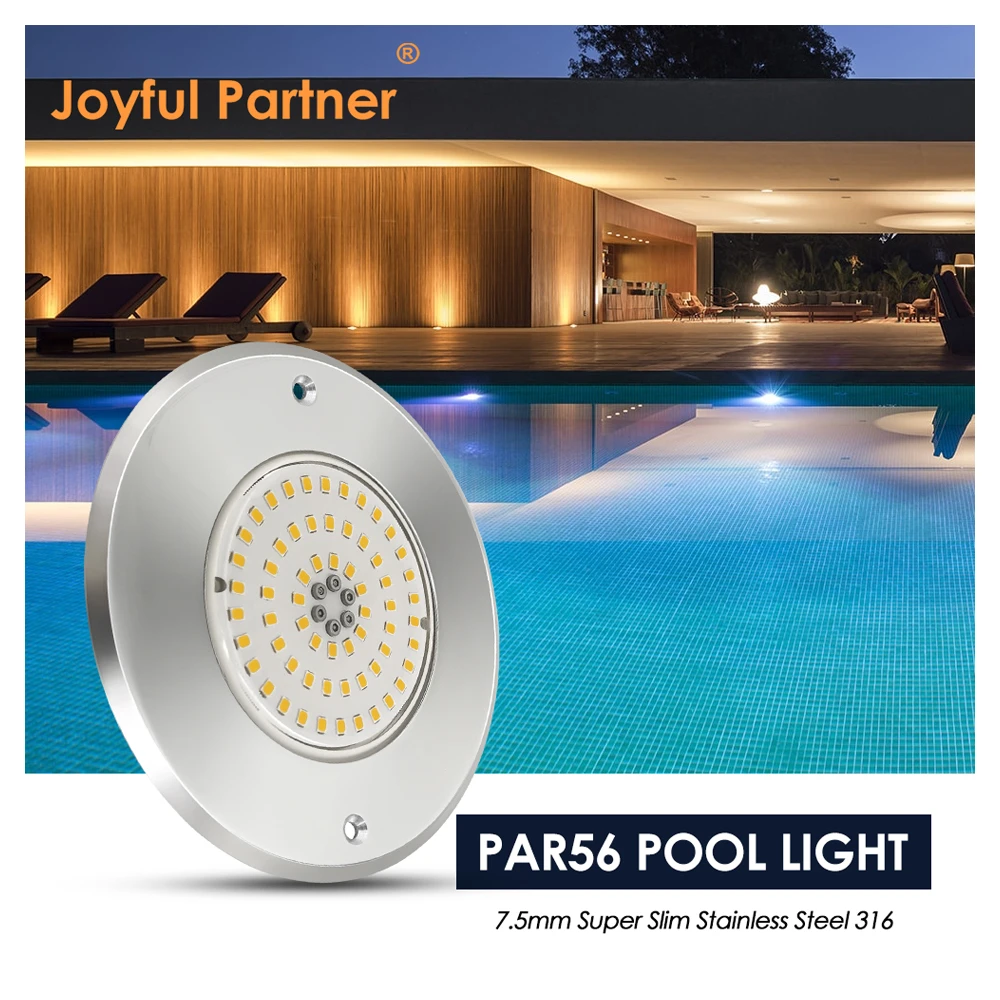

Submersible Pool Light PAR56 6W SMD2835 Ultra Thin SS316L+ABS Waterproof DC12V Ultra-thin LED Pool Light/Split type Swimming Pool Light (AC series)
Waterproof Rating: IP68
Material: Stainless steel 316L + PC

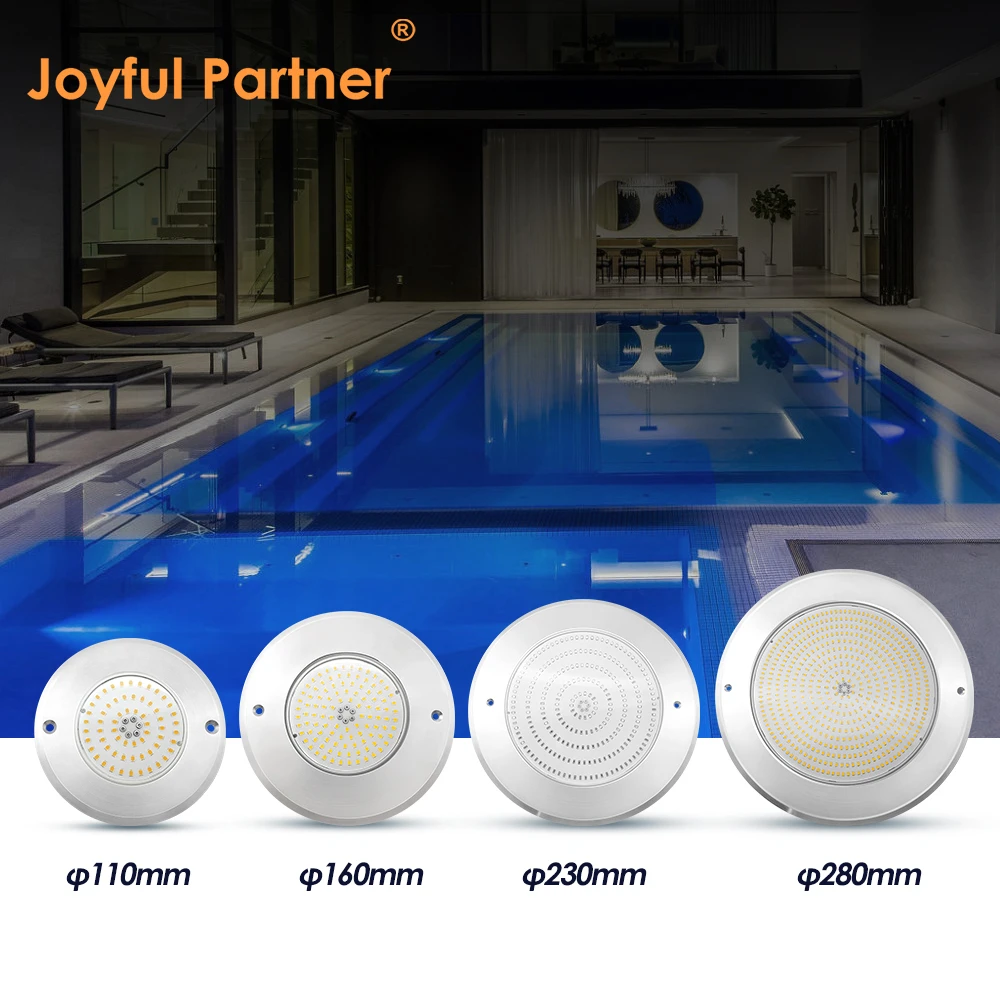

Model: JP110X / JP160X / JP230X / JP280X Series (AC)
Certification: IP68, RoHS, CE; Control: Switch, Remote, APP, DALI, 0-10V

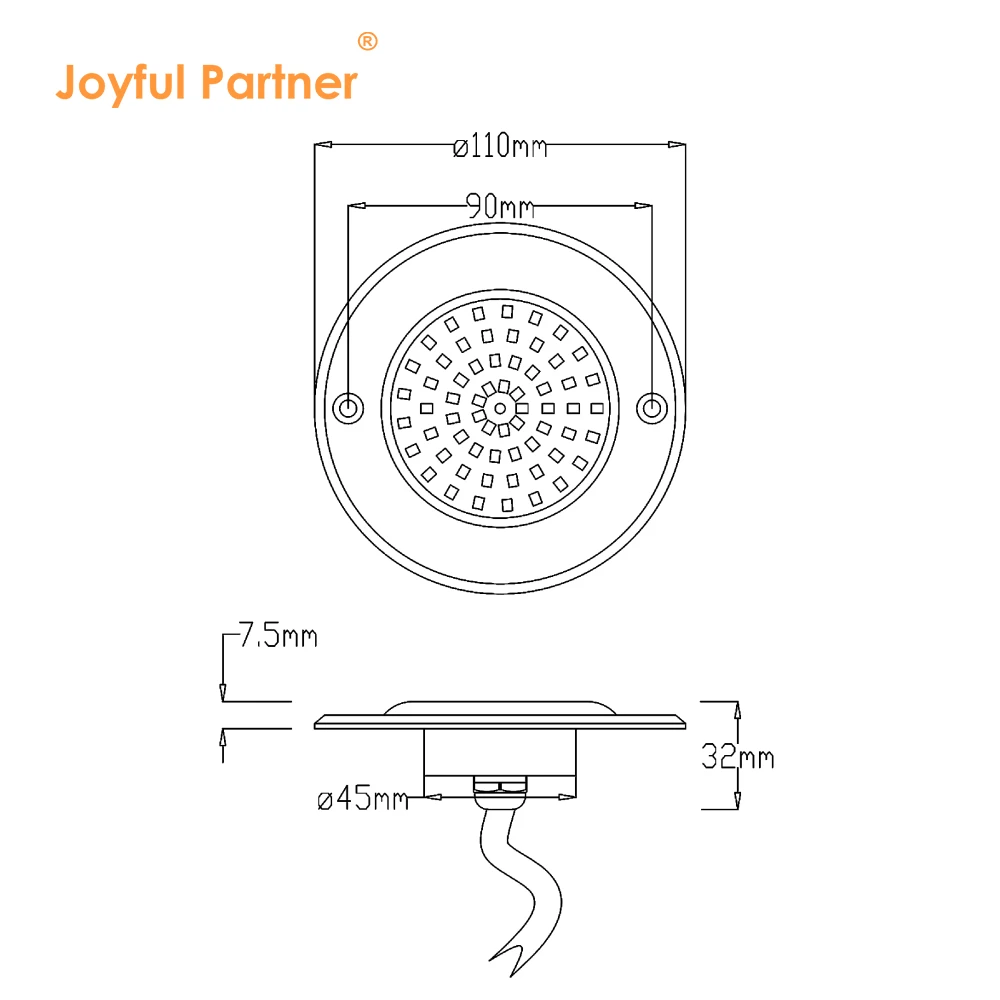

High-performance split type pool light featuring an ultra-thin 7.5mm profile for modern aquatic architectural designs.
Constructed with a premium 316L stainless steel front cover and high-strength PC housing for superior corrosion resistance.
Equipped with high-brightness SMD 2835 LEDs ensuring energy-efficient and consistent underwater illumination for AC12V systems.
Features a wide 120° beam angle and versatile color options including Warm White, Cool White, and dynamic RGBW effects.
Compatible with a variety of advanced control protocols such as Switch control, RF/IR Remote, and smart APP integration.
Fully IP68 waterproof rated with 2-meter specialized underwater cables, specifically designed for high-end swimming pool installations.
Model Specification Table
|
Item No. |
LED Qty(pcs) |
Power |
Input Voltage |
Emitting Color |
Beam Angle |
Material |
|
JP110-6W-AC |
SMD 2835 63pcs |
6W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP160-10W-AC |
SMD 2835 108pcs |
10W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP230-18W-AC |
SMD 2835 252pcs |
18W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP230-25W-AC |
SMD 2835 324pcs |
25W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP230-35W-AC |
SMD 2835 432pcs |
35W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP280-25W-AC |
SMD 2835 324pcs |
25W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP280-35W-AC |
SMD 2835 432pcs |
35W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
|
JP280-42W-AC |
SMD 2835 540pcs |
42W |
AC12V |
Warm White/Cool White/Red/Green/Blue/RGB/RGBW |
120° |
316SS+PC |
Material Specifications Table
|
Item |
Description |
|
Housing |
PC |
|
Front Cover |
Stainless steel 316L |
|
LED |
High bright SMD LED |
|
CRI |
Ra>80 |
|
IP Grade |
IP68 |
|
Working Environment |
-20℃~+40℃ |
|
Power cable |
2 meters H05RNF 2 wires (single color) / 2 wires (RGB)/(RGBW) |
|
Control mode |
Switch control, Remote control(RF, IR), APP, DALI, 0-10V ... |
