Product Details:
|
| Color Temperature(CCT): | 2700k-6000k | Input Voltage(V): | DC 12V24V AC100-240V |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 45 | Warranty(Year): | 2-Year |
| Color Rendering Index(Ra): | 80 | Usage: | Staircase |
| Voltage: | 100-240V | Base Material: | Aluminum |
| Diffuser: | Tempered Glass | Light Source: | LED |
| Support Dimmer: | Yes | Lighting Solutions Service: | Project Installation |
| Lifespan (hours): | 50000 | Working Time (hours): | 50000 |
| Product Weight（kg）: | 0.5 | Product Name: | Led Step Light |
| Material: | Aluminum Body | IP Rating: | IP65 |
| Style: | Morden | Installation Method: | Recessed |
| Keyword: | Led Wall Light Stair Light Step Light Corner Light | Wattage: | 3W 5W |
| Color: | White,grey,support Cutomization | Application: | Garden, Coner,stair, Path |
| Highlight: | 3W LED Recessed Wall Light,5W LED Recessed Wall Light,IP65 LED Linear Recessed Lighting |
||

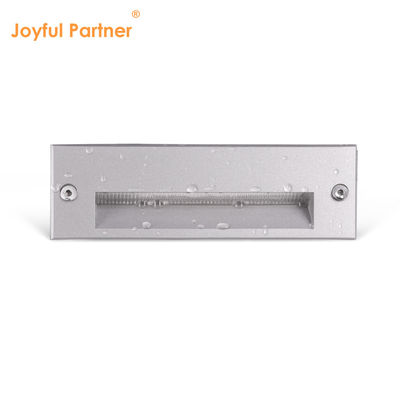

Product Name:IP65 3W 5W LED Step Light Recess Linear Light IP65 LED Wall Lamp Buried Light For Stair Corner
|
Item No.
|
Light source
|
Lens beam angle(°)
|
Consumption(watt)
|
Input Voltage(V)
|
Ik rate
|
|
819067
|
SMD5630*6
|
N/A
|
3
|
DC12V/DC24V
AC100-240V |
9
|
|
819058
|
1*5W COB LED
|
N/A
|
5.5
|
DC12V/DC24V
AC100-240V |
9
|
|
Material specifications
|
|
|
|
Housing&Front cover
|
Made of ADC12#Die-casting outdoor powder coated aluminum
|
|
|
Glass
|
Tempered glass.T=4mm
|
|
|
Lens
|
Optical lens,effciency≥85%
|
|
|
Gasket
|
Tooling shaped seal
|
|
|
LED
|
SMD or COB LED,Ra>80
|
|
|
PCB
|
Excellent heat conductivity aluminum,
coeffcient of heat conductivity≥2.0w/mk |
|
|
Driver
|
Constant current output
single color LED=1-circuit output |
|
|
Operating temperature
|
(-20℃~40℃)
|
|
|
Power cable
|
H05RN-F2*0.75mm²L=0.3m(low voltage)
H05RN-F3*0.75mm²L=0.3m(high voltage) |
|
