Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors

1000
MOQ
$5/pieces >1000
Price
Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Certifications: TUV, SAA, CE, RoHS
Color: Black
Housing Material: PA66
Waterproof Rating: IP68
Voltage: 24A 450VAC
Working Temperature: T60
Fire Retardant Level: V2
Cross Section: 0.08 ~ 2.5mm²
Cable Diameter: 4-8mm/7-10.5mm
Contact/Terminal Material: Nickel-Plated Brass
One In,many Out: 1-2to/3to/4to/5to/6to
Wire Range: 2*0.75/1.0/1.5/2.5mm²
Highlight:

Waterproof IP68 Electrical Junction Box

,

Quick IP68 Electrical Junction Box

,

IP68 Quick Connect Wire Connectors

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Joyful Partner
Certification: CE, EMC,RoHS
Model Number: JP-Y11Y13/Y15-2P
Payment & Shipping Terms
Packaging Details: Inner box and Shockproof Carton Box
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Supply Ability: 500000 Carton/Cartons per Month
Product Description

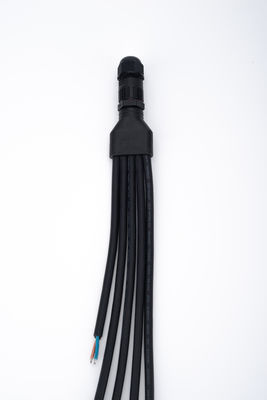

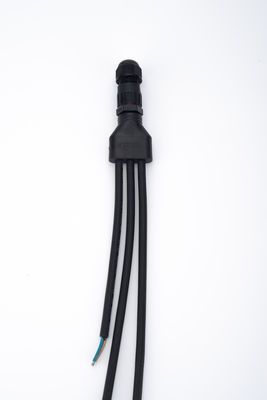

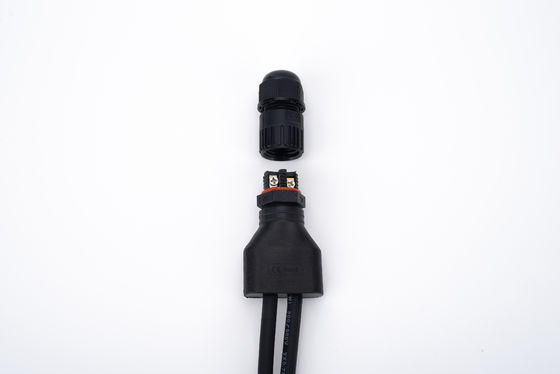

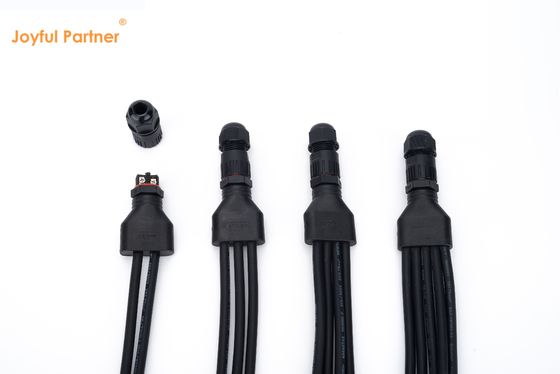

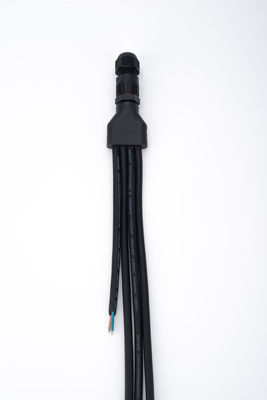

IP68 Outdoor Waterproof Electrical Junction Box Wire Cable Connector One In Many Out



IP level:   IP68


Color:



black

Ampere / Voltage



24A 450VAC

Working Temperature



-40℃- +105℃

Fire retardant level



V2

Cross section



0.08 ~ 2.5mm²

Cable diameter



4-8mm,7-10.5mm

Certificate



TUV SAA CE RoHS

Enclosure Material



PC

Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 0Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 1Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 2Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 3

Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 4

Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 5Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 6Waterproof IP68 Electrical Junction Box One In Many Out Quick Connect Wire Connectors 7
