Product Details:
|
Color Temperature(CCT): | 2700k-6500k | Lighting Solutions Service: | Project Installation |
---|---|---|---|
Warranty(Year): | 2-Year | Input Voltage(V): | DC 24v,12v,AC100-240v |
Working Temperature(℃): | -20 - 40 | Working Lifetime(Hour): | 50000 |
Front Cover: | Stainless Steel | IP Rating: | IP67 Waterproof |
Application: | Step,stair,Deck,Boat,Humid Environment | Item Type: | LED Underground Light |
Shape: | Square | Glass: | 8mm Tempered Step Glass |
OEM&ODM: | Available | Power: | 6 Wattage |
Certificate: | CE,RoHS,EMC | Lens Effciency: | ≥85% |
Transport Package: | Shockproof Carton Box | Port: | Guangzhou/Shenzhen |
Highlight: | 6W LED Underground Light,IP67 LED Underground Light,Round LED Underground Light |
Item No. | Light source | beam angle | Consumption(watt) | Input Voltage | Ik rate |
82578R | 1*6W COB LED | 12°/24°/38° | 6.5W | DC12V/DC24V/AC100V-240V | 8 |
82578S | 1*6W COB LED | 12°/24°/38° | 6.5W | DC12V/DC24V/AC100V-240V | 8 |
Material specifications | |
Housing | Aluminum anodized or outdoor powder coated finish housing.T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B |
Front cover | 304# or 316#Stainless Steel |
Lens | Optical lens,effciency≥85% |
Glass | Tempered glass.T=7mm |
Gass pressure capacity: | Ful area =760kgs |
Gasket | Molding shaped silicone seal |
Operating temperature | (-20°~40°) |
Power cable | H05RN-F2*0.75mm²L=0.5m(low voltage) H05RN-F3*0.75mm²L=0.5m(for single color/high voltage) |
Mounting sleeve | Aluminum |

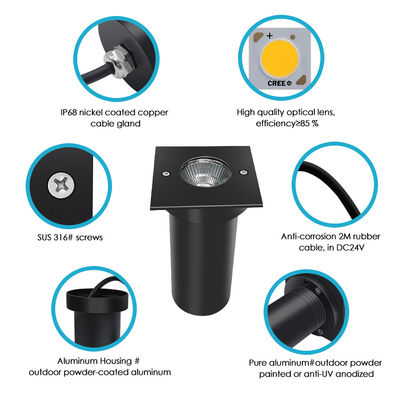

(1)12#Die-casting outdoor powder painting aluminum
(2)Stainless steel front cover,T=3mm.
(3)Tempered step glass.
(4)High lumen brand LED, long life span ,Ra>80
(5)Anti-corrosion rubber cable,H05RN
Advantage Of recessed led light 6 watt
1. Resin Filled -100% Waterproof
2. High quality LED Chip used
3. 304SS surface ring-No rusty for salty water
4. Easy Installation
5.Widely Used for Indoor Deck & Outdoor Landscape Decoration:30° Beam Angle, beautify your Garden easily, great decoration for indoor outdoor Decks, Fences, Steps, Path, Walls, Trees.
6.provide 24 month after-sale service.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
