Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing

Large Image : Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Joyful Partner
Certification:	CE, EMC,RoHS
Model Number:	JP805

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	Negotiable
Packaging Details:	Shockproof Carton Box
Delivery Time:	5-10 working days
Payment Terms:	MoneyGram, Western Union, T/T
Supply Ability:	500000 Carton/Cartons per Month

Contact Now

Polarization Underground Lights 4W DC12V 24V Beam Angle 30*40Degree IK Rate 08 Pure Aluminum 6063# Housing

Description

Lighting Solutions Service:	Project Installation	Working Time (hours):	50000
Warranty(Year):	2-Year	Input Voltage(V):	DC24V 12V
CRI (Ra>):	85	IP Rating:	IP67 Waterproof
Application:	Step,stair,Deck,Boat,Humid Environment	Glass:	8mm Tempered Step Glass
OEM&ODM:	Available	Lens Effciency:	≥85%
Usage:	Outdoor Garden Landscaping Decorative	Port:	Guangzhou/Shenzhen
Highlight:	Polarization underground LED light , DC12V 24V underground light , Pure aluminum 6063 housing light

Polarization Underground Lights 4W DC12V 24V Beam Angle 30×40° IK Rate 08 Pure Aluminum 6063# Housing

Product Overview

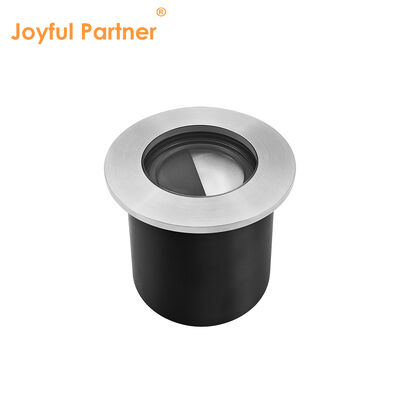

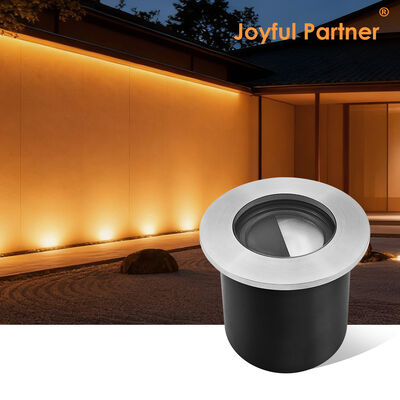

JP805 is an asymmetrical light output type IP67 recessed floor light designed for floor integration, offering various design possibilities in architectural illumination.

Technical Specifications

Item No.	Light Source	Lens Beam Angle	Power Consumption	Input Voltage	IK Rating
JP805	4×1W LED	30°×40°	4.5W	DC24V/DC12V	08

Material Specifications

Component	Specification
Housing	Pure aluminum 6063# housing, outdoor power painted or anti-UV anodized
Front Cover	304# or 316# Stainless Steel
Lens	High quality optical lens, efficiency ≥85%
Glass	Tempered glass, T=12mm
Gasket	Molding shaped silicone seal
Operating Temperature	-20℃ to 40℃
Power Cable	H05RN-F 2×0.75mm² L=0.5m (low voltage)
Mounting Sleeve	Aluminum back box

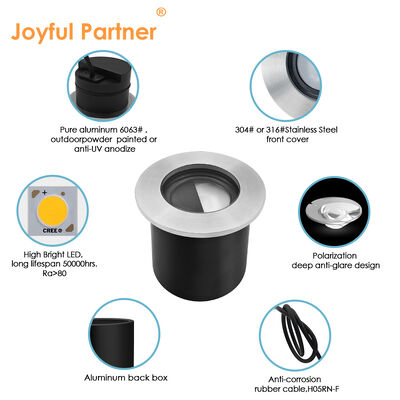

Key Features

Aluminum housing with stainless steel cover for superior anti-corrosion and crack resistance
Recessed mounted design with IP67 waterproof rating
High-efficiency LEDs with excellent lumen output and energy savings
Anti-corrosion rubber cable (H05RN-F) for durability
Versatile applications: corridors, pathways, roads, parks, stages, walls, backyards, squares, lawns, playgrounds, architecture, streets, exhibitions, and viaducts
High-performance electronic design and reliable heat dissipation
Humanized anti-glare optical design

Installation Notes

Must be installed by a licensed electrician (installation instructions provided in each product box)
Constructed from 316 stainless steel for durability and corrosion resistance. Clear protective coating may peel over time in outdoor or high-pressure cleaning conditions
To maintain IP rating, use circular cable in junction. For parallel and single connections, recommend appropriate IP68 connectors
Ensure the IP rating is suitable for intended use to avoid disappointment and warranty issues

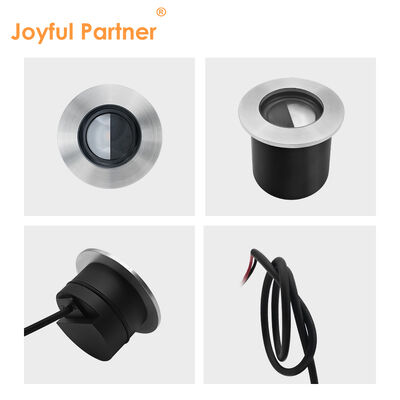

Product Images
