Product Details:
|
| Lighting Solutions Service: | Project Installation | Lifespan (hours): | 50000 |
|---|---|---|---|
| Keyword: | Garden Light Tree Lamp Spot Lighting | Cable Gland: | IP68,PG9 Nickel Coated Copper |
| Usage: | Outoors Patio Pathway Landscape Garden | Material: | Extruded Aluminum Alloy #6063 |
| Highlight: | LED garden spike light 10W,CREE COB LED garden light,plastic spike LED spot light |
||
| Item No. | Light Source | Lens Beam Angle | Power Consumption | Input Voltage | IK Rating |
|---|---|---|---|---|---|
| B83310COB | 1×10W CREE | 15°/25°/38°/60° | 10W | DC12V/DC24V | 04 |
| B83510COB | 1×10W CREE | 15°/25°/38°/60° | 10W | AC100-240V | 04 |

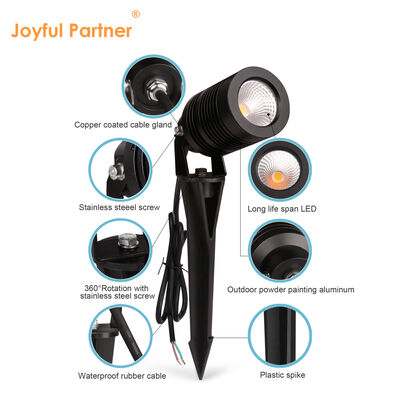

| Housing | Extruded aluminum alloy #6063, anodic oxidation or outdoor powder painting |
| Glass | Tempered glass, T=3mm |
| Lens | Optical lens, efficiency ≥85% |
| Cable Gland | IP68, PG9 nickel coated copper |
| Gasket | Tooling shaped seal |
| LED | CREE COB LED, Ra>80 |
| Driver | Constant current output |
| Spike | PVC (grey or black) |
| Mounting Base | Anodic oxidation or outdoor powder painting |
| Power Cable | H05RN-F 2×0.75mm² L=1m (low voltage) H05RN-F 3×0.75mm² L=1m (high voltage) |
| Honeycomb | Optional Parts |
| Antiglare Hood | Optional Parts |
