LED Inground Light Strong Load Bearing LED Drive Over 316 stainless steel front ring SMD LED With ABS Mounting Sleeve Side-emitting inground light/LED Inground Light
Waterproof Rating: IP67
Material: Outdoor dark gray powder coated aluminum with 304# or 316# Stainless Steel face cover
Model: XE8251X Series
Certification: IP67, RoHS, CE

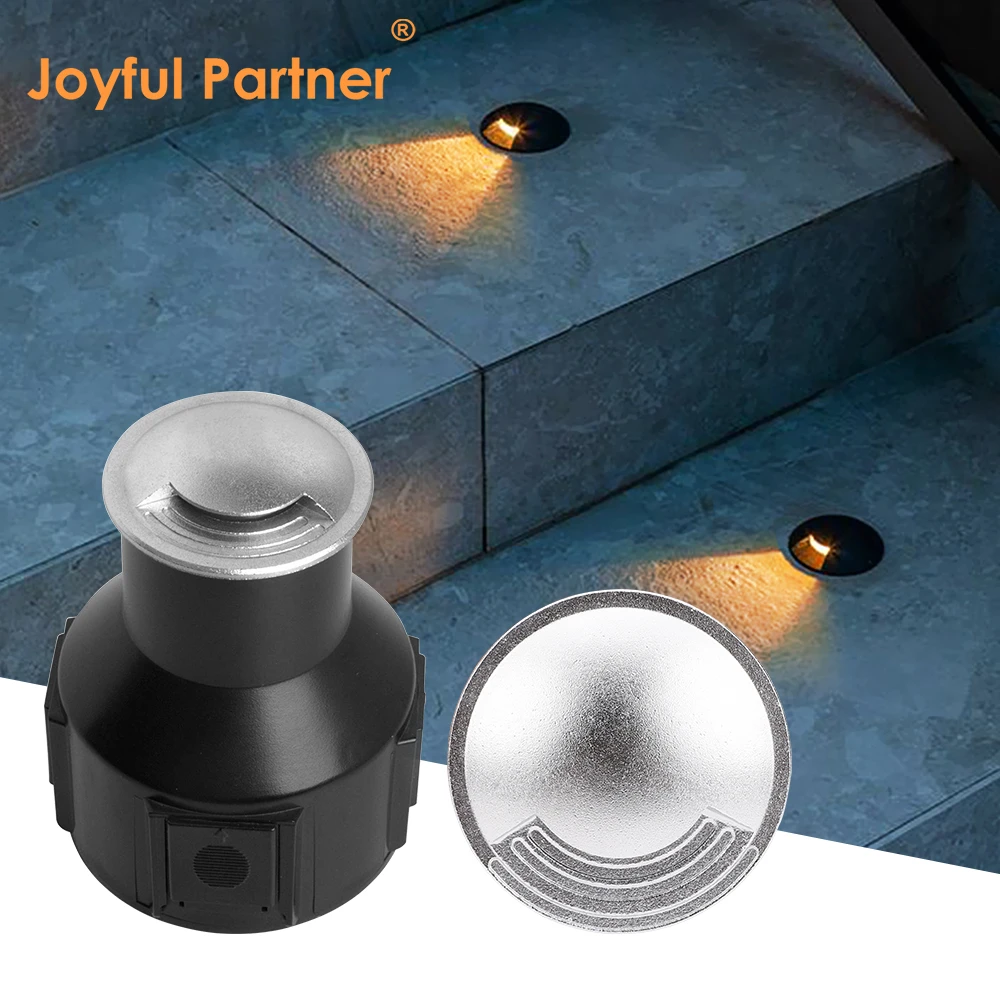

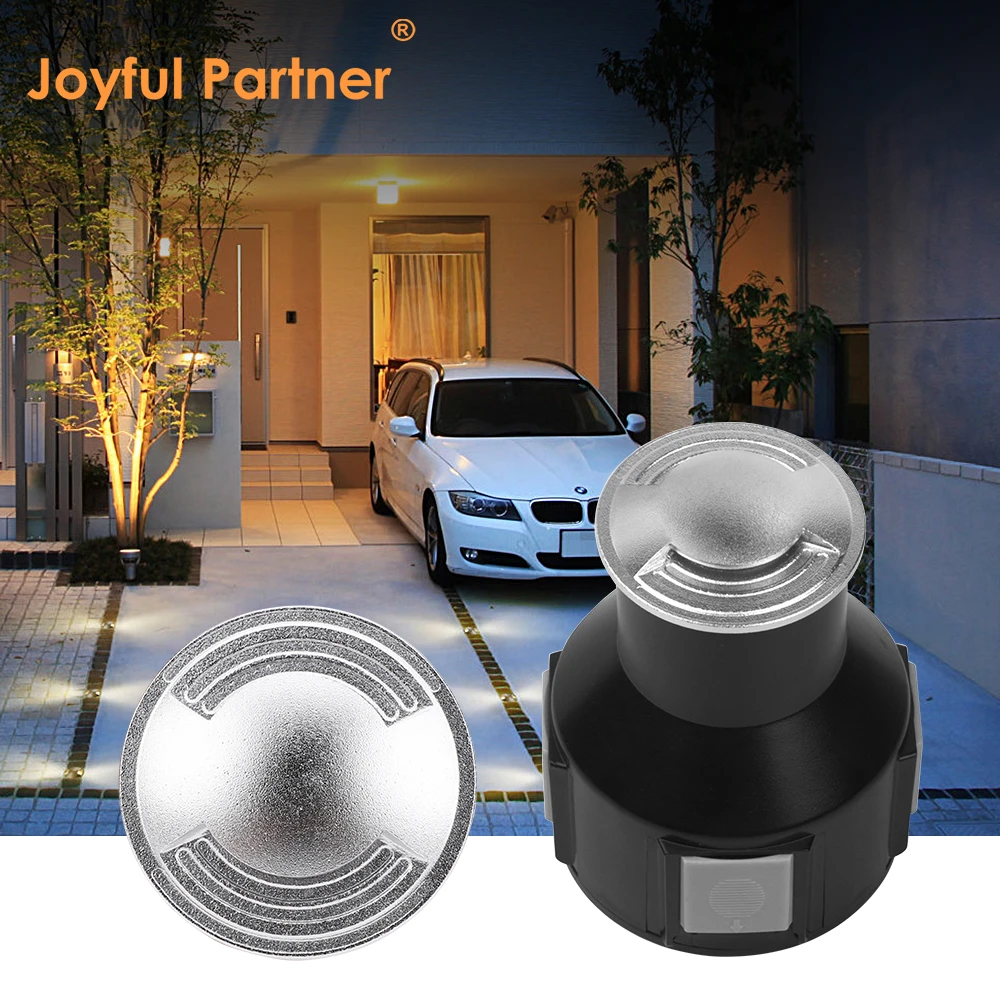

Professional side-emitting inground light series designed for subtle architectural pathway and deck illumination.
Features a high-grade 304# or 316# stainless steel face cover for superior corrosion resistance and aesthetic appeal.
Constructed with durable outdoor-grade powder-coated aluminum housing (T=60-80um) for optimal thermal management.
Equipped with a high-impact PMMA diffuser and precision optical lens ensuring efficient light transmission (≥85%).
Engineered for high-traffic environments with an IK10 impact rating and a pressure capacity of >1200kgs.
Reliable IP67 waterproof protection ensured by molding shaped silicone seals and integrated ABS mounting sleeves.
Model Specification Table
|
Item No. |
Light source |
Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
|
1E82511(H)/2E82511(H)/4E82511(H) |
1x1W LED |
8°/15°/30°/45°/60° |
1.2 |
DC12V/DC24V AC100-240V |
10 |
|
1E82512(H)/2E82512(H)/4E82512(H) |
1x2W LED |
8°/15°/30°/45°/60° |
2.6 |
DC12V/DC24V AC100-240V |
10 |
|
1E82516/2E82516/4E82516 |
1x3W RGB3in1 LED |
30°/45°/60° |
3.1 |
DC12V/DC24V |
10 |

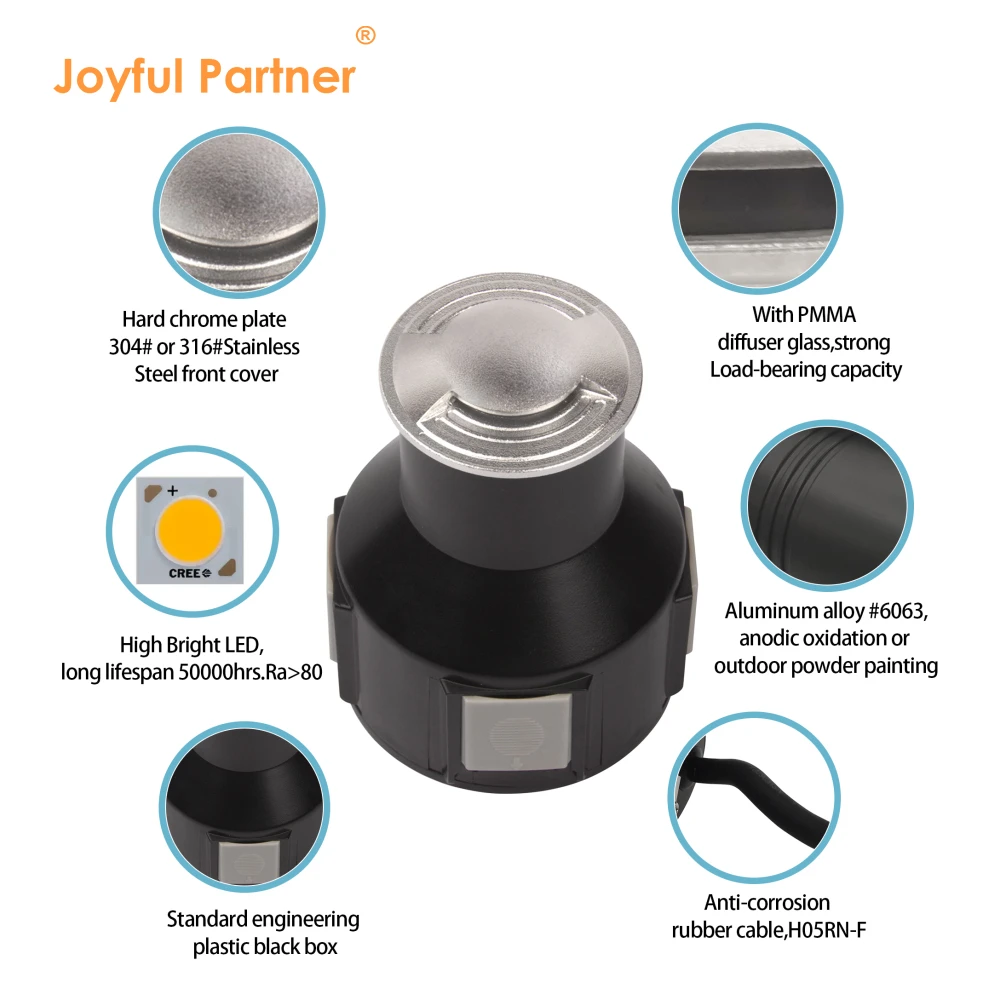

Material Specifications Table
|
Item |
Description |
|
Housing |
Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1 / ASTM class 4B |
|
Front cover |
Hard chrome plate 304# or 316# Stainless Steel |
|
Lens |
Optical lens, efficiency≥85% |
|
Glass |
PMMA diffuser |
|
Glass pressure capacity |
> 1200kgs |
|
Gasket |
Molding shaped silicone seal |
|
Operating temperature |
-20℃~40℃ |
|
Power cable |
H05RN-F 2x0.75mm² L=0.5m(low voltage) / H05RN-F 3x0.75mm² L=0.5m(for Single color/high voltage) / H05RN-F 4x0.75mm² L=0.5m(for RGB) |
|

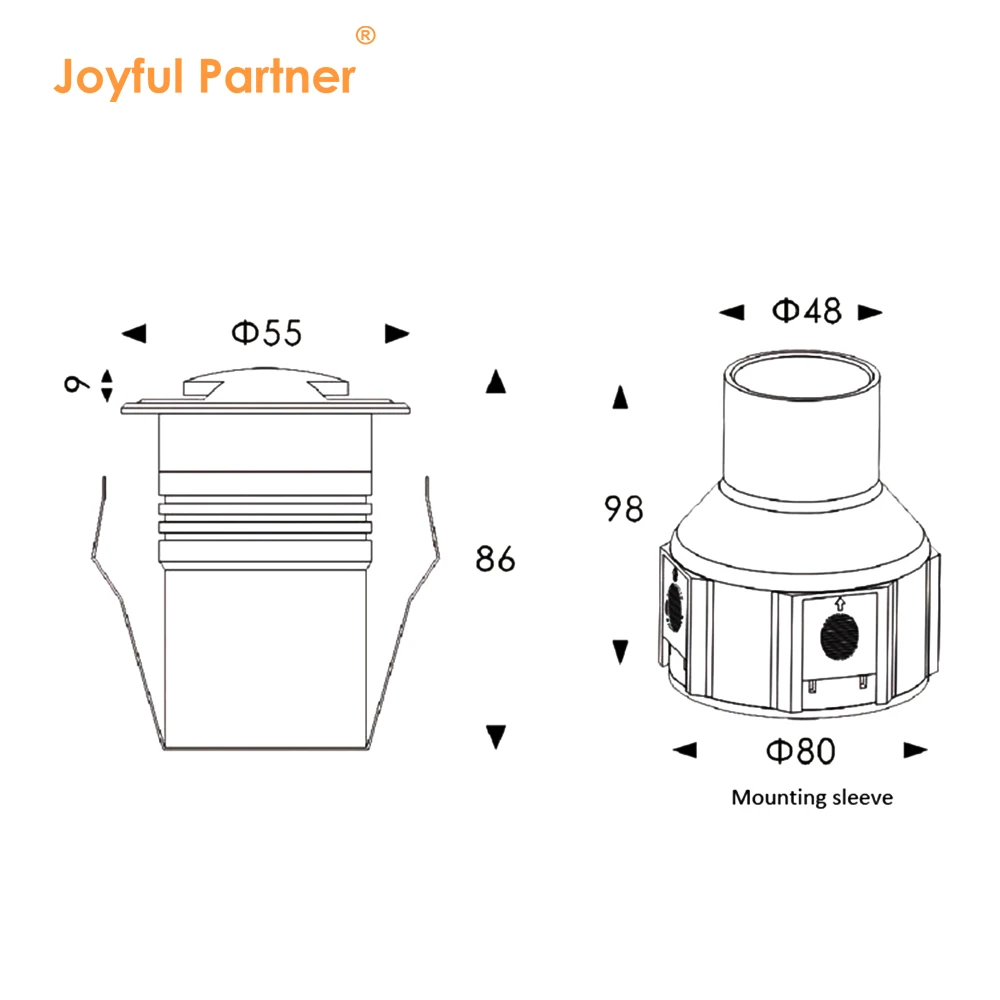

Mounting sleeve |
ABS |
